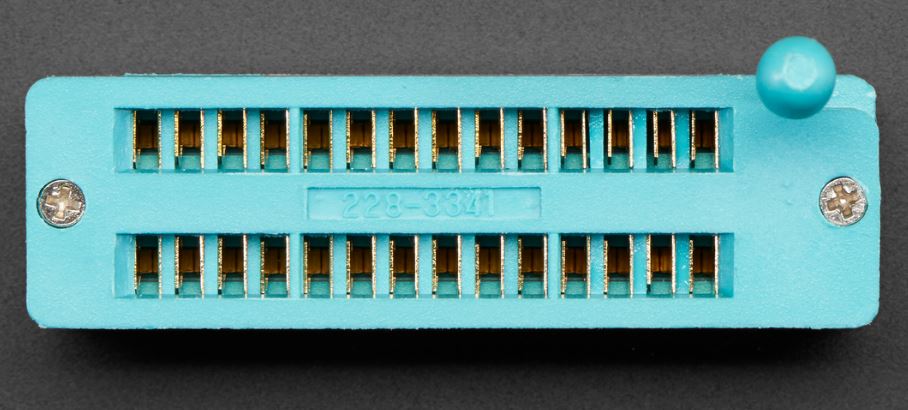

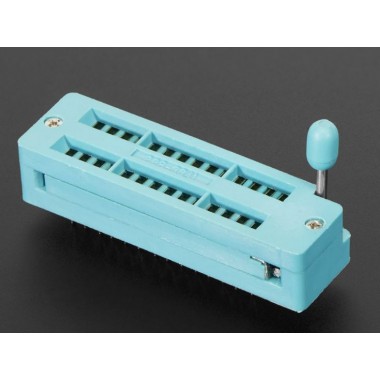

28 pin ZIF socket
Zócalo con fuerza de inserción cero (ZIF), puede utilizarse como parte de un programador de microcontroladores. Diseñado para chips DIP de hasta 28 pines.
COD: D000382
Peso: 0.000 Kg
Disponibilidad: Sin Stock
ARS 7059.00
El producto no está disponible para la venta en este momento
Características
-
DESCRIPTION

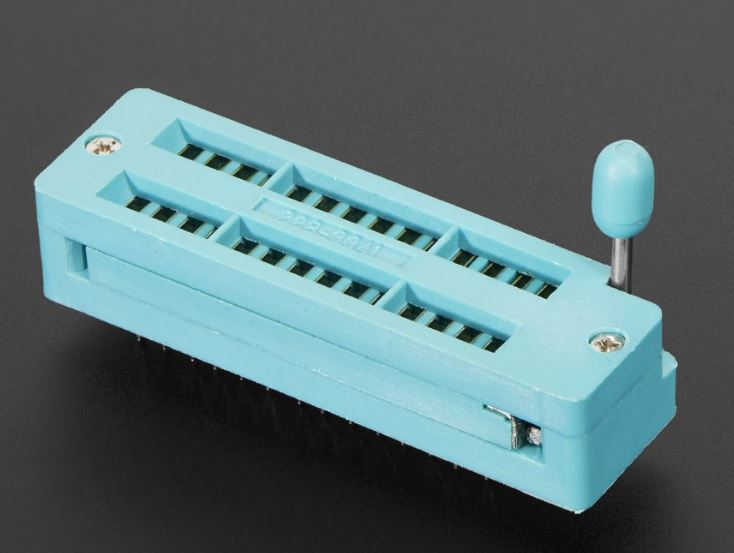

A ZIF (Zero Insertion Force Socket) allows you to insert and remove chips easily from an existing circuits. These are often used for chip programmers or when you need to test a chip without damaging it. Move the lever up and chips drop right in. Move the lever down to 'latch' the chip in place.

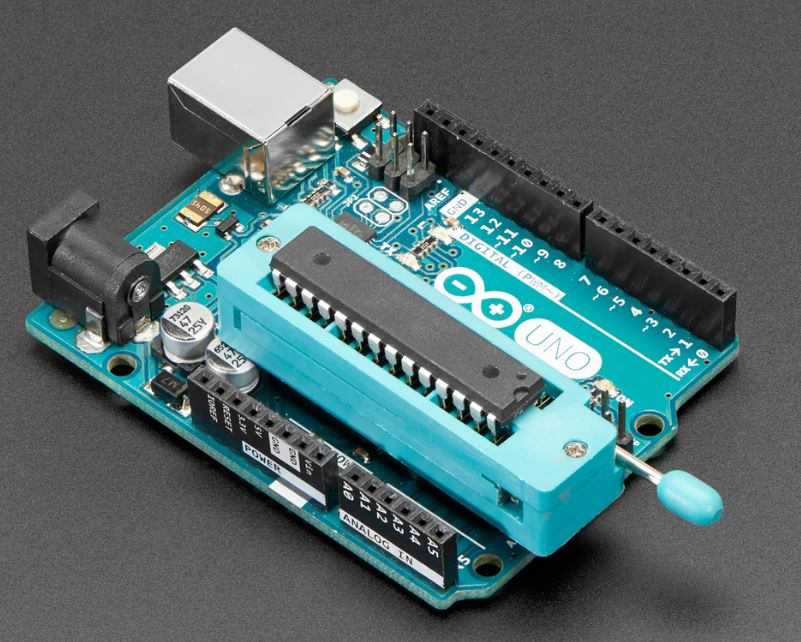

This socket is designed for DIP chips of up to 28 pins and 0.3" wide. What's nice about it is it can snap into an existing circuit board or socket that is designed for the chip so you may not have to redesign the board! For example, we snapped it into an Arduino socket, which would allow you to change chips out
-
TECHNICAL DETAILS
Fits up to 28-pin DIP chips, in 0.3" width

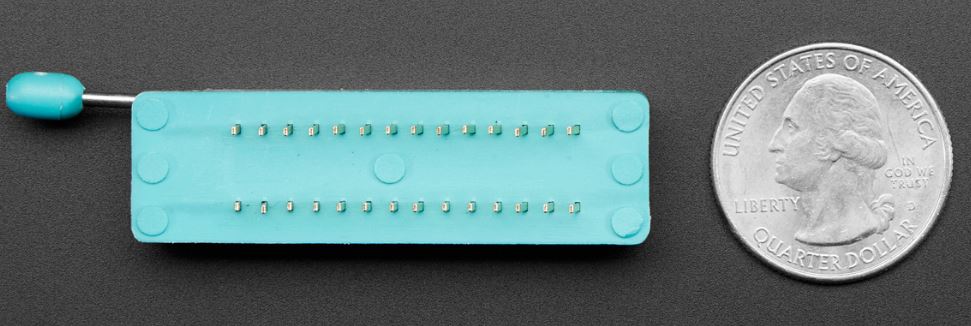

Overall body size: 0.6" x 2" x 0.43" (15mm x 50mm x 11mm) - not including lever or pins
Pins are 0.3" apart (fit into a 0.3" socket) and 3.6mm (0.15") long
We have a tutorial on using ZIF sockets to make a mass-programmer
