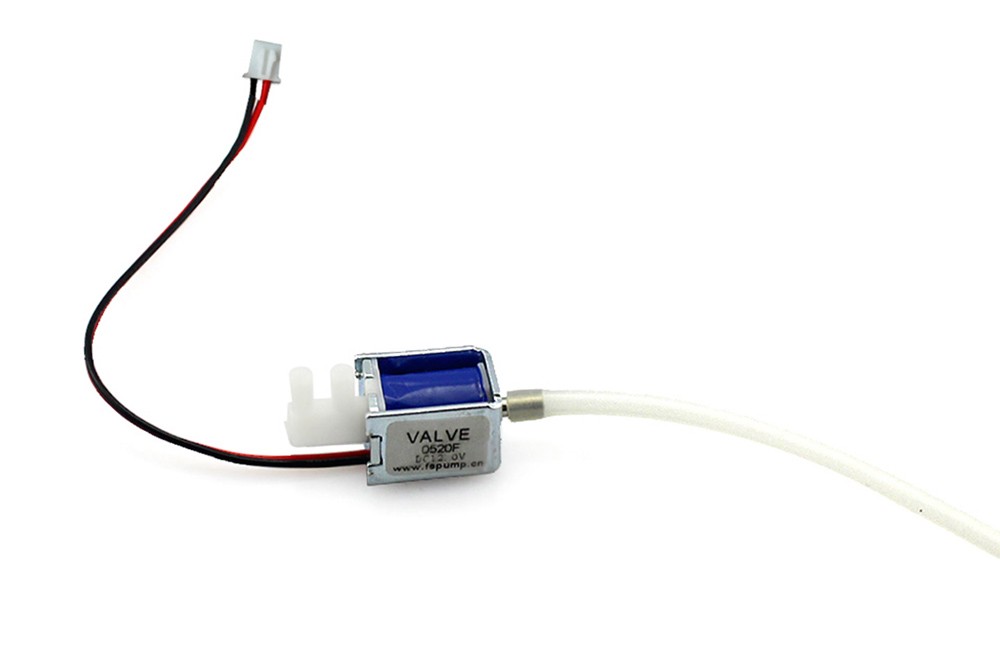

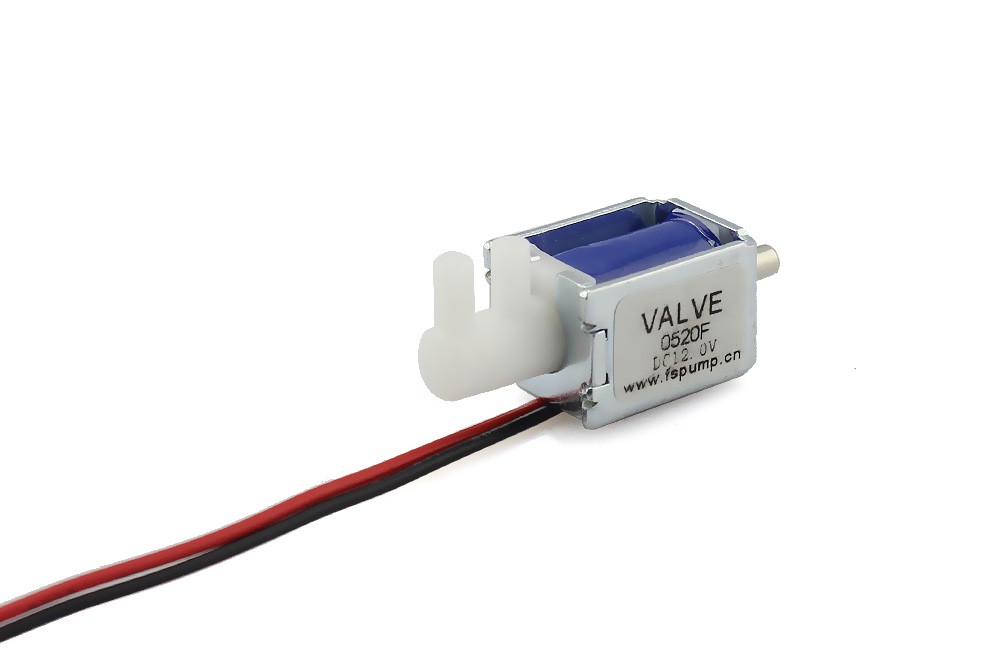

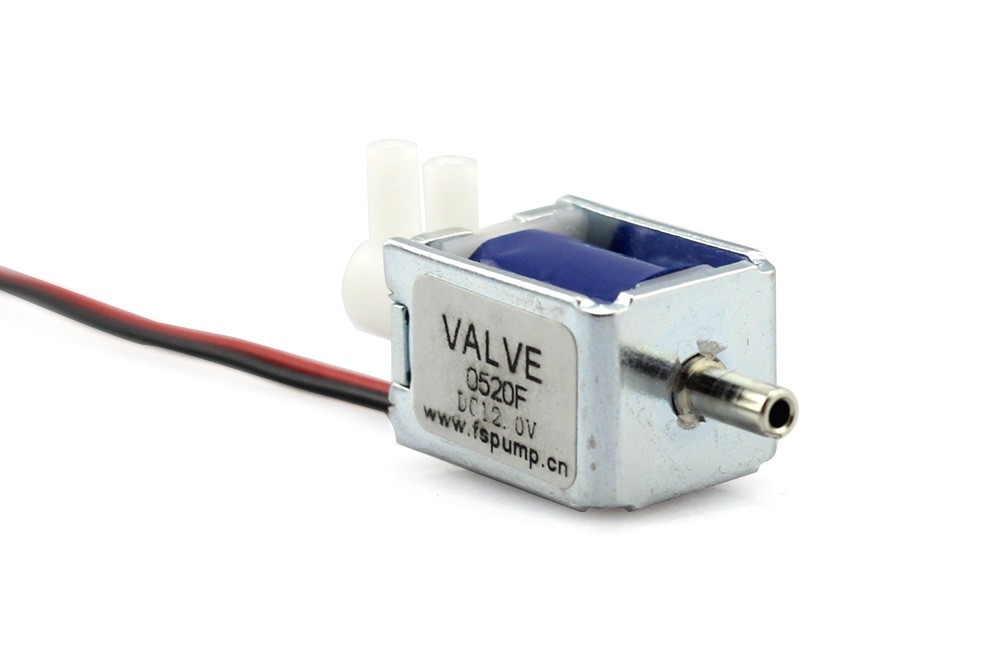

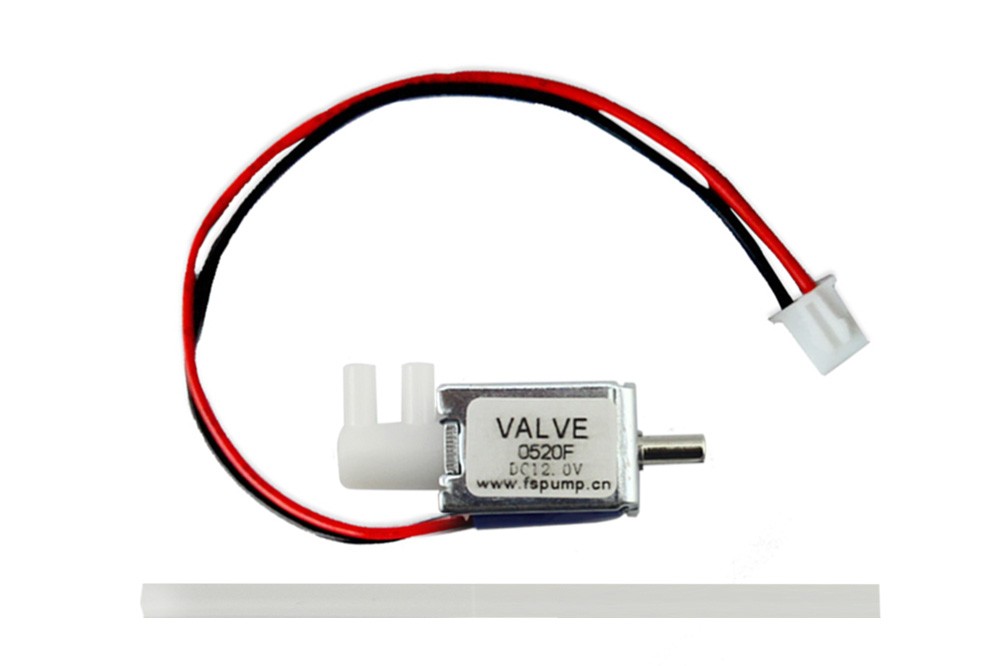

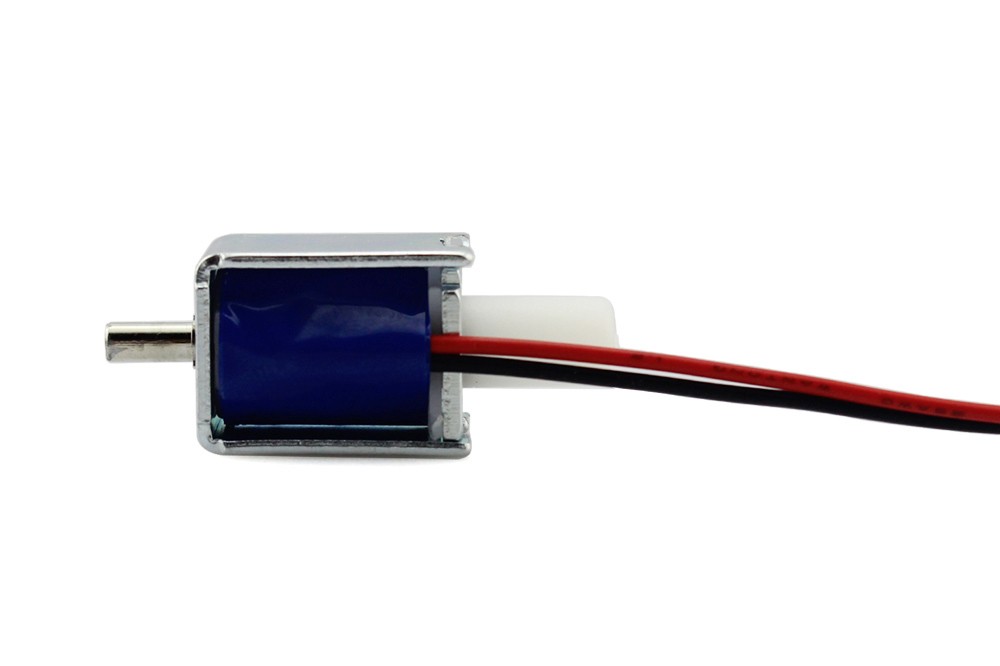

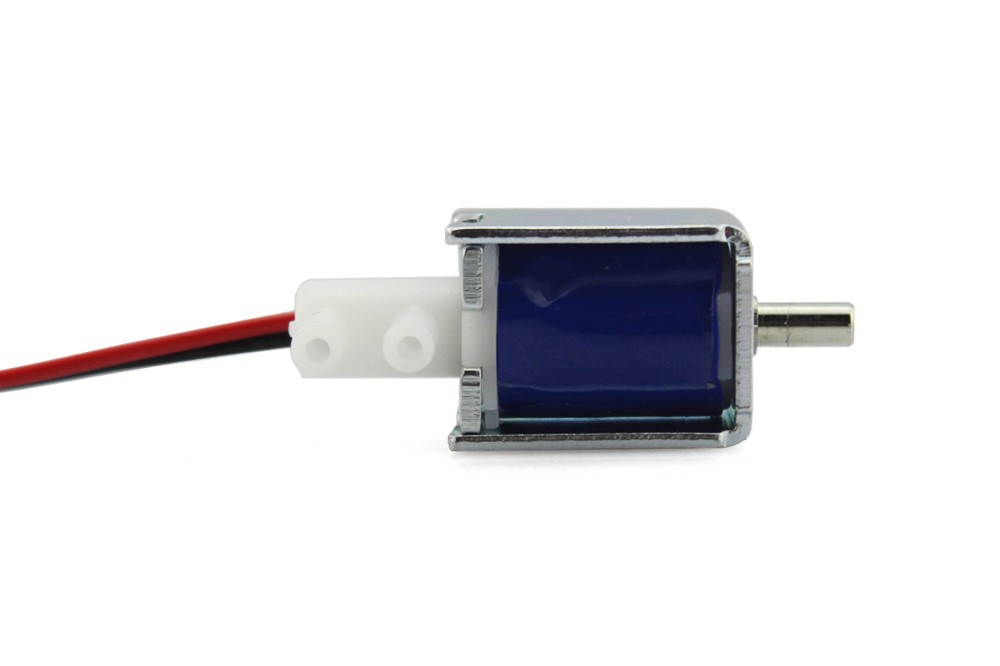

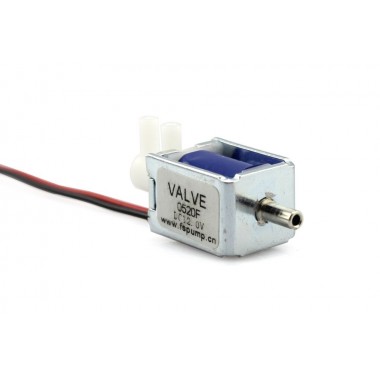

Electric 2-Position 3 Way 12V Micro Solenoid Valve for Gas

Principal

Micro válvula solenoide para gases con 2 posiciones y 3 vías de 12 voltios

COD: EACS23012V

Peso: 0.020 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 5151.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

This is a miniature solenoid valve, it has 6v / 12v / 24v three versions, is a multi-purpose solenoid valve, belonging to two three-way solenoid valve type,It has small size with long service life. Operating temperature range is stable, low noise, mainly used in medical equipment, automation machinery, toys Products, massage products.

product_name



Specifications

  • Rated voltage: DC6.0V ;DC12.0V; DC24.0V
  • Rated current:
  • Pressure range: 0-350mmhg
  • Tightness: After the inflation pressure is 0 to 300 mmHg in the 500CC container, the pressure drop is less than 5mmHg / min after 30 seconds.
  • The use of fluid: AIR
  • Life: 500CC container, the inflatable 10 seconds 5 seconds for a loop exhaust test more than 50,000 times
  • Operating temperature range: 0 �?? ~ 55 �??
  • Noise: 5cm under the pump pad of the sponge, from the noise meter 30cm Department (<60dB).
  • Power: <2w

Package list

  • Electric 2-Position 3 Way 12V Micro Solenoid Valve for Gas x1
