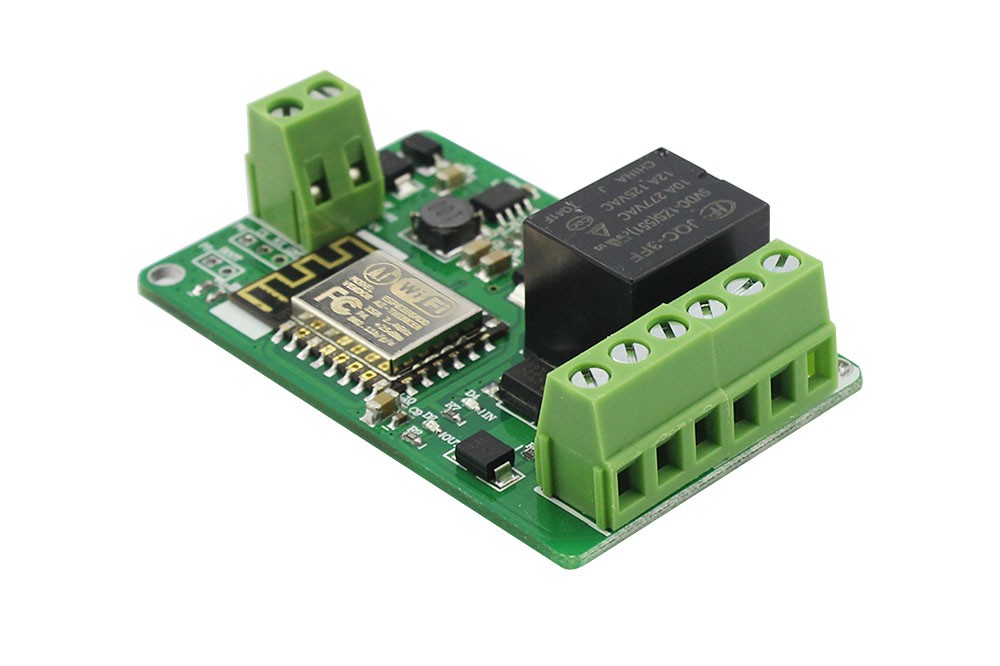

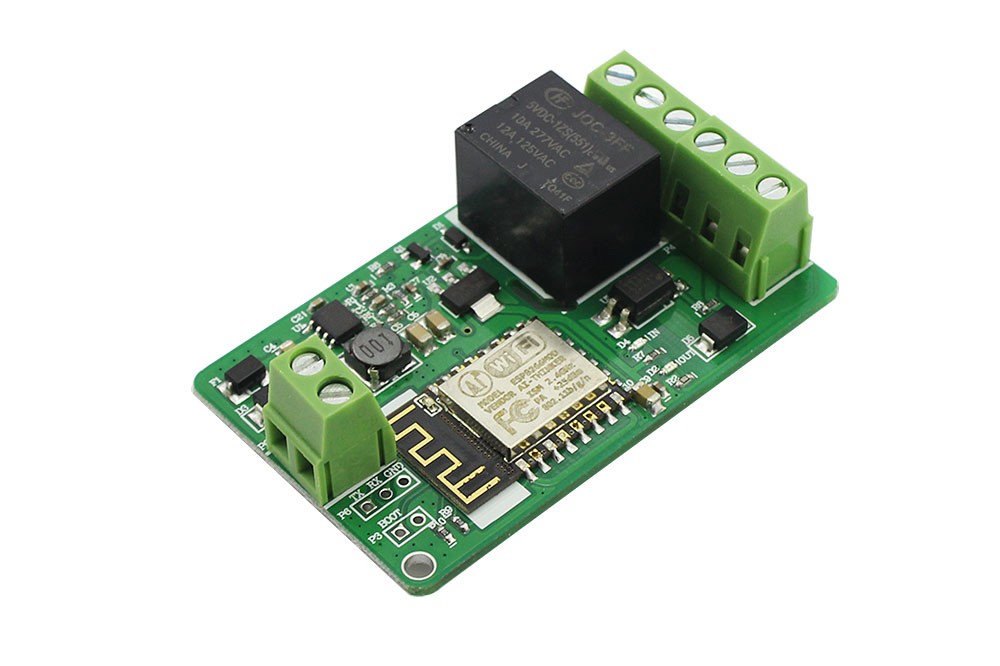

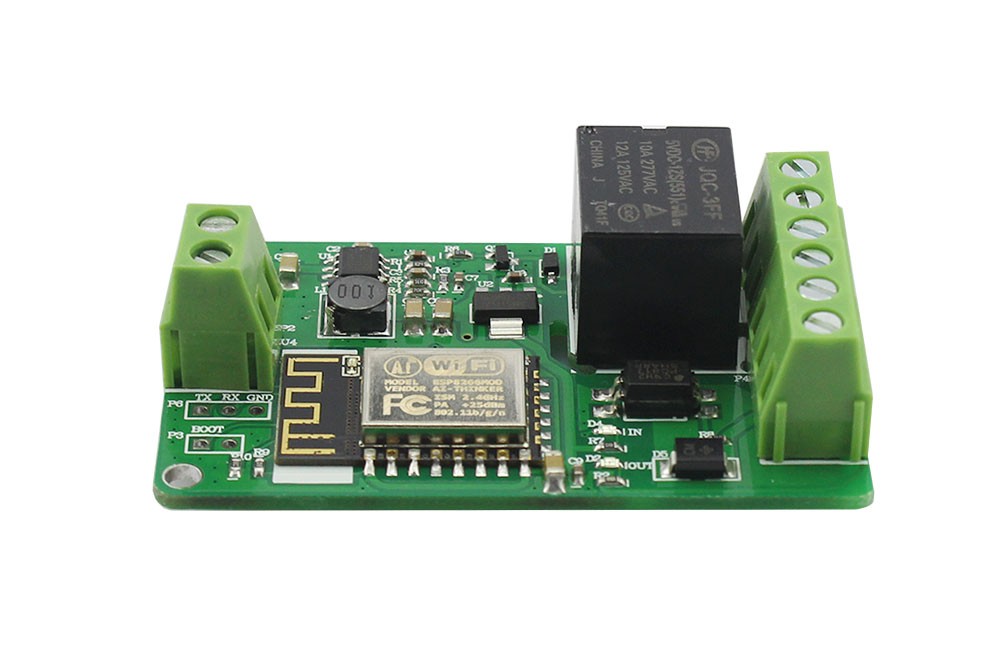

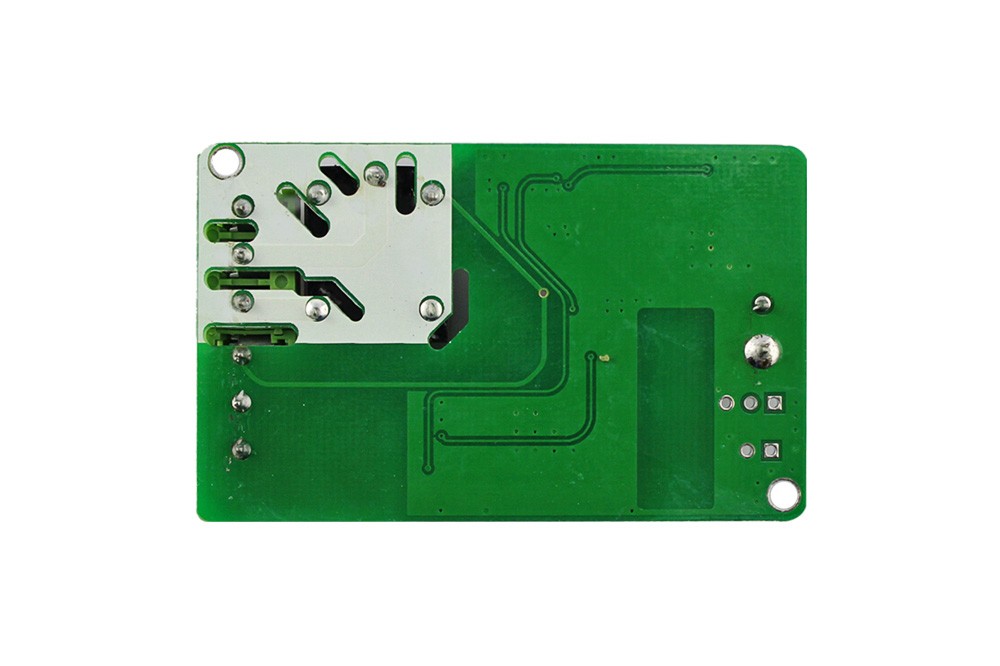

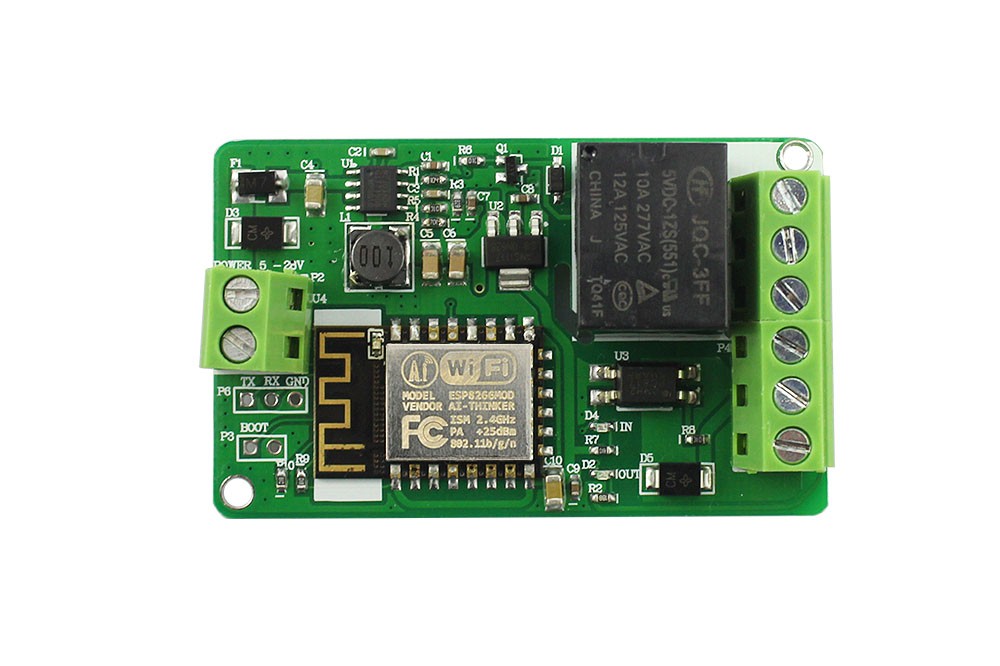

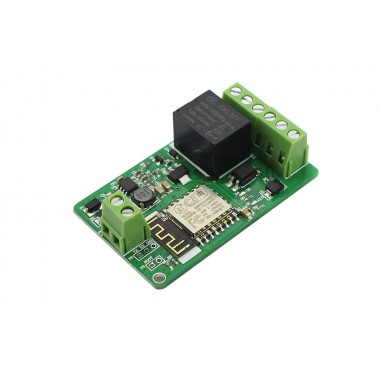

ESP8266 10A 220V Network Relay WIFI Module Input DC 7V~30V
Módulo que integra un relé y un ESP8266. Ideal para proyectos de automatización a través de IoT (Internet of Things).
COD: EACR08266R
Peso: 0.030 Kg
Disponibilidad: En Stock
ARS 24802.00
El producto no está disponible para la venta en este momento
Características
We ‘d like to see something help us to have a nice home automation application, or develop some smart home products, this ESP8266 10A 220V Network Relay WIFI Module will take charge of your electrical equipment by WIFI control.
In addition to the remote control of this relay has the advantage, it also has a wide input voltage range(DC7V-DC30V), and input over-voltage protection, input with TVS, as long as the input voltage exceeds 33v, it will automatically protect. Similarly, the input current exceeds a certain value will turn on automatic protection. The circuit board has an output status indicator and an input status indicator. It can be accessed through the TCP client server control can also be controlled through the HTTP protocol, the control of diverse and easy to operate.
Features
- More safe with relays PCB pin anti-climb design.
- With ESP8266 Wifi module,4-layers board design.
- One output status indicator, one input status indicator.
- 220V 10A relay, one normally open, one normally closed.
- One way optocoupler isolation input, TVS input protection.
- Access control server via TCP CLIENT mode Via HTTP protocol control.High-current terminals.
- Input overvoltage protection, input with TVS, when voltage exceeds 33V, automatic protection will operate.
Specifications
- Input voltage: DC 7 V~30 V
- Relay voltage: 220 V
- Relay Current: 10 A
- ISM: 2.4 GHz
- PA:+ 25 dBm
- Input overvoltage protection: Yes
- Input overcurrent protection: Yes
- Size(L*W*H):65 x 40 x 18 mm
Package list

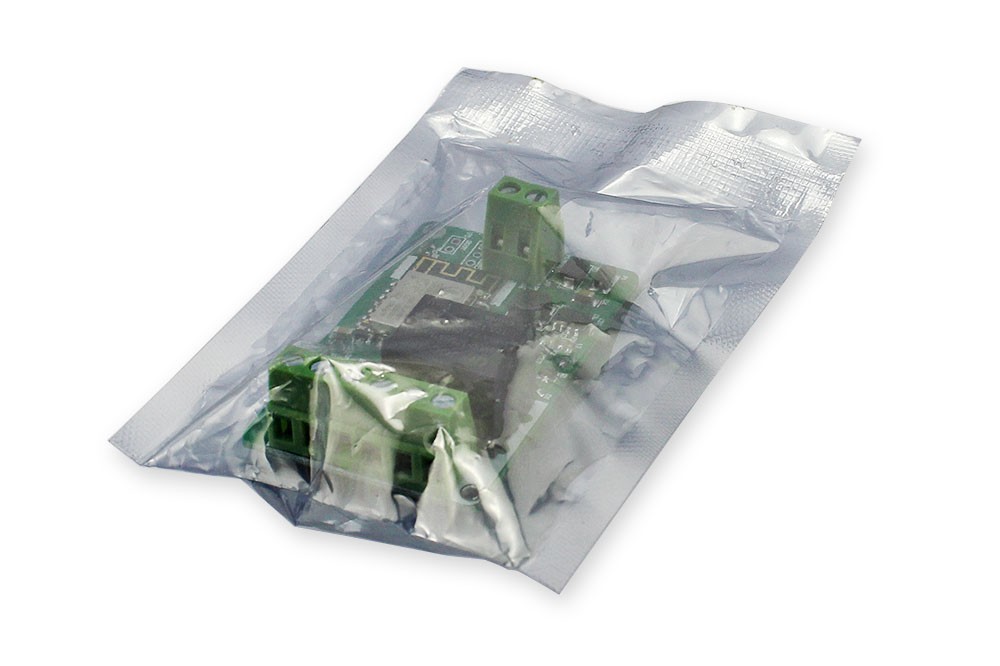

- ESP8266 10A 220V Network Relay WIFI Module x1
