1-way-12V flame sensor module With Relay Module
Modulo detector de incendios que incluye un relé
COD: FUT3021
Peso: 0.027 Kg
Disponibilidad: En Stock
ARS 7568.00
El producto no está disponible para la venta en este momento
Características
| Operating Voltage | 12VDC |
| Static current | more than 150mA |
| Load | 250V 10A AC or 30V 10A DC |
| Detection wavelength | 700 ~ 1000nm |
| External Size | 50x26mm; thickness: 19mm |

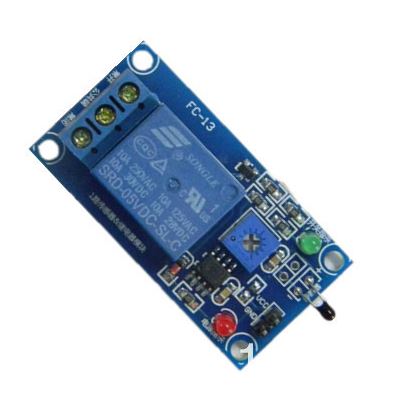

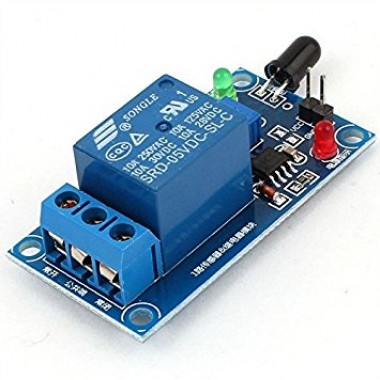

Product Description

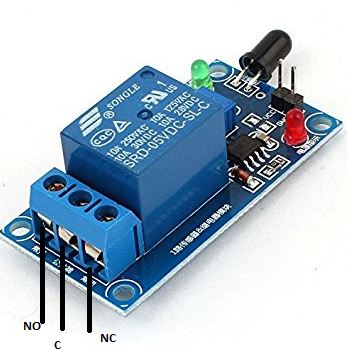

Various flame, fire detection, relay output, which can be accessed 220V high current electrical equipment
Module Features:
- sensitivity adjustable (shown in blue digital potentiometer adjustment)
- the comparator output directly triggers the relay
- external dimensions: 50x26mm, thickness 19mm, with fixed bolt hole for easy installation
