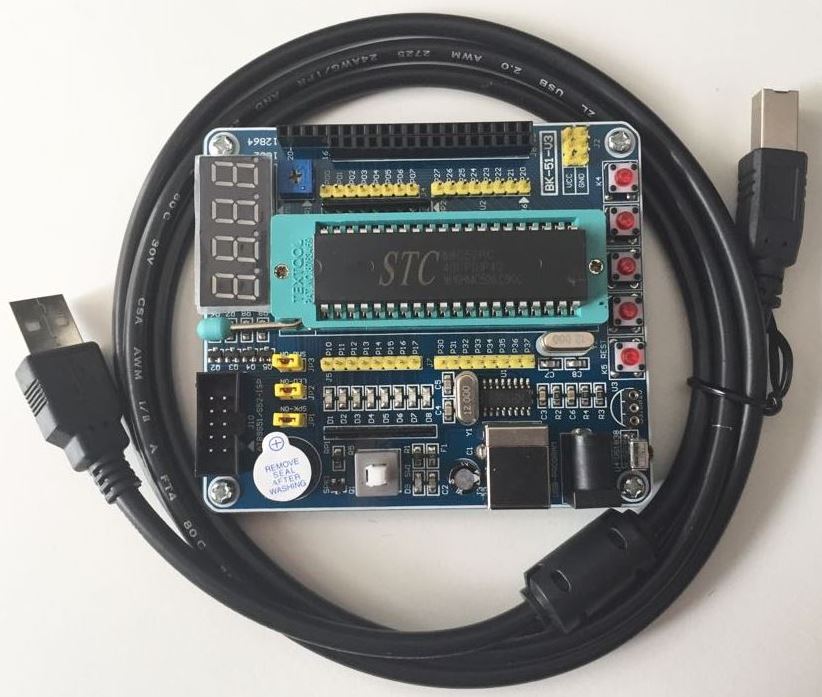

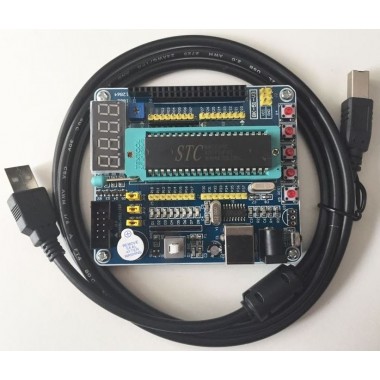

51 / AVR microcontroller development board
Placa de desarrollo basada en el microcontrolador AVR STC89C52RC-40i. Incluye display led, buzzer, comunicación I2C, etc.
COD: FUT6017
Peso: 0.150 Kg
Disponibilidad: En Stock
ARS 33959.00
El producto no está disponible para la venta en este momento
Características
Specifications:
- Color: Black + Blue + Red.
- Material: Plastic + iron.
- 8-digit SMD LED light.
- 4-digit digital tube display.
- LCD1602 and LCD12864 ports.
- 1-way passive buzzer.
- 1-way ds18b20 temperature measuring circuit.
- 1-way IR circuit.
- 4-way independent button.
- 1-way PL2303USB communication circuit.
- Supports USB program download (STC52).
- Supports AT89S51, AT89S52 MCU download.
- Power supply: USB port, external 5V power source (not included).
- Reset mode: Power-on Reset, 51/AVR reset.
- Tantalum capacitor design.
- USB cable length: 130cm.
Aditional Information:
Dimensions: 3.54 in x 3.03 in x 0.98 in (9.0 cm x 7.7 cm x 2.5 cm).
Weight: 2.72 oz (77 g).
