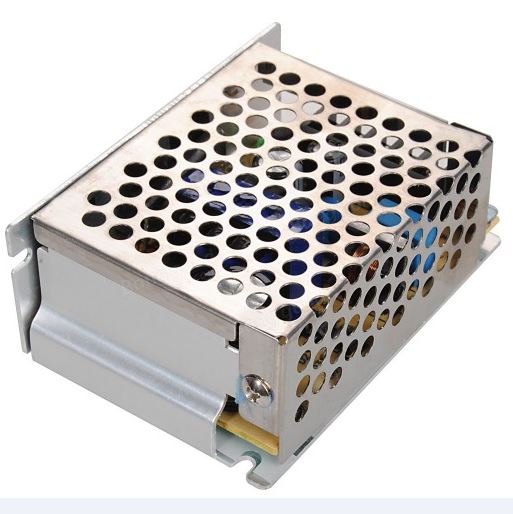

5V 6A 30W Power Supply for LED Strip
Fuente conmutada con salida 5V - 6A - 30W, ideal para alimentar tiras de LEDs digitales de 5V.
COD: HTHR0281-3
Peso: 0.200 Kg
Disponibilidad: Sin Stock
ARS 15045.00
El producto no está disponible para la venta en este momento
Características
Description:
Shell Material: Metal case / Aluminum base
Protection: Shortage Protection, Overload Protection, Over Voltage Protection
Widely used in Industrial automation, LED display, communications, etc.
Safety Compliance: CCC/ FCC / CE
Working Temperature: 0~40 ºC
Storage Temperature: -20~60 ºC
Ambient Humidity: 0~95% Non-Condensation
IN-DOOR USE ONLY!
Shell Material: Metal case / Aluminum base
Protection: Shortage Protection, Overload Protection, Over Voltage Protection
Widely used in Industrial automation, LED display, communications, etc.
Safety Compliance: CCC/ FCC / CE
Working Temperature: 0~40 ºC
Storage Temperature: -20~60 ºC
Ambient Humidity: 0~95% Non-Condensation
IN-DOOR USE ONLY!
This Power Supply Unit "DOES NOT" come with installation instruction, wiring cable, on/off switch, or screws. Professional installation of qualified electrician is highly recommended.
How to calculate Support max LED Strip Length:
Assumption: Your LED Strip 60LEDs/m, and each LED 0.2W, then calculate max LED Strip Length: 0.2W/LED × 60LEDs/m=12W/m, 24W(this listing)÷12W/m=2m, So, Support the LED Strip(60LEDs/m, 0.2W/LED) Length (Max)=2m
light
Specification:
| Type(Output Voltage,Output Current, Wattage) | Size | Intput Voltage |
| 5V 6A 30W | 110mm*78mm*35mm | 85-265V |
