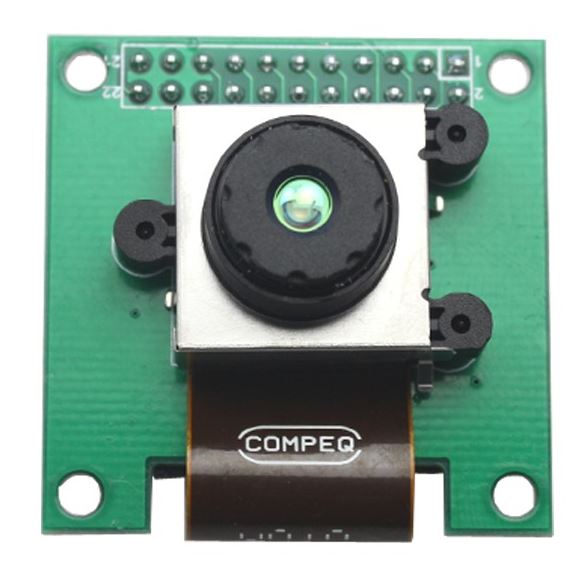

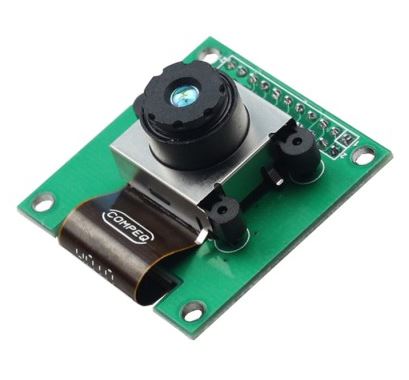

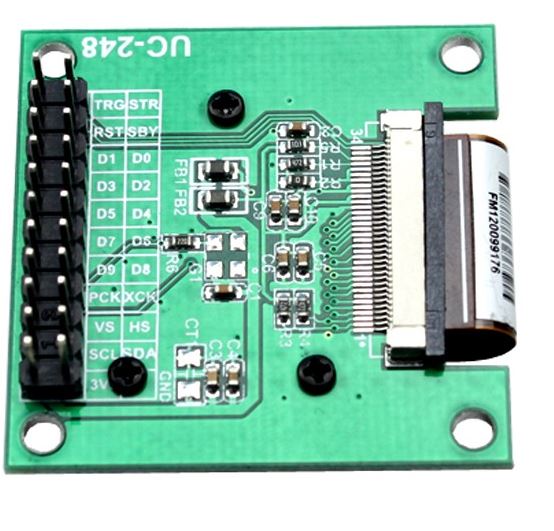

MT9M001 1.3Mp HD CMOS Infrared Camera Module with Adapter board
Módulo cámara infrarroja de 1.3 MP HD basada en el sensor MT9M001. Posee interfaz I2C.
COD: UCB0063
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 44516.00
El producto no está disponible para la venta en este momento
Características
Features:
- Microsoft xbox360 Kinect original monochrome infrared camera module
- Maxim resolution 1280 x 1024 SXGA at 30 fps
- Maxim frame rate 30fps
- Shutter type: Electronic rolling shutter (ERS)
- Optical size 1/2"
- ADC resolution 10-bit
- Supports image sizes: SXGA, VGA, QVGA, CIF, QCIF, etc
- Extreme High sensitivity for low-light operation
- Low operating voltage for embedded portable apps
- Standard I2C two wire interface
- Digital Video Port interface

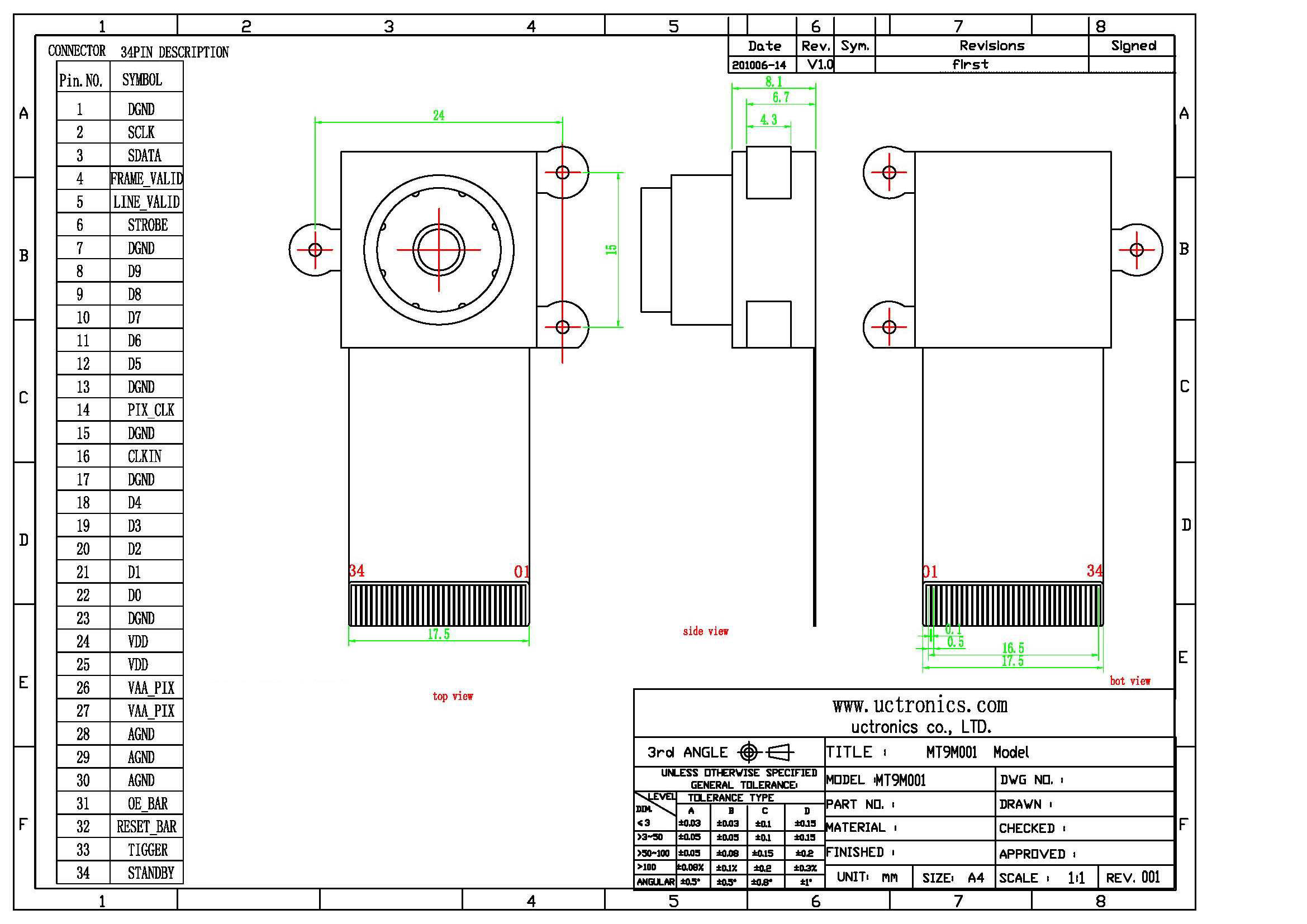

- 34 pin golden finger FPC cable connector
- Easy intergrate with STM32,FPGA,DSP,Arduino etc.
