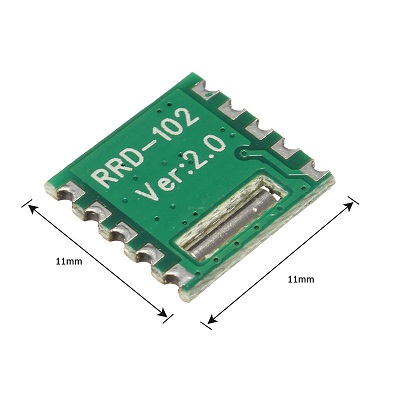

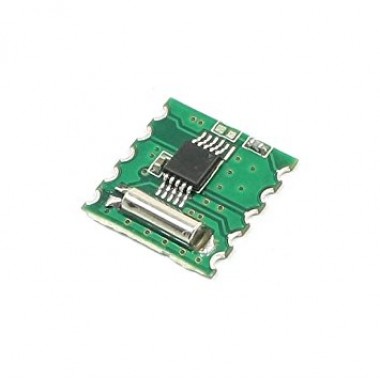

FM Stereo Radio Module RDA5807M RRD-102V2.0 Wireless for Arduino

FM Stereo Radio Module RDA5807M RRD-102V2.0 Wireless for Arduino

Módulo FM Stereo Inalámbrico muy compacto. Basado en el RDA5807M, el cual ofrece un rango de frecuencia de entre 50MHz y 115MHz. Posee además una muy buena calidad de sonido digital. Puede ser utilizado para armar tu propia radio FM!.Sólo necesita de algunos componentes externos.

COD: UCU0024

Peso: 0.001 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 5851.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

  • The RDA5807M series is the newest generation single-chip broadcast FM stereo radio tuner with fully integrated synthesizer, IF selectivity, RDS/RBDS and MPX decoder.
  • The tuner uses the CMOS process, support multi-interface and require the least external component. All these make it very suitable for portable devices.
  • The RDA5807M series has a powerful low-IF digital audio processor, this make it have optimum sound quality with varying reception conditions.
  • The RDA5807M series support frequency range is from 50MHz to 115MHz.

Features:

  • Low power consumption:Total current consumption lower than 20mA at 3.0V power supply when under normal situation.
  • Support worldwide frequency band:50 -115 MHz.
  • Support flexible channel spacing mode:100KHz, 200KHz, 50KHz and 25KHz.
  • Support RDS/RBDS.
  • Digital low-IF tuner.
  1. Image-reject down-converter.
  2. High performance A/D converter.
  3. IF selectivity performed internally.
  • Fully integrated digital frequency synthesizer.
  1. Fully integrated on-chip RF and IF VCO.
  2. Fully integrated on-chip loop filter.
  • Autonomous search tuning.
  • Support 32.768KHz crystal oscillator.
  • Digital auto gain control (AGC).
  • Digital adaptive noise cancellation.
  • CMOS single-chip fully-integrated FM tuner.
  1. Mono/stereo switch.
  2. Soft mute.
  3. High cut.
  • Programmable de-emphasis.
  • Receive signal strength indicator (RSSI) and SNR.
  • Bass boost.
  • Volume control and mute.
  • Line-level analog output voltage.
  • 32.768 KHz 12M,24M,13M,26M,19.2M,38.4MHz.
  • Reference clock.
  • Only support 2-wire bus interface.
  • Directly support 32Ω resistance loading.
  • Integrated LDO regulator:1.8 to 3.3 V operation voltage.
  • MSOP-10pins.
Applications
  • Cellular handsets.
  • MP3, MP4 players.
  • Portable radios.
  • PDAs, Notebook.

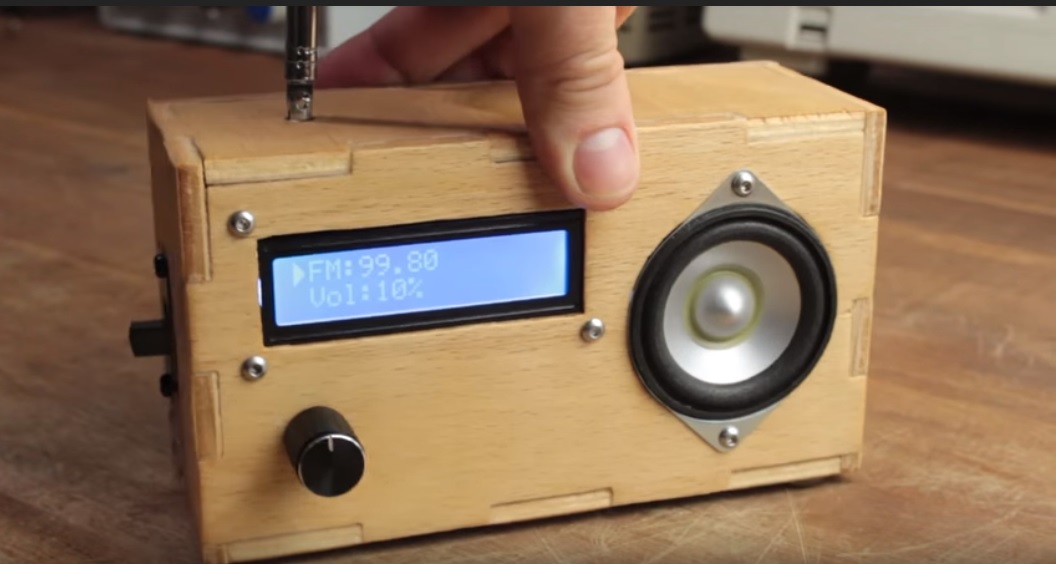

Make your own FM Radio!!!: https://www.youtube.com/watch?v=RqyhvlMKt14



Package Including:

  • 1pcs FM Stereo Radio Module  RDA5807M RRD-102V2.0 Wireless for Arduino.
