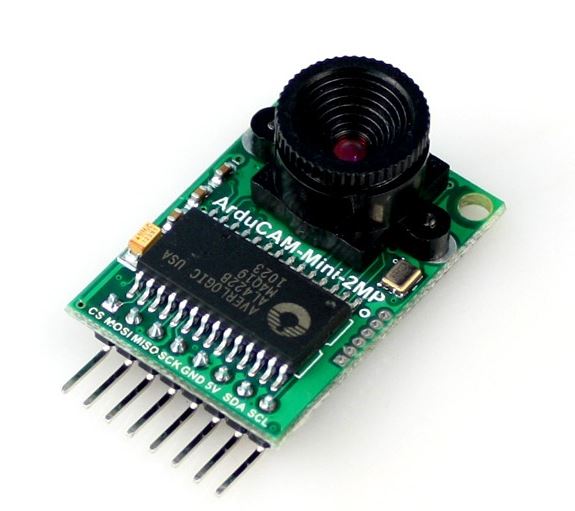

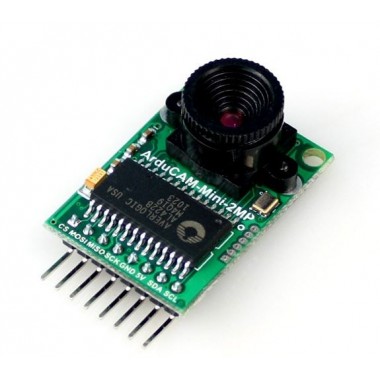

Arducam Mini module Camera Shield w/ 2 MP OV2640 for Arduino UNO Mega2560 board
Módulo que incluye una cámara de 2MP con interfaz SPI. Puede ser utilizado con Arduino UNO y MEGA, Raspberry y otras plataformas de desarrollo. Ideal para robots que requieran de cámaras entre otras aplicaciones.
COD: UCB0067
Peso: 0.050 Kg
Disponibilidad: Sin Stock
ARS 66137.00
El producto no está disponible para la venta en este momento
Características
Item Description:
ArduCAM-M-2MP is optimized version of ArduCAM shield Rev.C, and is a high definition 2MP SPI camera, which reduce the complexity of the camera control interface. It integrates 2MP CMOS image sensor OV2640, and provides miniature size, as well as the easy to use hardware interface and open source code library. The ArduCAM mini can be used in any platforms like Arduino, Raspberry Pi, Maple, Chipkit, Beaglebone black, as long as they have SPI and I2C interface and can be well mated with standard Arduino boards. ArduCAM mini not only offers the capability to add a camera interface which doesn’t have in some low cost microcontrollers, but also provides the capability to add multiple cameras to a single microcontroller.
Application:
- IoT cameras
- Robot cameras
- Wildlife cameras
- Other battery-powered products
- Can be used in MCU, Raspberry Pi, ARM, DSP, FPGA platforms
Features:
- 2MP image sensor OV2640
- M12 mount or CS mount lens holder with changeable lens options
- IR sensitive with proper lens combination
- I2C interface for the sensor configuration
- SPI interface for camera commands and data stream
- All IO ports are 5V/3.3V tolerant
- Support JPEG compression mode, single and multiple shoot mode, one time capture multiple read operation, burst read operation, low power mode and etc.
- Well mated with standard Arduino boards
- Provide open source code library for Arduino, STM32, Chipkit, Raspberry Pi, BeagleBone Black
- Small form of factor
Package Including:
- 1pcs Arducam Mini module Camera Shield w/ 2 MP OV2640 for Arduino UNO Mega2560 board
arducam_mini_2mp_camera_shield_ds.pdf (363 Kb)
