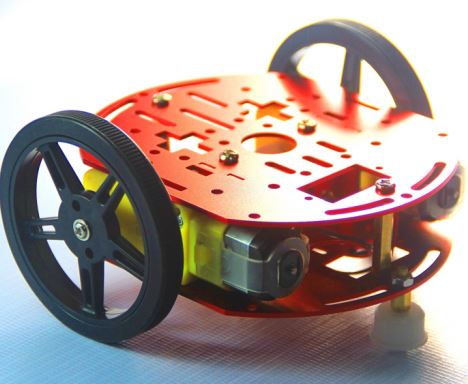

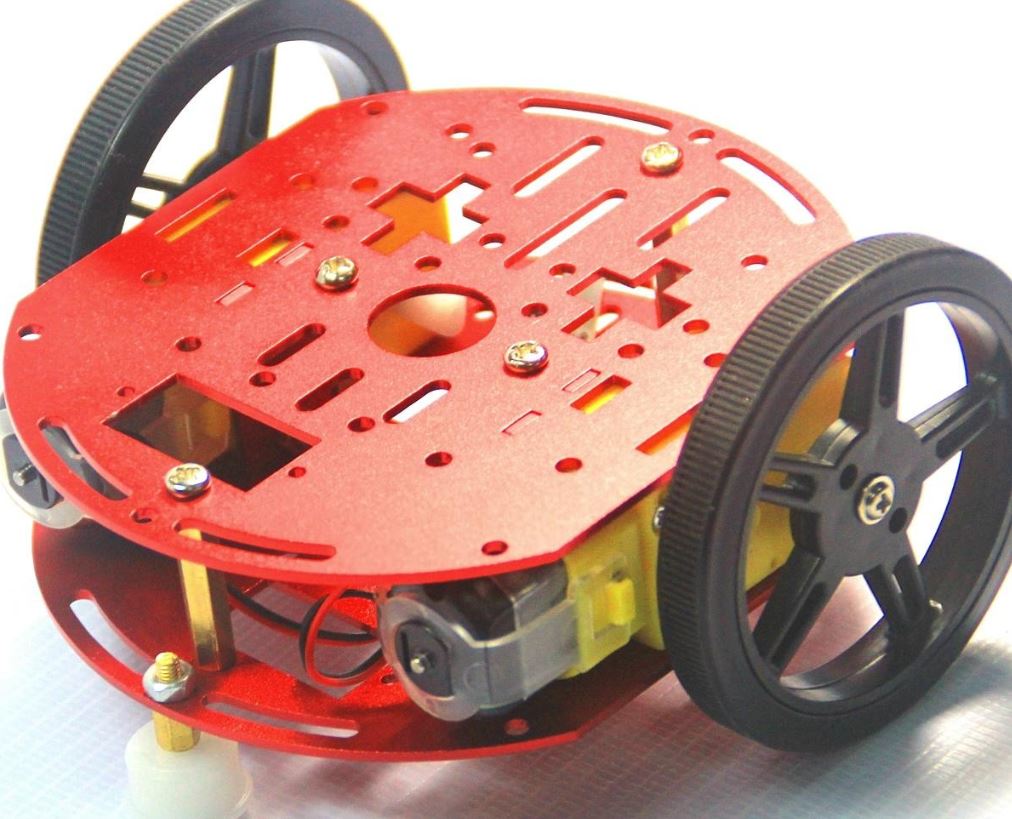

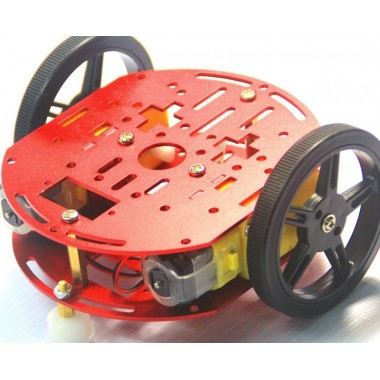

2WD Mini Smart Robot Mobile Platform Kit FT-DC-002
Mini robot plataforma móvil que utiliza dos motores DC para moverse. Compatible con Arduino, Raspbery Pi, etc. Ideal para aprender sobre electrónica, programación y robótica.
COD: ERPM15040C
Peso: 0.150 Kg
Disponibilidad: Sin Stock
ARS 31954.00
El producto no está disponible para la venta en este momento
Características

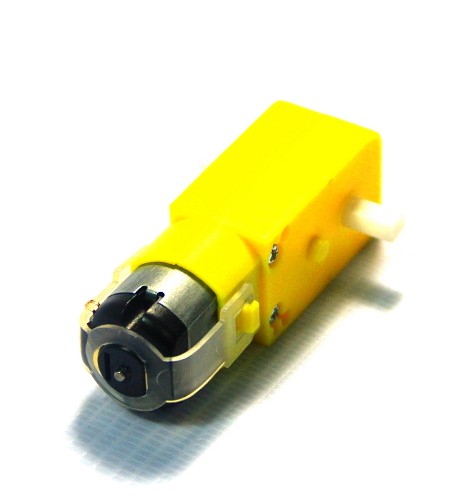

Mini Smart Robot Mobile Platform uses 2 DC motor gear box(1:48) to drive. High speed up to 200RPM,at 200mA/6V and 90rpm/150mA/3V.

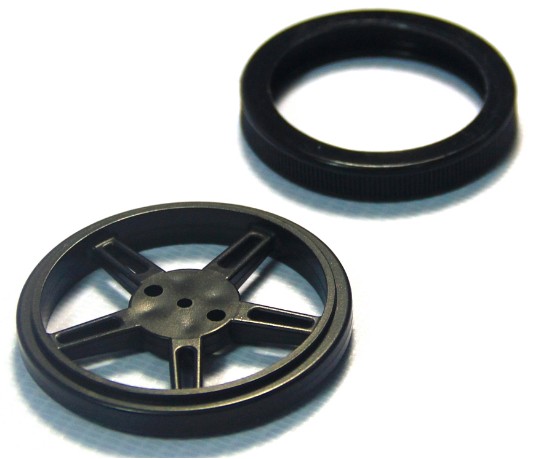

Two plastic wheels are press-fit onto DC motor gear box output gear shaft, and easy to make a nice drive solution for small robots. The wheels have silicone tires and measure 60mm (2.36″) in diameter.
This Mini Smart Robot Mobile Platform frame make with 5051 aluminum alloy and anodize color (The factory default is red. Can do other color if need. Mini Robot Mobile Platform can assembly with Arduino controller. Easy to add all kinds of sensor and let it to work at your idea. This is a good start kit for student.
Features
- All about fun and creativity
- Easy to assemble, an all-in-one solution for kids to improve the hands-on ability about programming, electronics, and robotics
- Enjoy the pleasure of DIY (add all kinds of sensors, infrared ray, free become to obstacle-avoidance car, line- following vehicle. Remote control car,etc), provides infinite possibilities
- Compatible with any controller, (Arduino, Raspberry Pi, Banana Pi, etc)
- All kinds of kits to meet different requirements
- Can add the encoder base on double DC motor box.
Specifications
- Size(L*W*H): 100mm*80mm*27mm
- Weight: 150g
- Drive: 2WD
- Frame: 1.5mm aluminum alloy structure, light weight and high strength
- Color: Red(other color if need)
- Work voltage: 3~6V

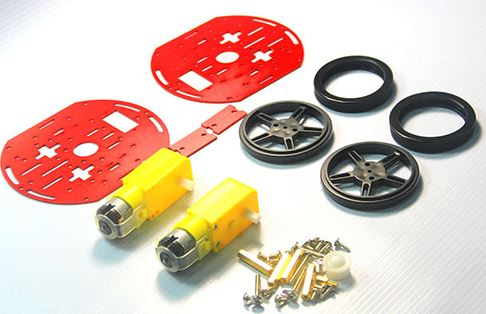

Package list
- 130 DC motor gear box x2
- FT-DC-W wheel x2
- Frame x 2 floor
- DC bracket x 2pcs
- Bull 's-eye bearing wheel x 1
- Screw kit x 1
