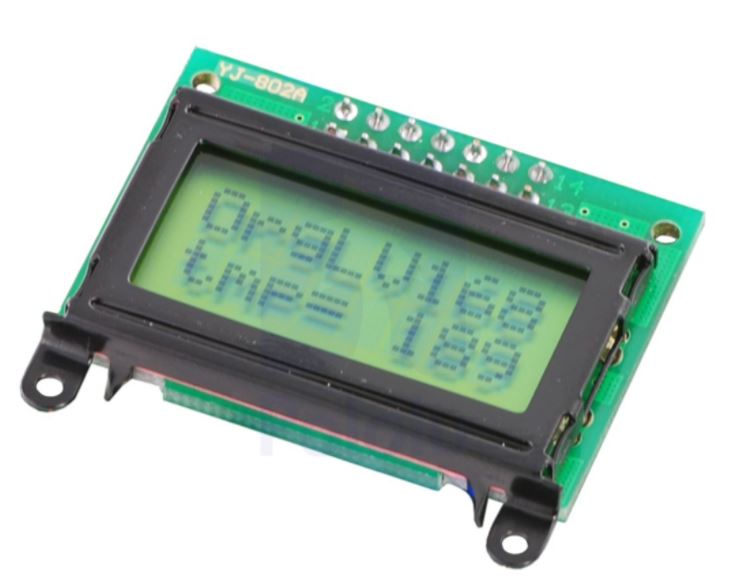

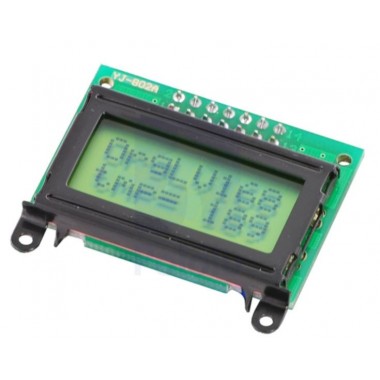

8x2 Character LCD - Black Bezel (Parallel Interface)
Display de 8 caracteres x 2 líneas, utiliza interfaz compatible con HD44780.
COD: P000356
Peso: 0.050 Kg
Disponibilidad: En Stock
ARS 21344.00
El producto no está disponible para la venta en este momento
Características
Overview
This little 8-character, 2-line parallel liquid crystal display is a generic equivalent of the Optrex DMC-50448N-AAE-AD LCD. It uses the common HD44780 interface, so sample interface code is widely available for a variety of microcontrollers. This is the smallest package we know of for this familiar interface.

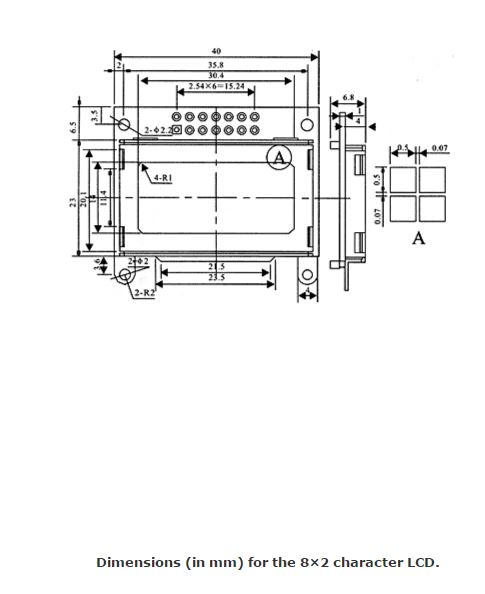

Pinout
Pin | Symbol | Function |
---|---|---|
1 | Vss | ground (0 V) |
2 | Vdd | 5 V logic supply voltage |
3 | Vo | contrast adjustment |
4 | RS | H/L register select signal |
5 | R/W | H/L read/write signal |
6 | E | H/L enable signal |
7-14 | DB0 – DB7 | H/L data bus for 4- or 8-bit mode |
