10:1 Micro Metal Gearmotor HPCB 6V

Principal

Motor miniatura DC de 6V con escobillas de carbón (mas duraderas) y con una caja de engranajes de relación 9.96:1.

COD: P003061

Peso: 0.150 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 36356.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

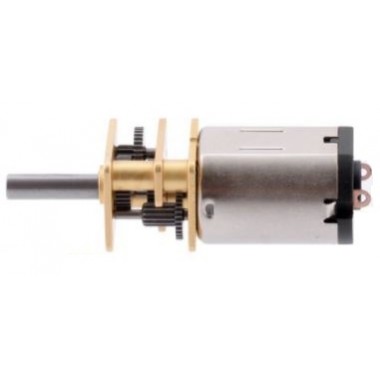

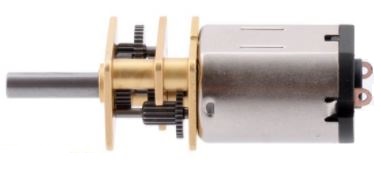

This gearmotor is a miniature high-power, 6 V brushed DC motor with long-life carbon brushes and a 9.96:1 metal gearbox. It has a cross section of 10 × 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter.

Overview

These tiny brushed DC gearmotors are available in a wide range of gear ratios—from 5:1 up to 1000:1—and with five different motors: high-power 6 V and 12 V motors with long-life carbon brushes (HPCB), and high-power (HP), medium power (MP), and low power (LP) 6 V motors with shorter-life precious metal brushes. The 6 V and 12 V HPCB motors offer the same performance at their respective nominal voltages, just with the 12 V motor drawing half the current of the 6 V motor. The 6 V HPCB and 6 V HP motors are identical except for their brushes, which only affect the lifetime of the motor.

Details for item #P003061

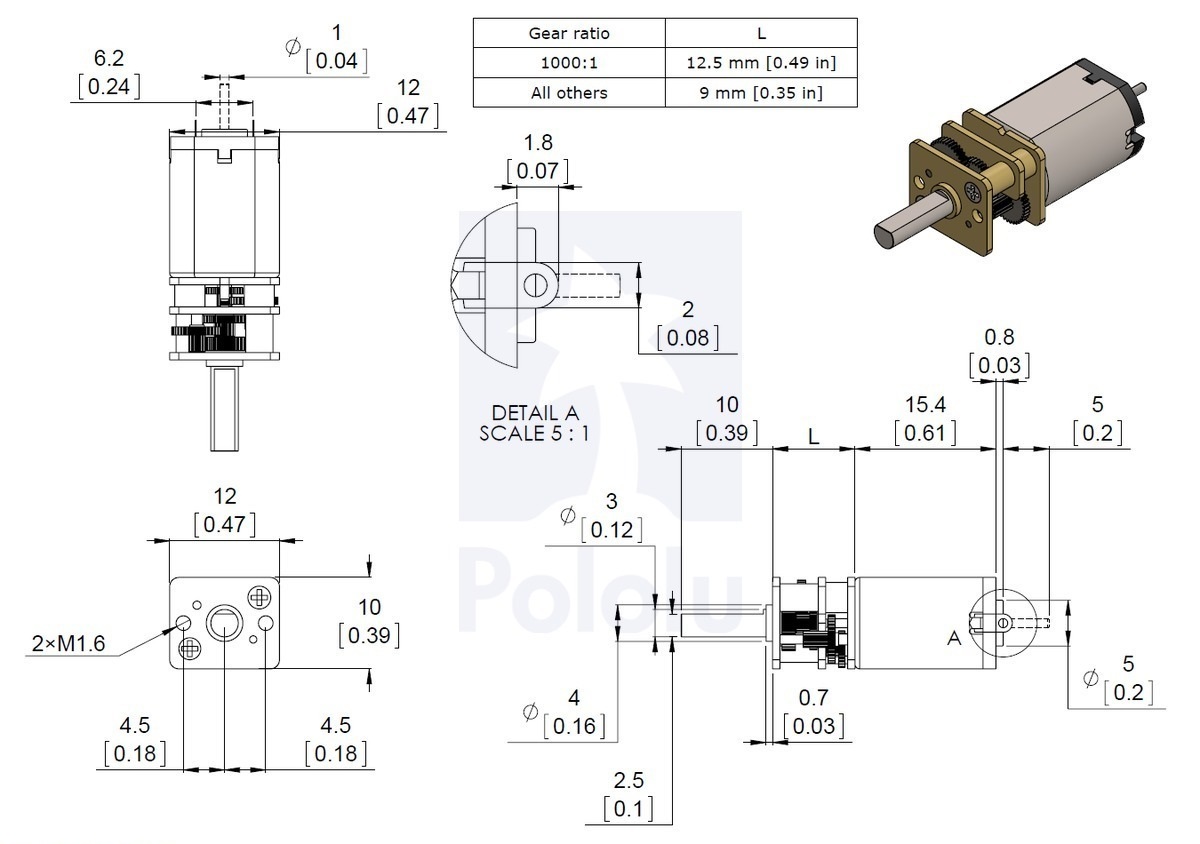

Dimensions

Size: 10 × 12 × 26 mm
Weight: 9.5 g
Shaft diameter: 3 mm

General specifications

Gear ratio: 9.96:1
Free-run speed @ 6V: 3000 rpm
Free-run current @ 6V: 120 mA
Stall current @ 6V: 1600 mA
Stall torque @ 6V: 4 oz·in
Extended motor shaft?: N
Long-life carbon brushes?: Y
Motor type: 1.6A stall @ 6V (HPCB 6V - carbon brush)





Interesting link : https://www.mathworks.com/matlabcentral/fileexchange/54695-polulu-motor-plot-generator
