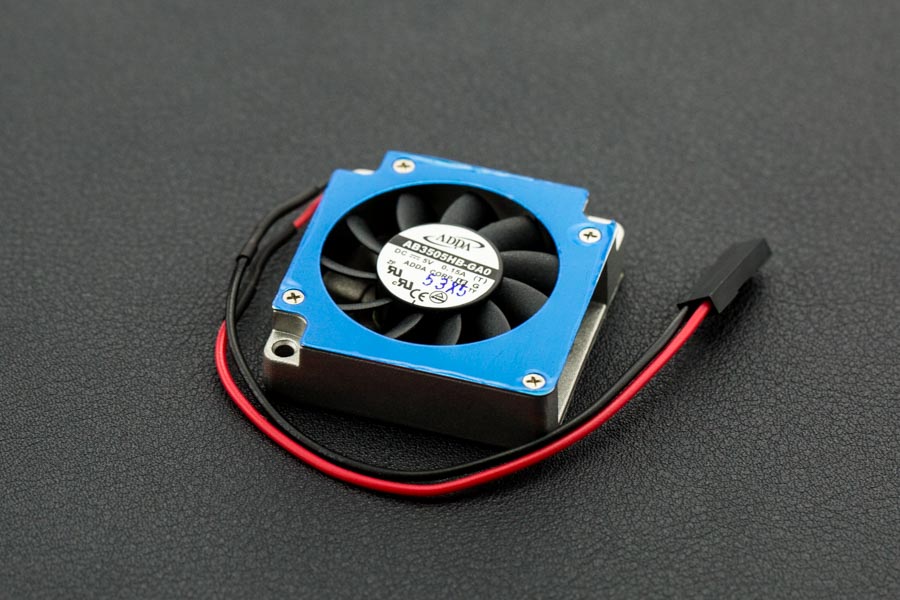

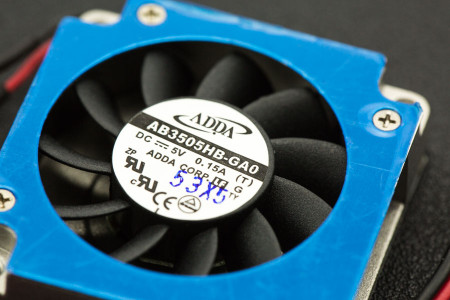

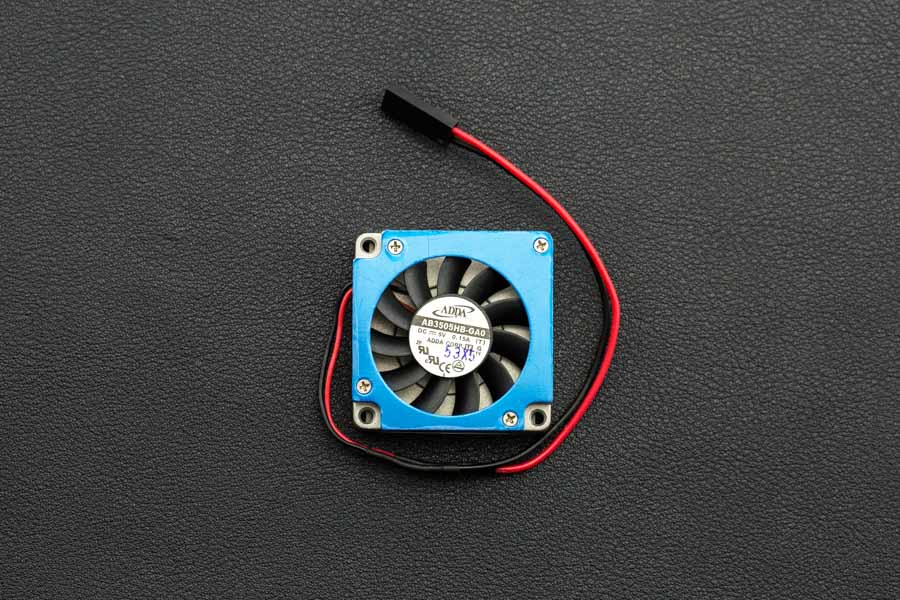

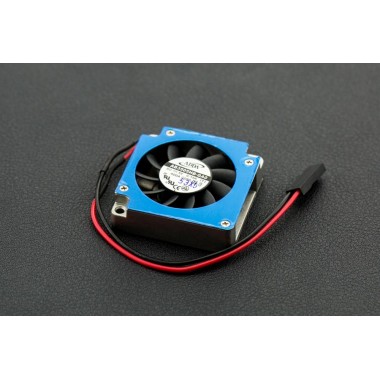

Aluminum Heatsink Cooling Fan for LattePanda

Vista_Principal

Combo cooler + disipador para la placa LattePanda.

COD: DFFIT0504

Peso: 0.012 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 31884.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

INTRODUCTION

Is your LattePanda running hot and throttling?

This heat sink and fan combo will cool the CPU for smooth performance.

The fan keeps the unit running at a stable temperature. The 2-Pin jumper wire makes it easily to connect with the CN2 headers on the board.

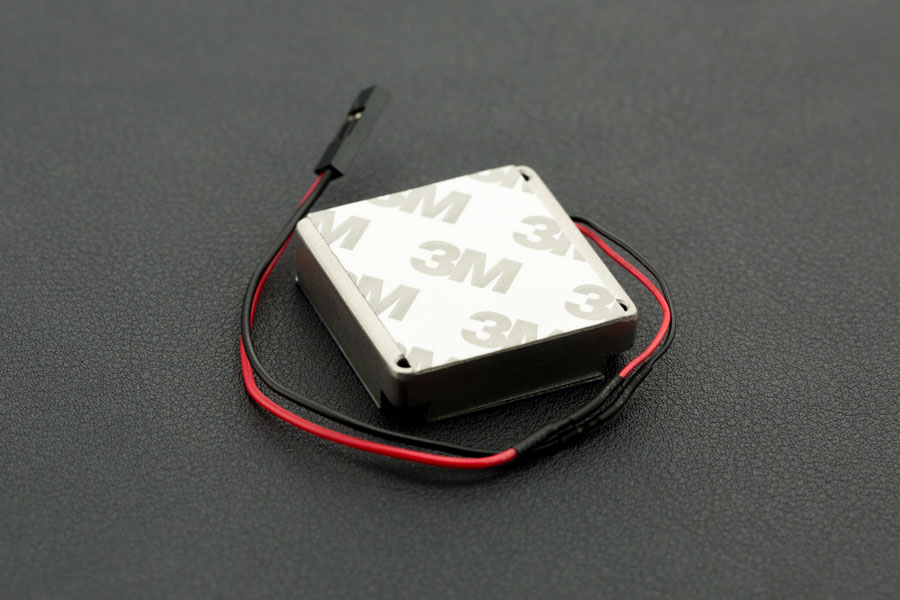

This fan is low noise and has a thermal pad on the back that can stick on the metal shield on the board. With its aluminum casing, heat from CPU will be absorbed fast, giving you better performance. This is a simple and effective way to make the LattePanda cool!



Note: Please pay attention to wire polarities
Red -> 5V
Black -> GND


SPECIFICATION

  • Operating Voltage: 5v
  • Operating Current: 0.14A
  • Rated Speed: 6500 RPM
  • Cable Length: 20cm
  • Interface Type: 2.54mm 2-Pin DuPont Female Connector
  • Dimension: 34.5 * 34.5 * 7.2 mm/1.36 * 1.36 * 0.28 inches
  • Weight: 12g

SHIPPING LIST

  • Aluminum Case Cooling Fan x1
