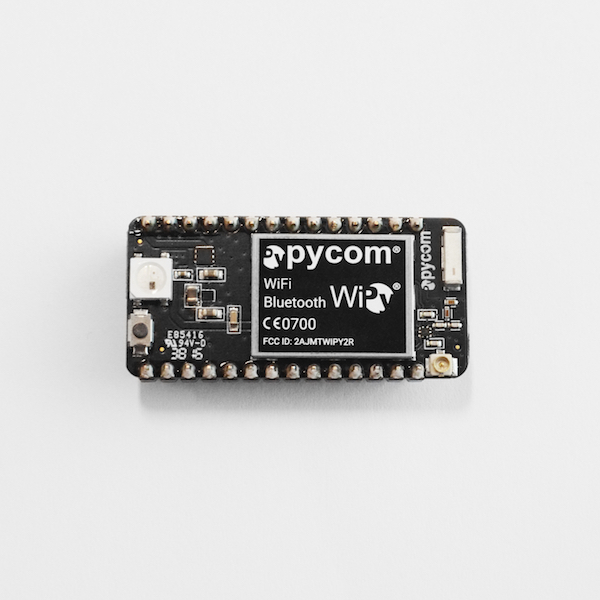

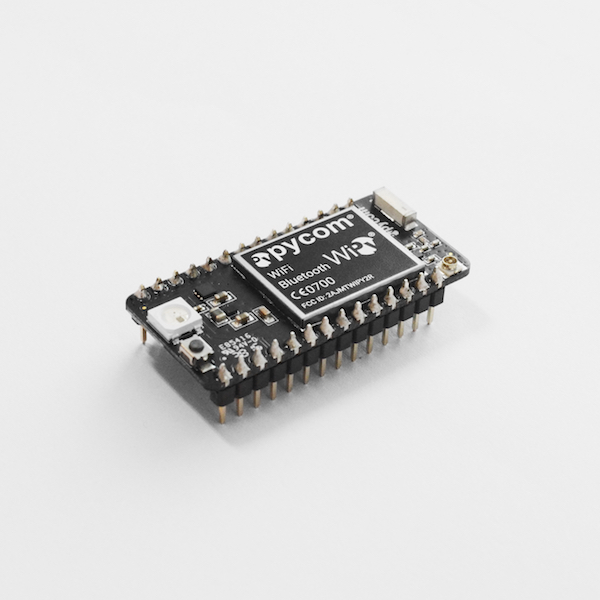

WiPy 2.0
Módulo Wipy V2.0 con doble procesador que integra Bluetooth y WiFi (ESP32) compatible con plataforma MicroPython. A diferencia de su antecesor, agrega más entradas analógicas y mas RAM (512 Kb), entre otras funcionalidades adicionales.
COD: PY00005
Peso: 0.029 Kg
Disponibilidad: En Stock
ARS 57139.00
El producto no está disponible para la venta en este momento
Características
Features:
- Powerful CPU, BLE and state of the art WiFi radio.
- 1KM Wi Range.
- MicroPython enabled, the Linux of IoT for fast deployment.
- Fits in a standard breadboard (with headers).
- Ultra-low power usage: a fraction compared to other connected micro controllers.
- Hardware floating point acceleration.
- Python multi-threading.
Processing:
- Espressif ESP32 chipset.
- Dual processor + WiFi radio System on Chip.
- Network processor handles the WiFi connectivity and the IPv6 stack.
- Main processor is entirely free to run the user application.
- An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and control most of the internal peripherals during deep-sleep mode while only consuming 25uA.
Interfaces:
- 2 x UART, 2 x sPI, I2C, I2S, micro SD card.
- Analog channels: 8×12 bit ADCs.
- Timers: 4×16 bit with PWM and input capture.
- DMA on all peripherals.
- GPIO: Up to 24.
Hash/Encryption:
SHA, MD5, DES, AES.
WiFi:
802.11b/g/n 16mbps.
Bluetooth:
Low energy and classic.
RTC:
Running at 32KHz.
Power:
- 3.3V to 5.5V.
- 3V3 output capable of sourcing up to 550mA.
Security & Certifications:
- SSL/TLS support.
- WPA Enterprise security.
- FCC – 2AJMTWIPY2R.
- CE 0700.
Memory:
- RAM: 512KB.
- External flash: 4MB.
- Hardware floating point acceleration.
- Python multi-threading.
Size:
42mm x 20mm x 2.5mm (excluding headers).
Weight:
- 5g
- 29g (Packaged)
Datasheet (563 Kb)
