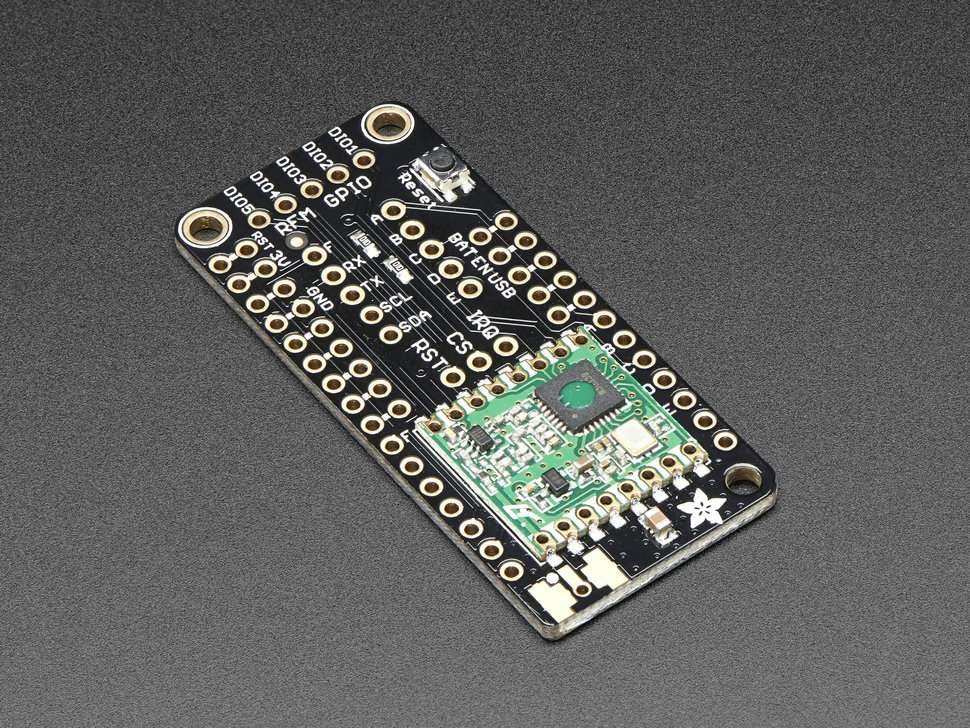

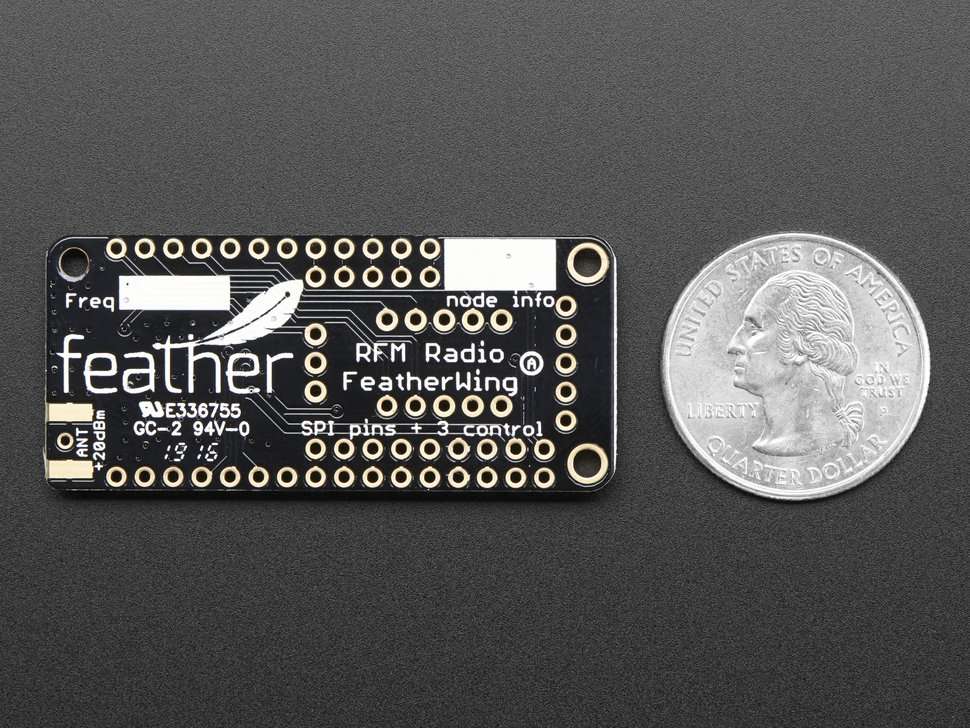

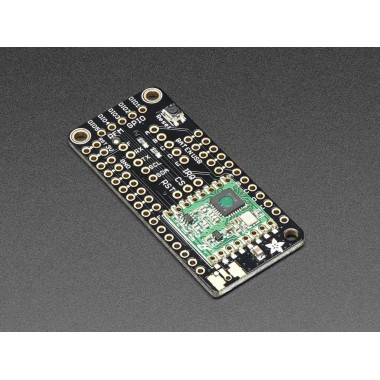

Adafruit Radio FeatherWing - RFM69HCW 900MHz

Módulo de radio de 868/915MHz FSK +20dBm, apto para trabajar en conjunto con las placas Feather ESP8266, Teensy 3 Feather, Feather 32u4, WICED Feather y Feather M0.

COD: D003229

Peso: 0.007 Kg

Disponibilidad: En Stock

ARS 20284.00

El producto no está disponible para la venta en este momento

Características

DESCRIPTION

Add short-hop wireless to your Feather with these Radio Featherwings. These add-ons for any Feather board will let you integrate packetized radio (with the RFM69 radio) or LoRa radio (with the RFM9x's). These radios are good options for kilometer-range radio, and paired with one of our WiFi, cellular or Bluetooth Feathers, will let you bridge from 433/900 MHz to the Internet or y?our mobile ?device.

The RFM69's are easiest to work with, and are well known and understood. The LoRa radios are exciting, longer-range and more powerful but also more expensive.

This is the RFM69 @ 900 MHz version, it can be used for 868 MHz or 915 MHz (the radios use software configured frequency) These are +20dBm FSK packet radios that have a lot of nice extras in them such as encryption and auto-retransmit. They can go at least 500 meters line of sight using simple wire antennas, probably up to 5Km with directional antennas and settings tweakings

SX1231 based module with SPI interface
Packet radio with ready-to-go Arduino libraries
Uses the license-free ISM bands
+13 to +20 dBm up to 100 mW Power Output Capability (power output selectable in software)
50mA (+13 dBm) to 150mA (+20dBm) current draw for transmissions
Range of approx. 350 meters, depending on obstructions, frequency, antenna and power output
Create multipoint networks with individual node addresses
Encrypted packet engine with AES-128

Currently tested to work with the Feather ESP8266, Feather 32u4, WICED Feather, Teensy 3 Feather and Feather M0 series, some wiring is required to configure the FeatherWing for the chipset you plan to use.

All radios are sold individually and can only talk to radios of the same part number. E.g. RFM69 900 MHz can only talk to RFM69 900 MHz, LoRa 433 MHz can only talk to LoRa 433, etc.

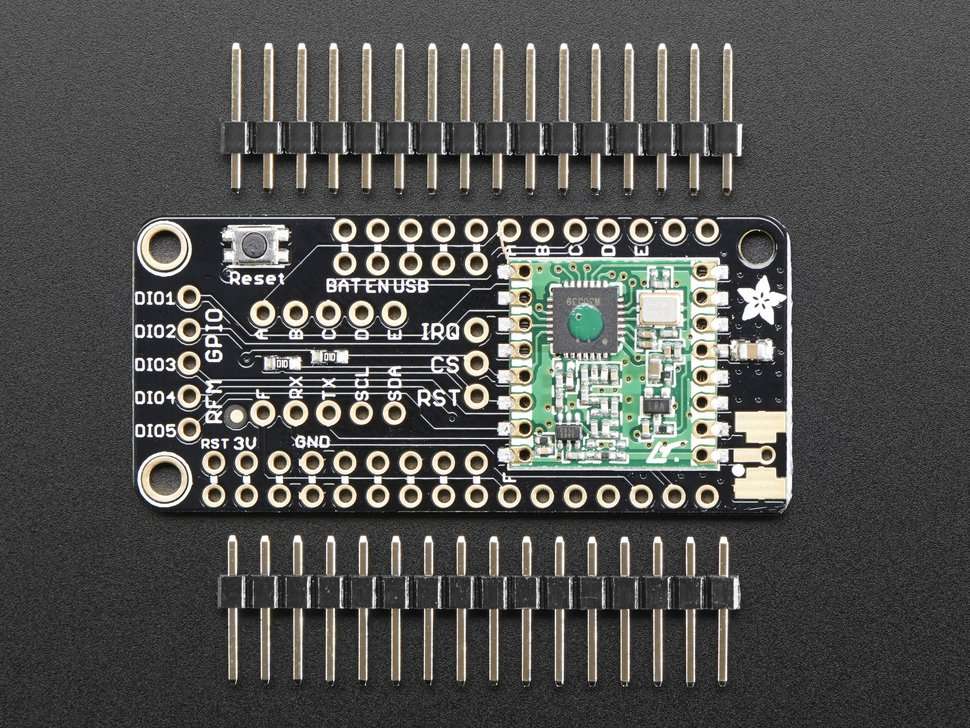

Each radio 'Wing comes with some header. Some soldering is required to attach the header. You will need to cut and solder on a small piece of wire (any solid or stranded core is fine) in order to create your antenna. Optionally you can pick up a uFL or SMA edge-mount connector and attach an external duck.
