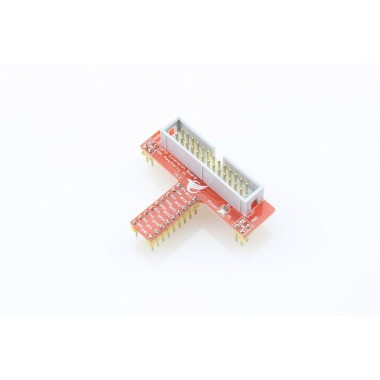

GPIO Extension Board for Raspberry Pi

Principal

Placa de extensión de pines para la Raspberry Pi.

COD: ERPB2621T

Peso: 0.005 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 5900.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

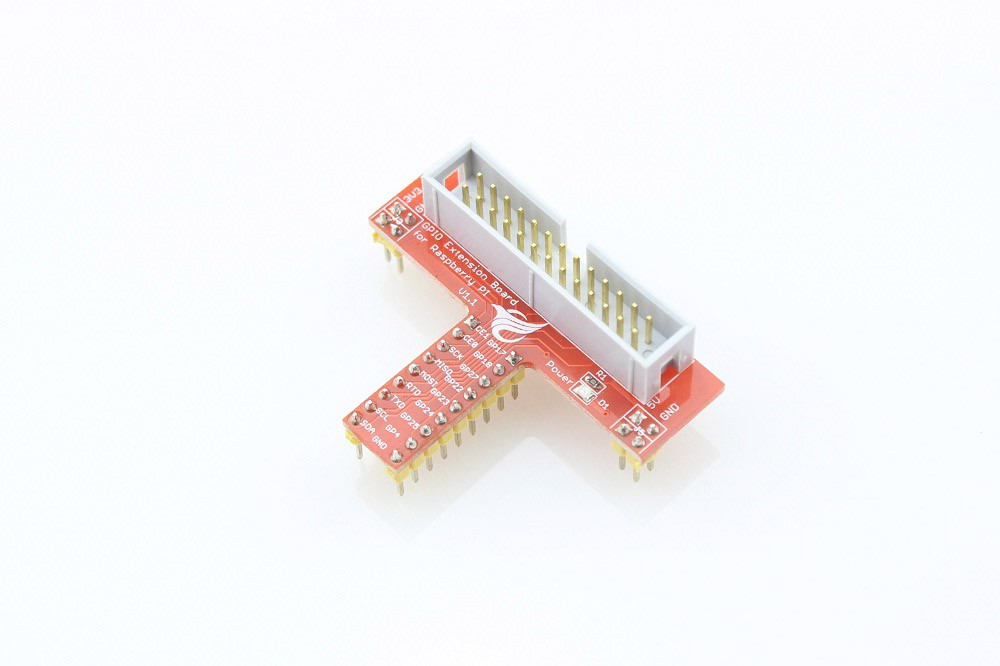

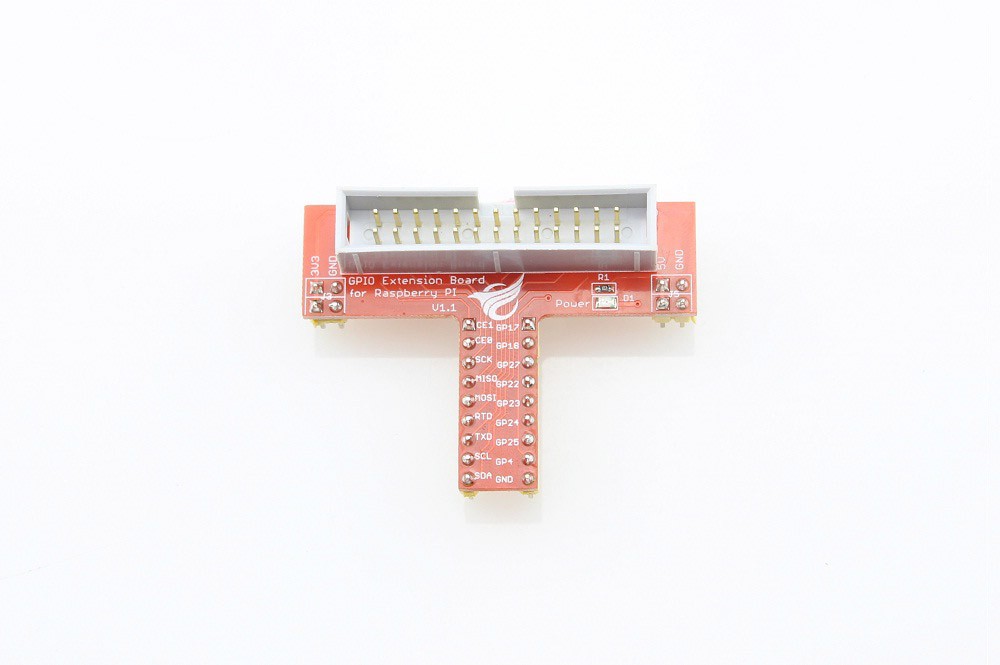

   If you want to make some fun embedded computer projects with your Pi, from the first project, the most important problem you need to solve is how to breakout the Pi pins. This Extension Board help you on this, it break out all those tasty power, GPIO, I2C and SPI pins from the 26 pin header onto a this breadboard.     This Extension Board is compatible with both versions 1 and 2 of the Raspberry Pi Computer - for version 2 computers, note that the GPIO #21 has been replaced with GPIO #27 and that the I2C pins are now I2C port #1 instead of #0. All other pins are the same.



Corresponding Interface

  • P0 - GPIO 17
  • P1 - GPIO 18
  • P2 - R1: GPIO 21, R2: GPIO 27
  • P3 - GPIO 22
  • P4 - GPIO 23
  • P5 - GPIO 24
  • P6 - GPIO 25
  • P7 - GPIO 4
  • CE1 - GPIO 7
  • CE0 - GPIO 8
  • SCLK - GPIO 11
  • MISO - GPIO 9
  • MOSI - GPIO 10
  • RXD - GPIO 15
  • TXD - GPIO 14
  • SCL - R1: GPIO 1, R2: GPIO 3
  • SDA - R1: GPIO 0, R2: GPIO 2
