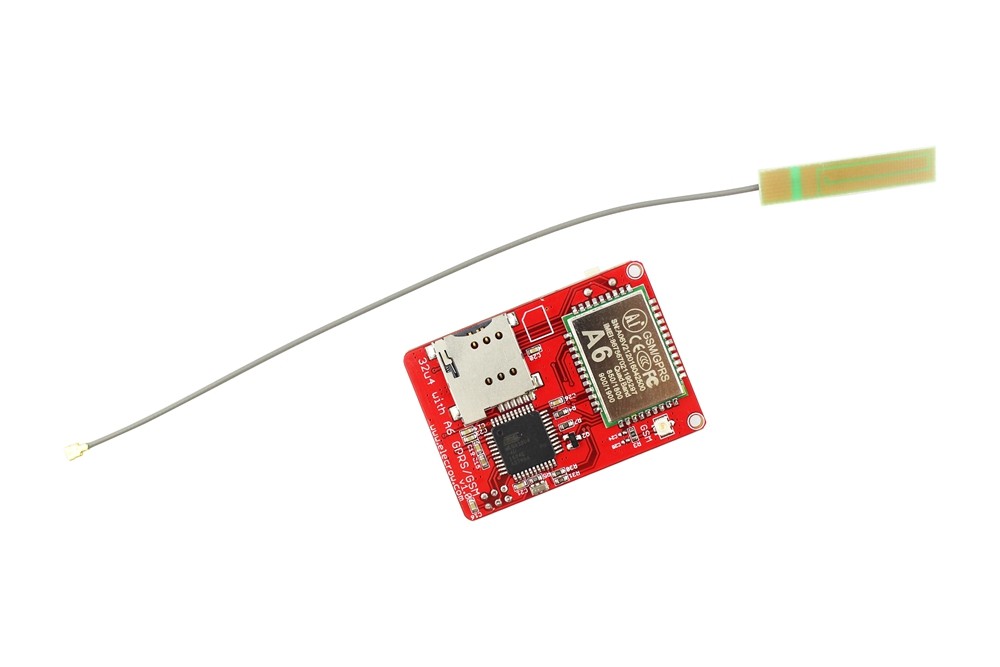

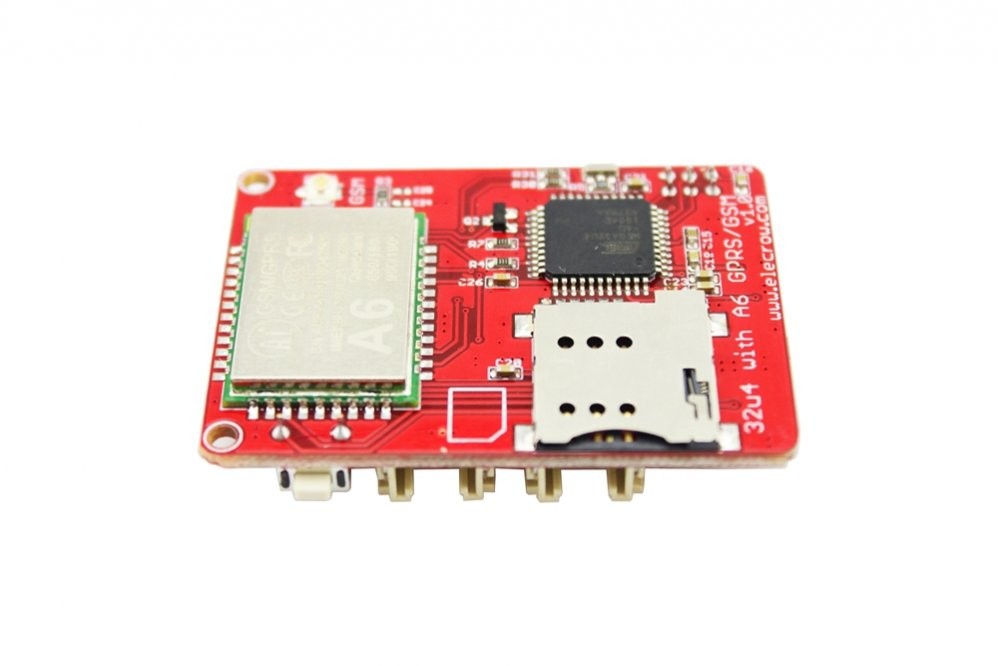

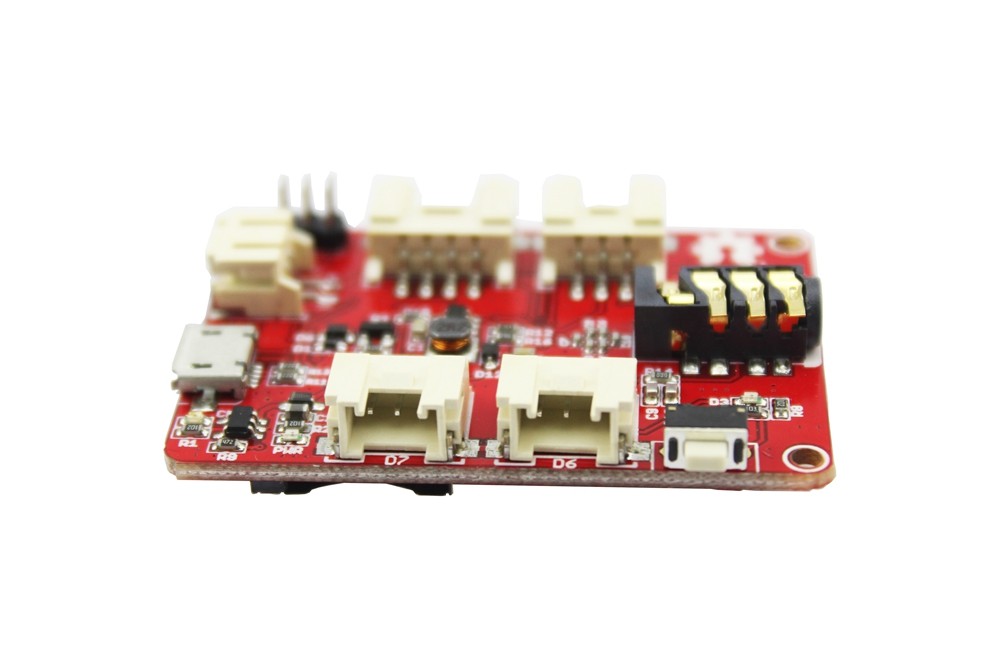

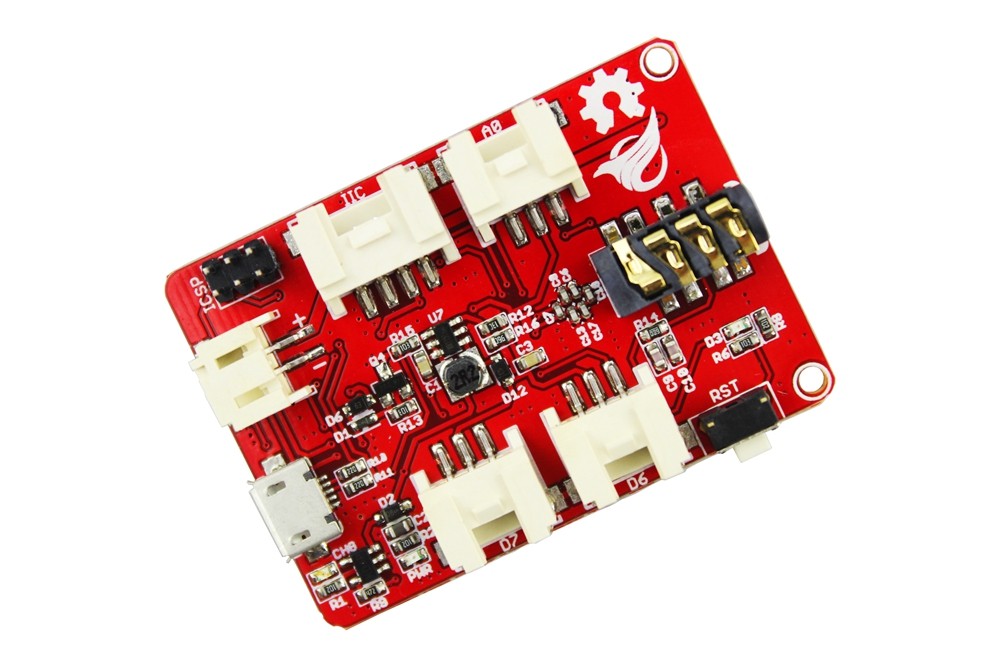

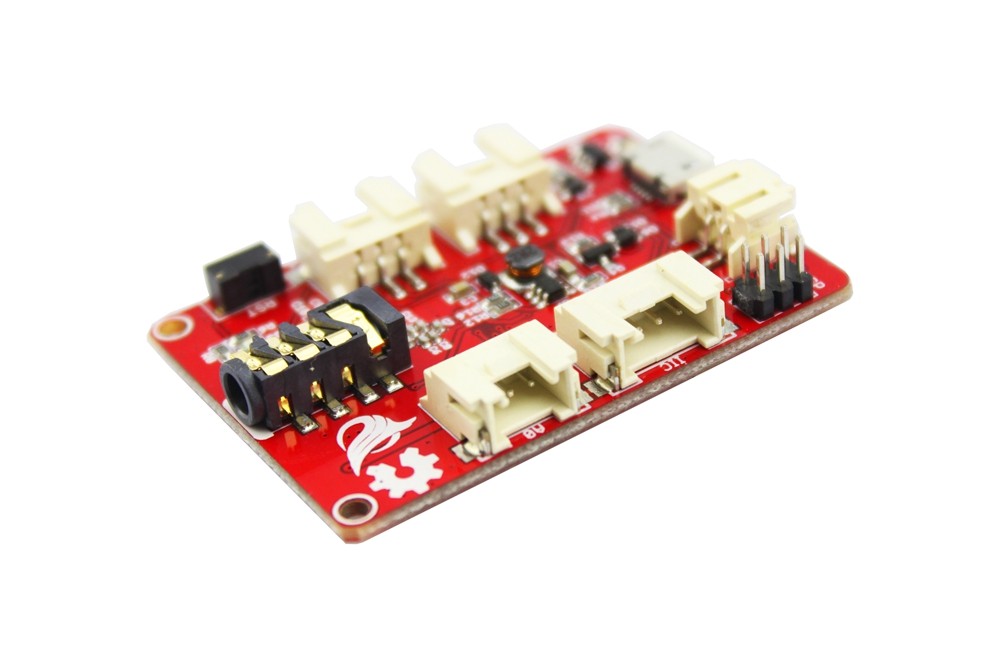

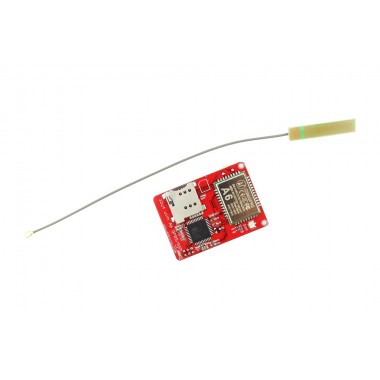

32u4 with A6 GPRS GSM Board
Placa con micro ATmega32U4 y modulo A6 GSM/GPRS incorporados. Ideal para realizar proyectos que requieran de llamadas y manejos de mensajes de texto. Útil para proyectos de IOT
COD: EACM32406G
Peso: 0.013 Kg
Disponibilidad: En Stock
ARS 53348.00
El producto no está disponible para la venta en este momento
Características
The 32U4 with A6 GSM/GPRS Board is based on mega32U4 and A6 GSM/GPRS module. It can be used to call and seed text messages, via GPRS to upload data to server. At the same time it leads to an analog interface, an IIC interface and 2 digital interface. which you can connect to other module more easily.
Remote control and data acquisition will be more convenient.It is worth mentioning that this module can be powered by battery, and comes with a battery charging circuit, some IOT projects will make it take a leading role.
Remote control and data acquisition will be more convenient.It is worth mentioning that this module can be powered by battery, and comes with a battery charging circuit, some IOT projects will make it take a leading role.
Features
- 32U4+A6
- Three kinds of interface
- 3.7V Battery power supply
- Portable
Specifications
- Weight:13g
- Sizes: 50mm x 35mm
- Working Voltage?3.7V
Package list
- 32u4 with A6 GPRS GSM Board x1
- GSM antenna x 1
Comandos_AT_Modulo_A6 (3833 Kb)
Eagle_Files (88 Kb)
