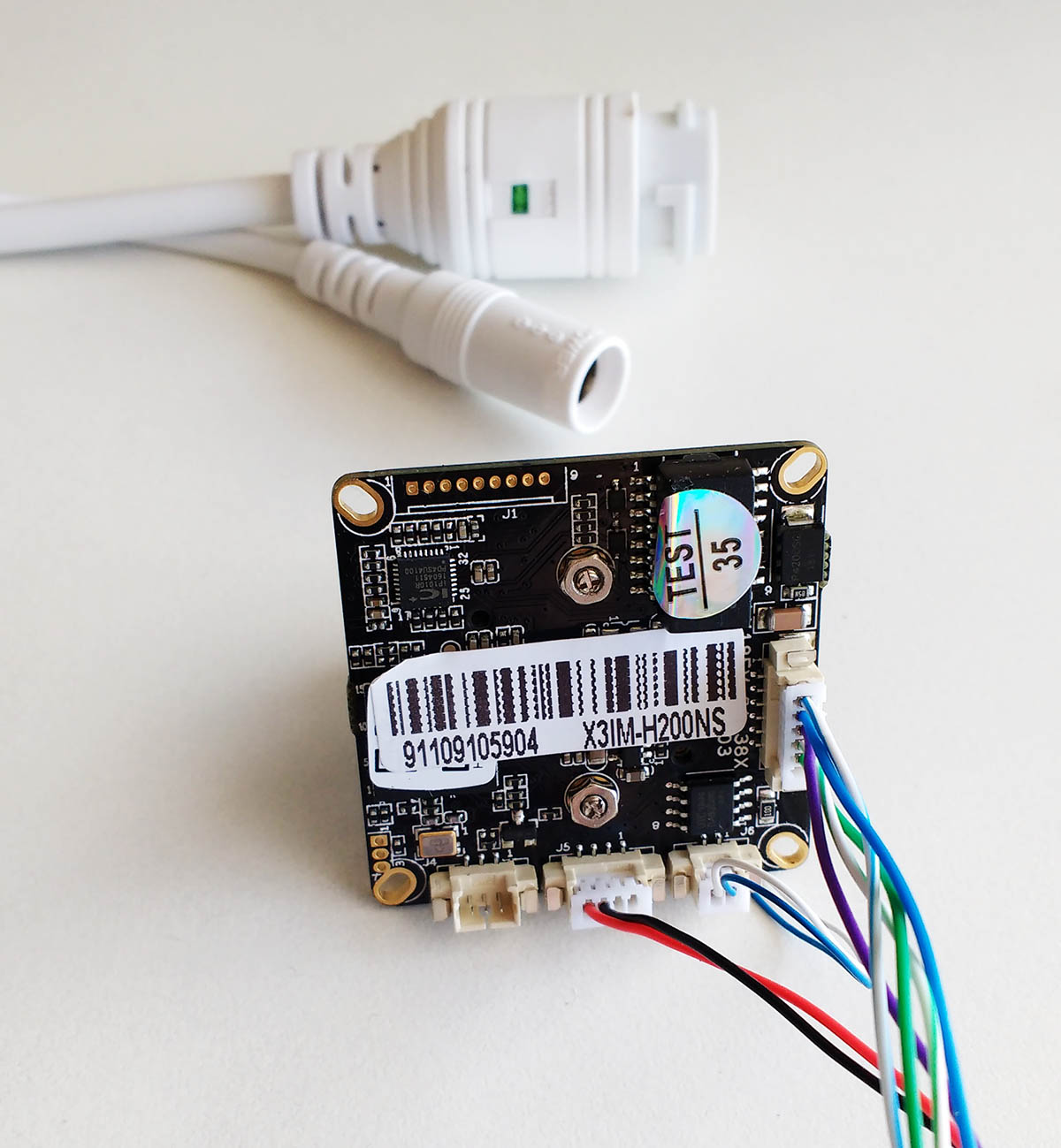

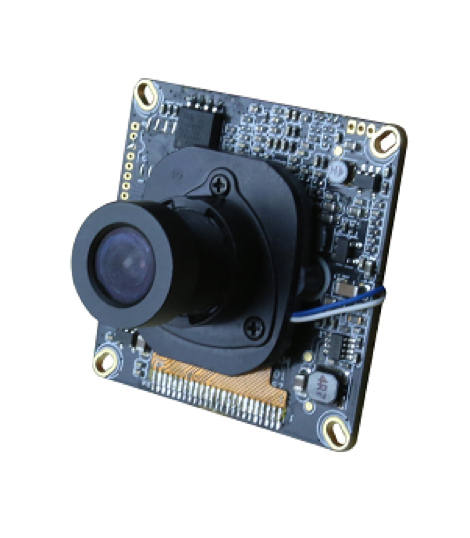

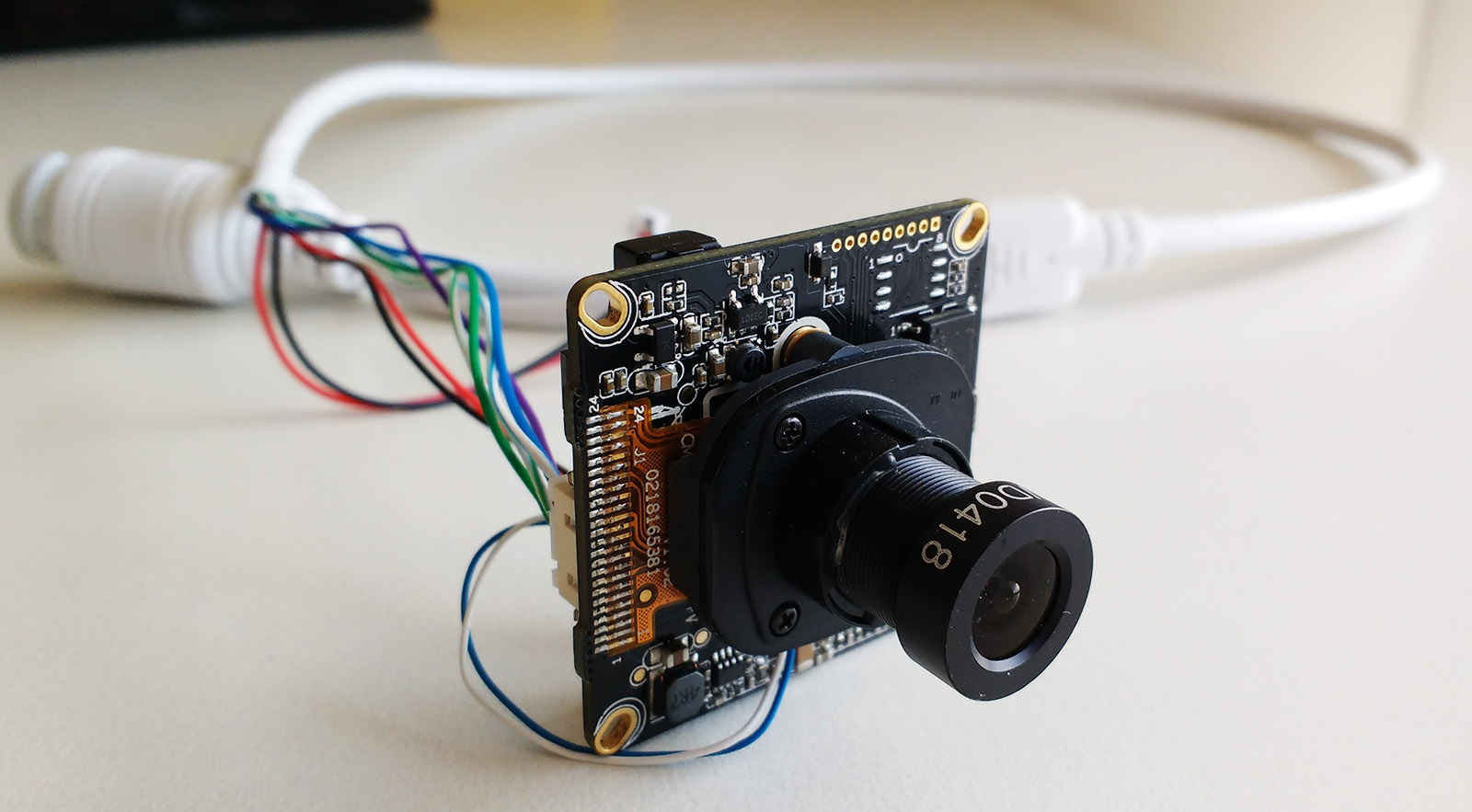

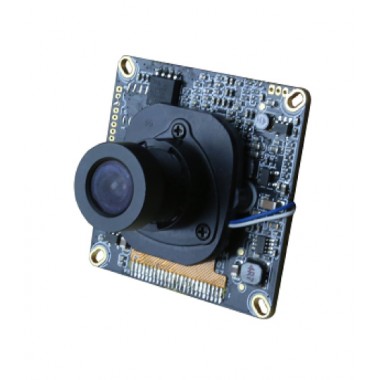

2MP IP camera module X3IM-H200NS

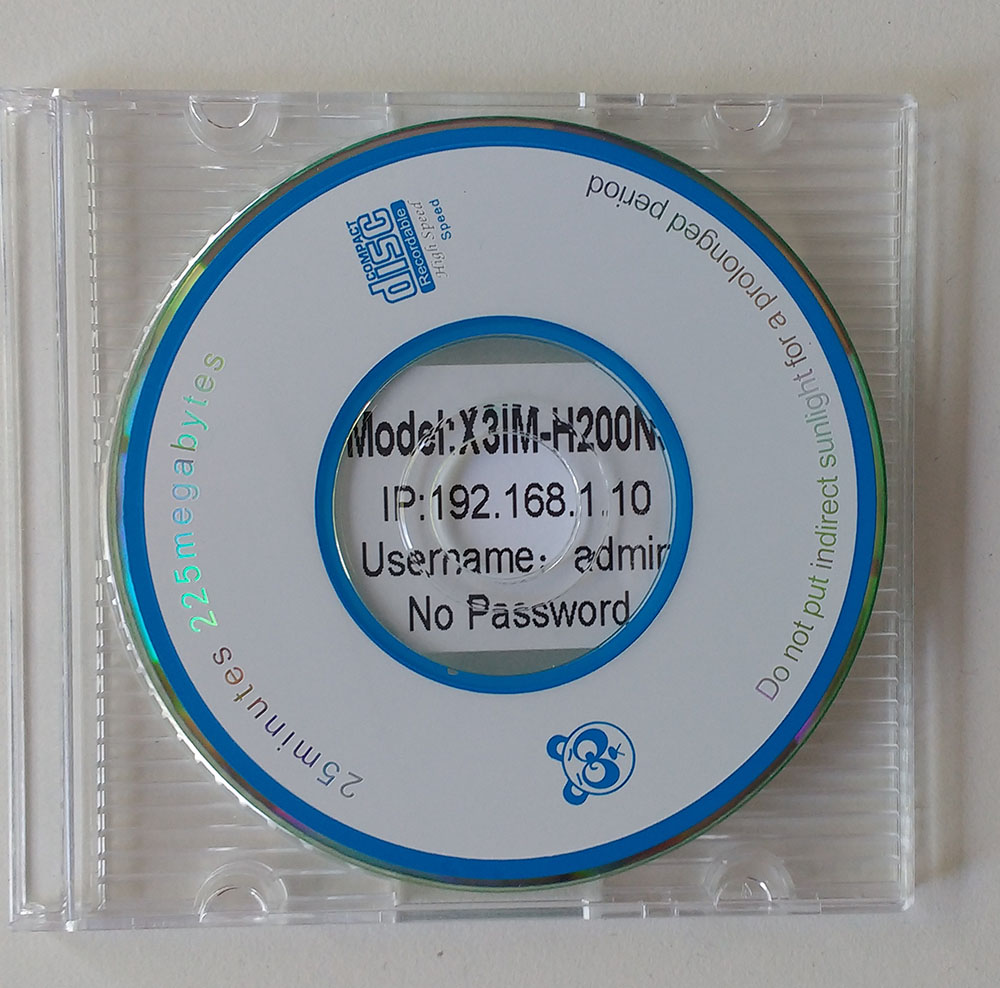

Cámara IP CMOS de 2 megapixels con salida FullHD. Compatible ONVIF y compresión H.264. Incluye lente de 3.6mm y CD con software de configuración. No incluye cable Ethernet y alimentación.
COD: GOX3IMH200NS
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 70904.00
El producto no está disponible para la venta en este momento
Características
| Model | X3IM-H200NS |
| System structure | Embedded RTOS,dual-core 32bit DSP( Hi3518EV200 ),pure hard compression ,watch dog |
| Sensor | 2.0M 1/2.7" SC2035 CMOS sensor ,color 0.1Lux@F1.2,black/white 0.01Lux@F1.2 |
| Video compression | H.264,support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable |
| Image output | Main stream: 1920*1080(15fps),1280*720;sub-stream: 704*576; |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Lens | 3.6mm M12 Lens |
| Day and night | Support IR-CUT |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital |
| Network interface | 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
| Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
| Auto iris | No |
| SD Card | Unsupport |
| Reliability | Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65ºC high temperature stable and reliable testing (including mounted machine testing) |
| Other function | Support OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture, united remote client monitoring software, MYEYE; perfect SDK; |
| ONVIF | Support |
| Mobile monitoring | Support multiple mobile monitoring (iOS/Android) |
| Power | DC12V/2A input, power consumption:≤3W |
| Dimension | 38mm*38mm |
| Explain | Support POE power supply (optional), not support any custom |
ATENCIÓN: NO INCLUYE CABLE ETHERNET Y ALIMENTACIÓN (GOGTIMC1)
Pinout (291 Kb)
