Large Dot Matrix LED Display Panel (Red)
Panel LED 32 x 16, pitch 10mm, color Rojo, compatible con Arduino.
COD: IDAD027
Peso: 0.250 Kg
Disponibilidad: En Stock
ARS 46951.00
El producto no está disponible para la venta en este momento
Características

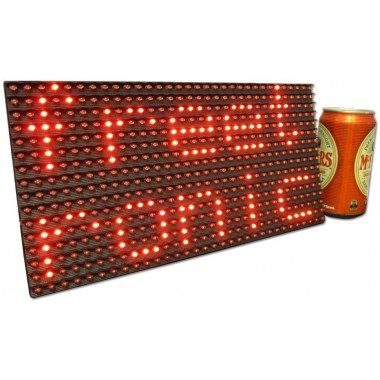

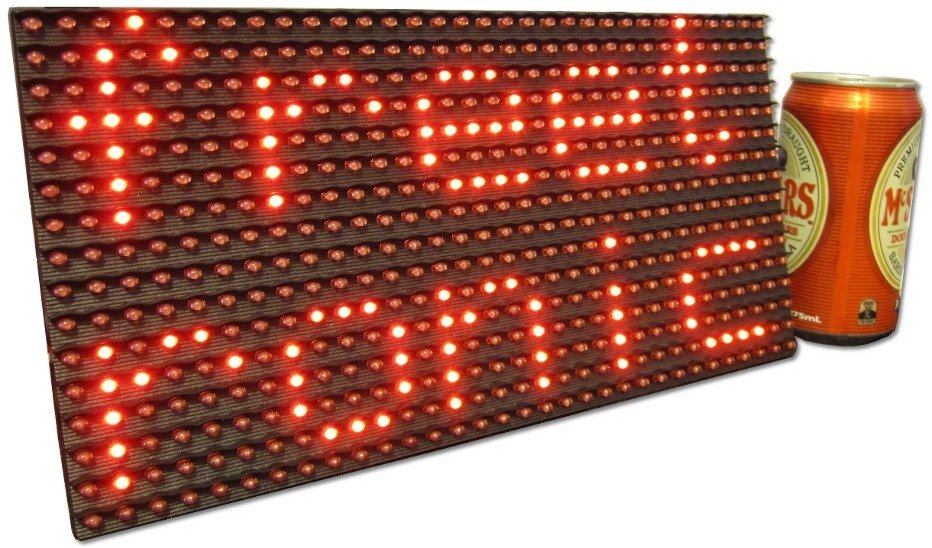

A huge dot matrix LED panel! This large, bright 512 LED matrix panel has on-board controller circuitry designed to make it easy to use straight from your board. Clocks, status displays, graphics readouts and all kinds of impressive display projects are easy to create using this display.
The photos don't do this display justice: it's stunningly bright, so put on your sunglasses before you fire it up!
Specification:
• 32 x 16 high brightness white LEDs (512 LEDs total) on a 10mm pitch
• 5V operation
• Viewable over 12 metres away
• Tough plastic frame

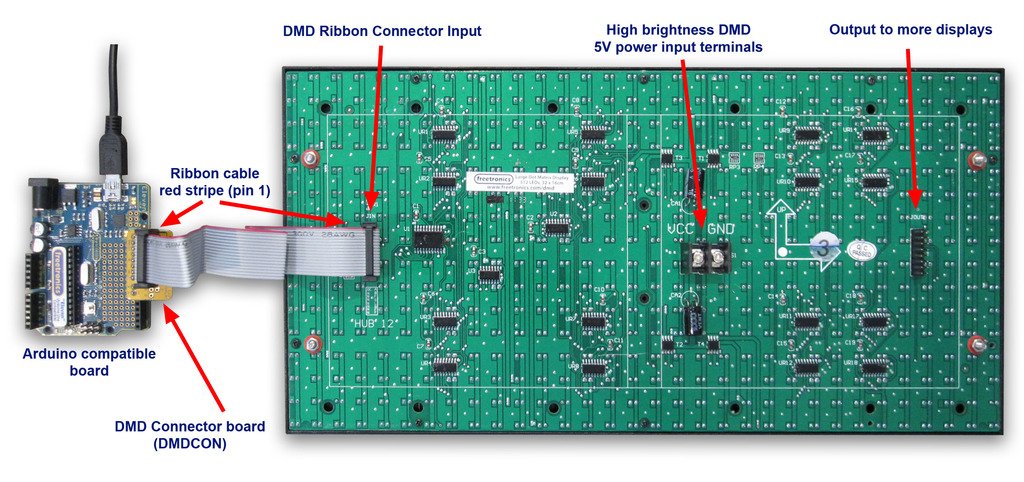

• Controller IC's on board, simple clocked data interface
• Arduino compatible library, graphics functions and example support
• Dimensions: 320(W) x 160(H) x 14(D)mm (including rear connectors)
Libreria Arduino (28 Kb)
