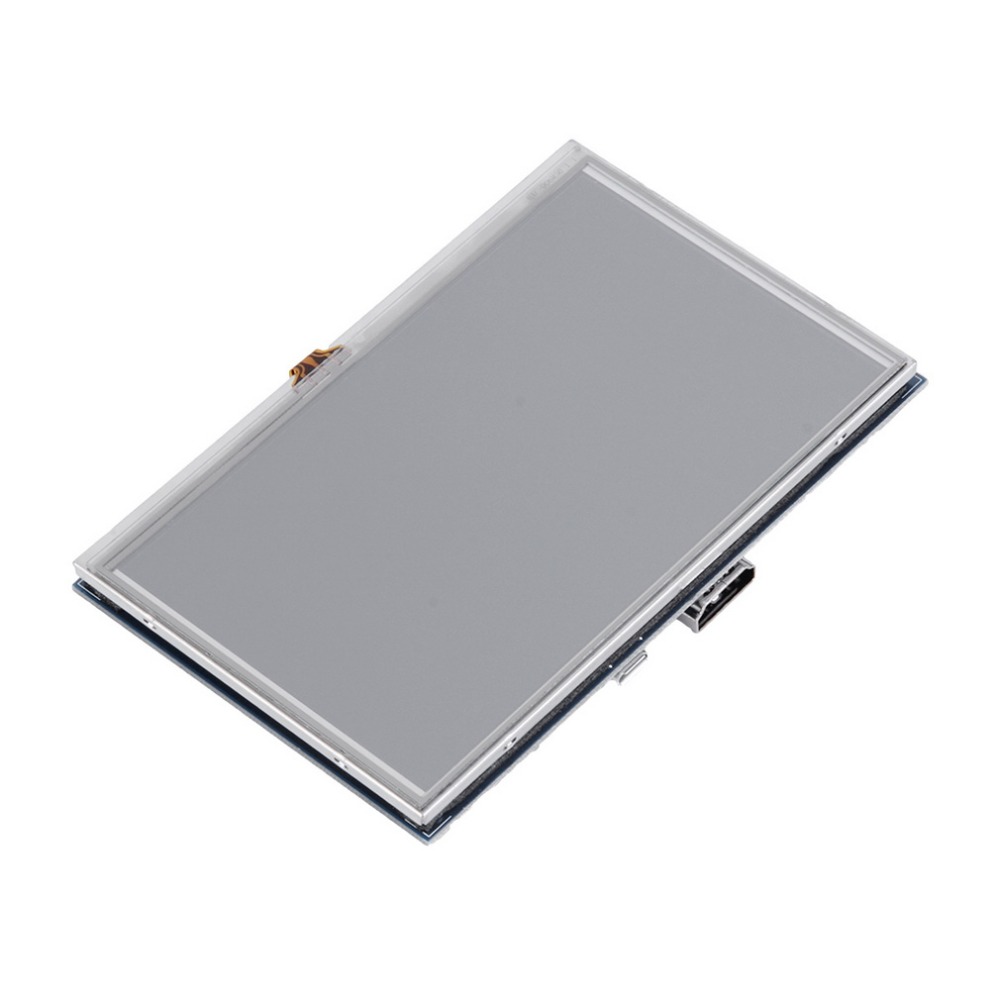

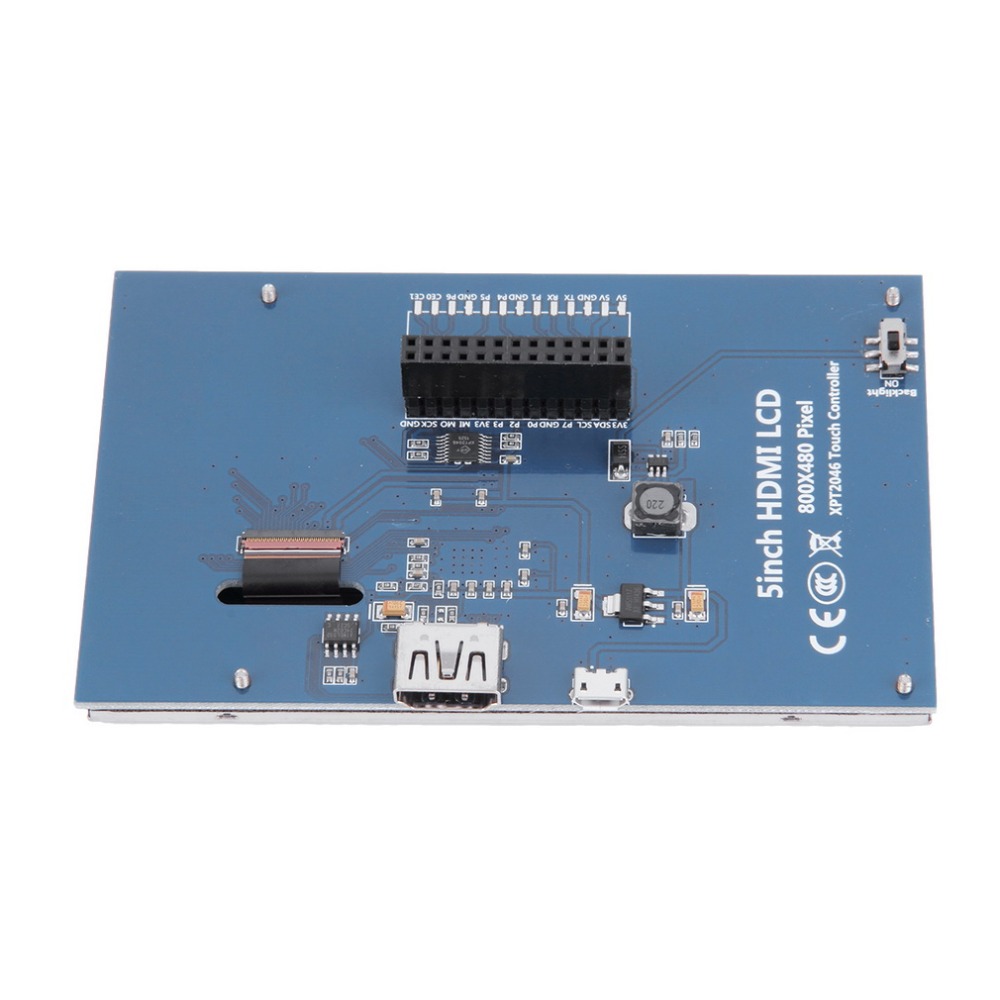

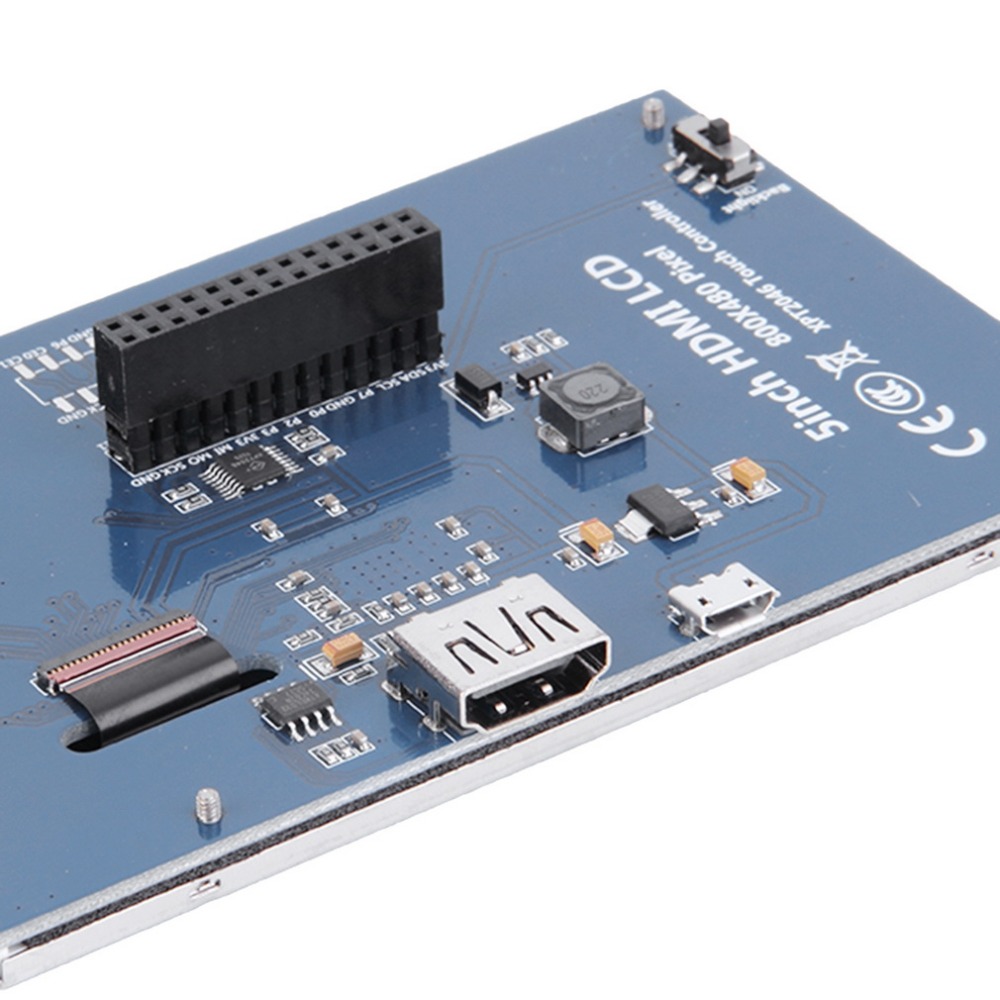

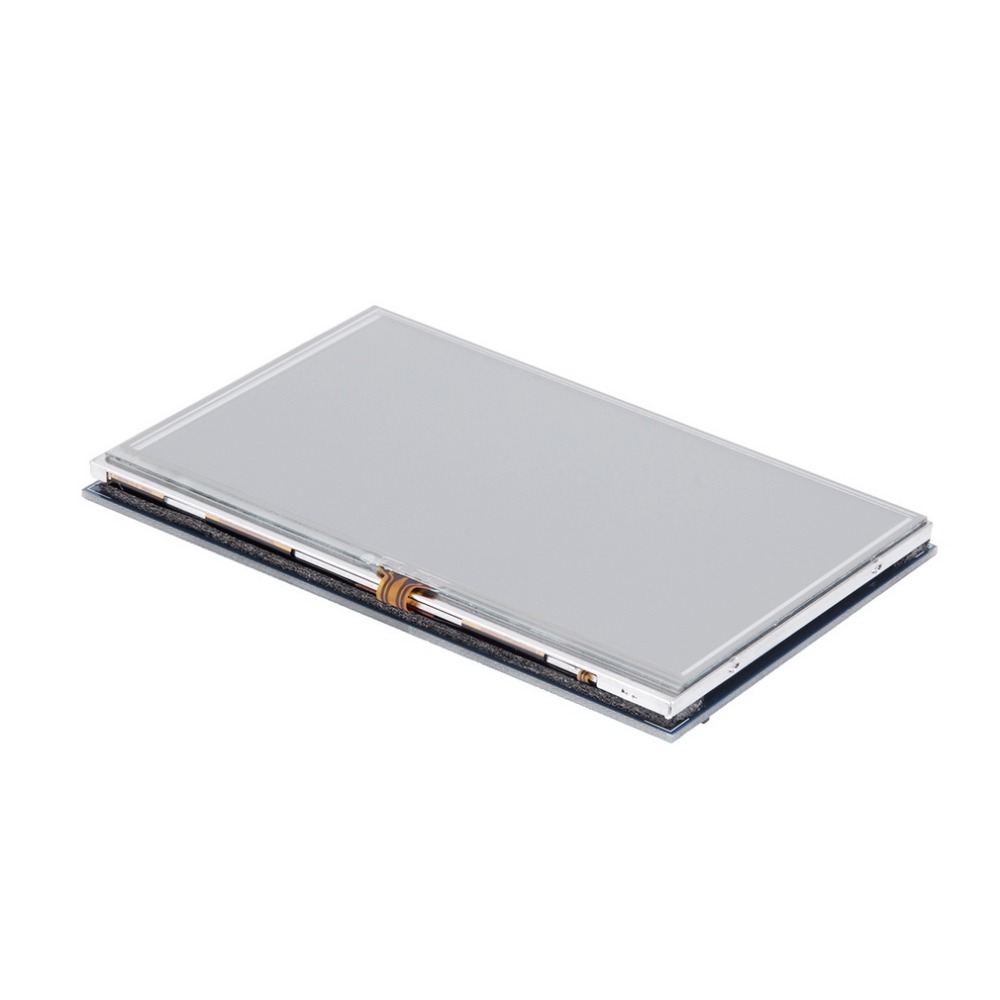

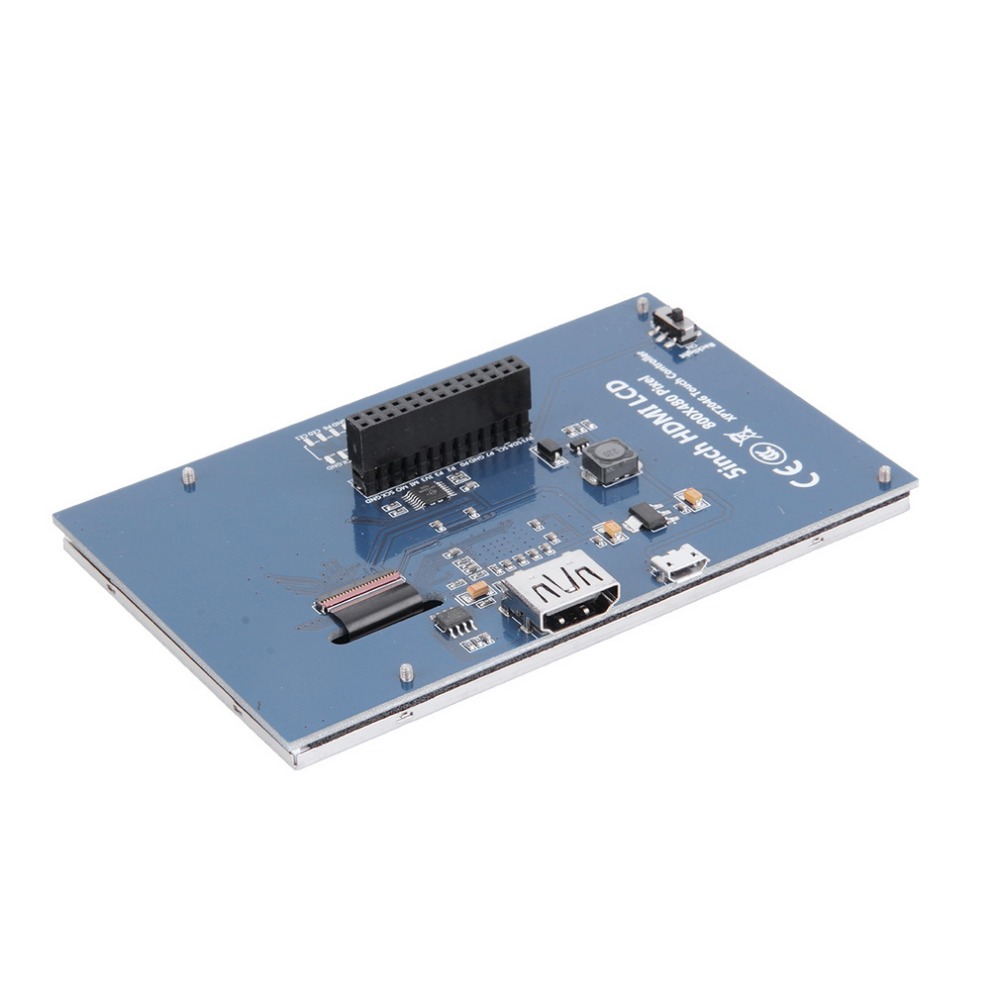

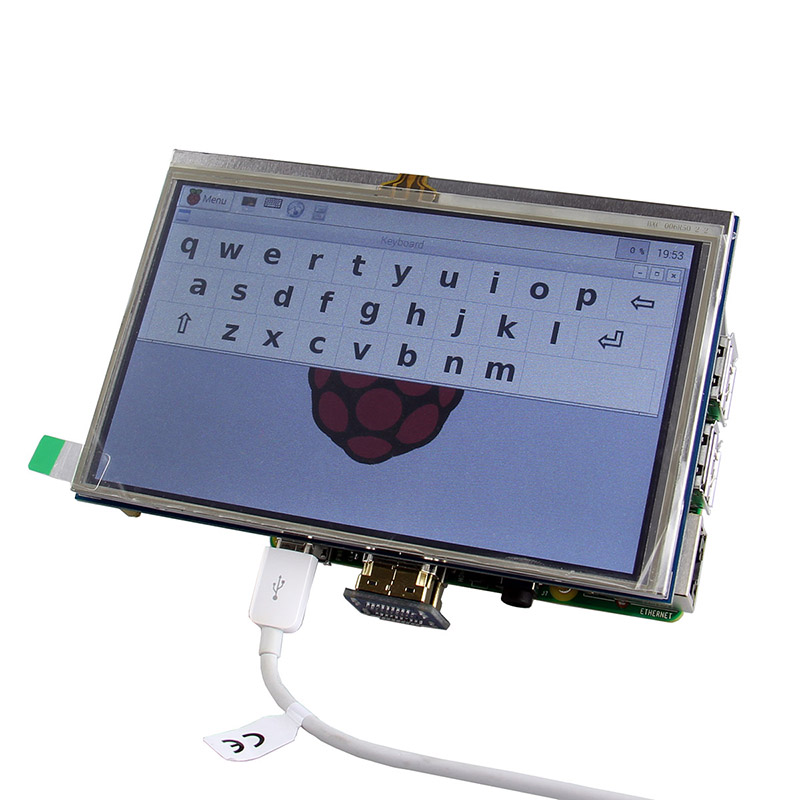

5 inch LCD HDMI Touch Screen Display TFT LCD Panel Module 800*480 for Banana Pi Raspberry Pi 2 Raspberry Pi 3 Model B / B+

5 inch LCD HDMI Touch Screen Display TFT LCD Panel Module 800*480 for Banana Pi Raspberry Pi 2 Raspberry Pi 3 Model B / B

Display LCD TFT Touch HDMI de 5 pulgadas para Banana Pi, Raspberry Pi 2, Raspberry Pi 3 Modelos B / B+.

COD: HTHR0120

Peso: 0.100 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 79814.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Features:
100% Brand new and high quaty
5-inch
Resistive Touch Screen
LCD Display HDMI
Compatible for Raspberry Pi XPT2046


Specifications:
Pixel: 800 x 480
Color: Blue
Net weight: 155.4g
Size:120 x 75 x 8mm
Touch pen: 9.5m(L)

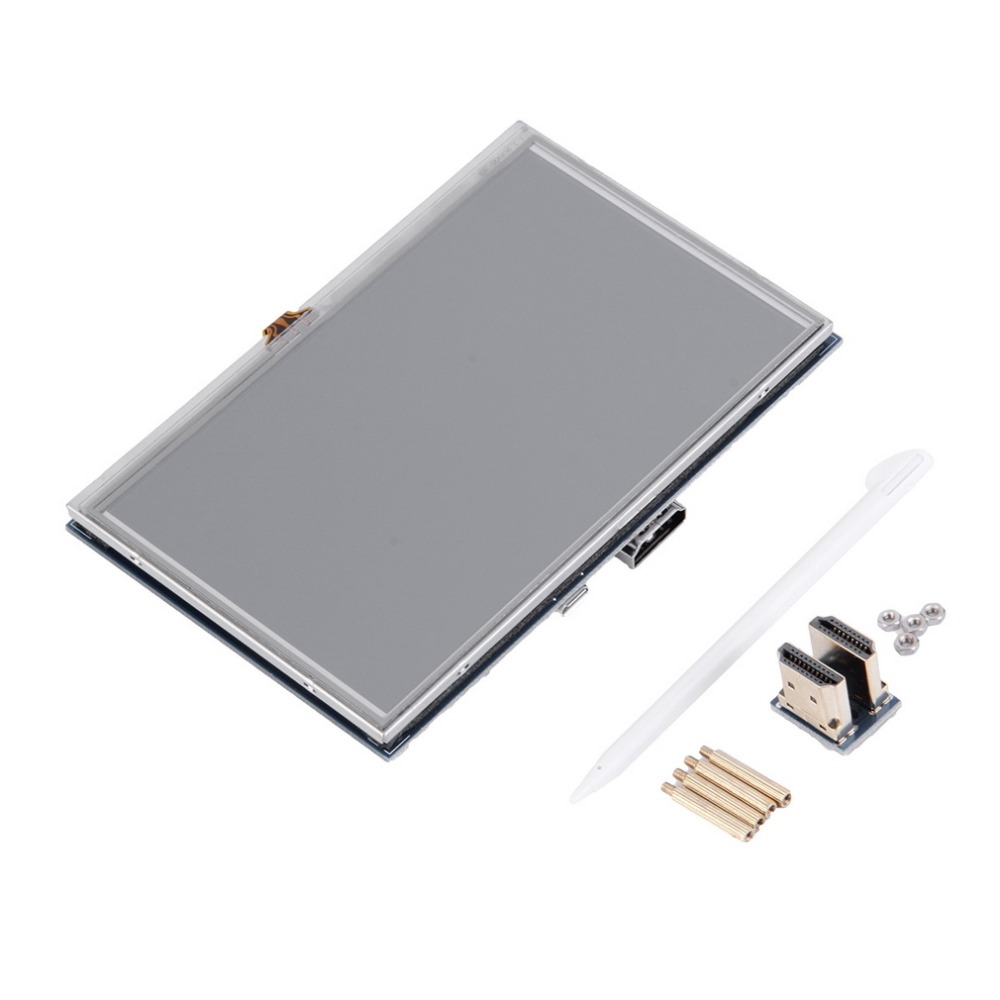

Package included:
1 x 5 inch LCD Touch Screen Display Module
1 x Touch pen

If the screen can't display in the middle,Do not worry ,it is not a hardware problem.
This belongs to the Raspberry software system Setting problems, according to the following operation instruction set the resolution, can solve the problem.

Step1: Open the ''config.txt''
sudo nano /boot/config.txt

Step2: Modified parameters as the following:
# uncomment if hdmi display is not detected and composite is being output
hdmi_force_hotplug=1

# uncomment to force a specific HDMI mode (here we are forcing 800x480!)
hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_cvt 800 480 60 6 0 0 0


Package Weight: 0.180kg (0.40lb.)
Package Size: 15cm x 10cm x 5cm (5.91in x 3.94in x 1.97in)
