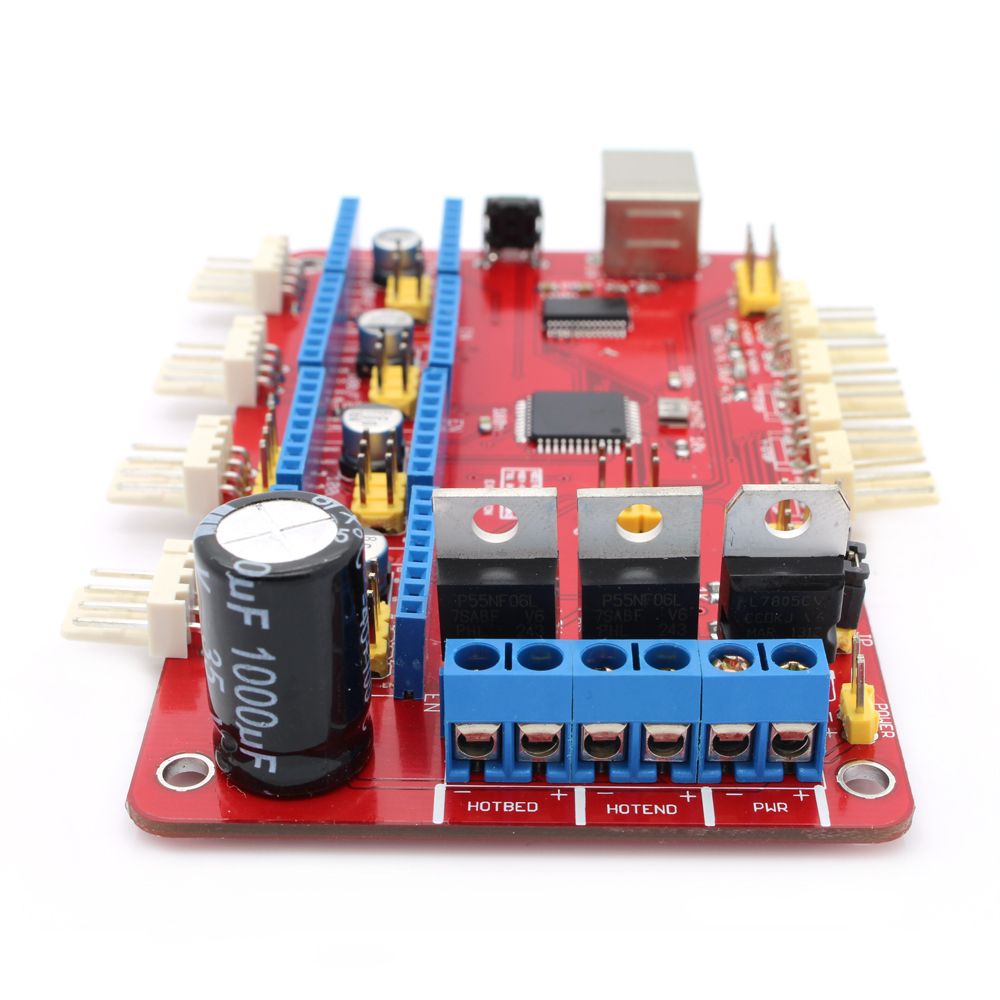

Azteeg RepRap controller compatible Sanguinololu

Azteeg RepRap controller compatible Sanguinololu

Controladora para Impresoras 3D RepRap y máquinas similares, incluyendo CNCs.

COD: FUT6313

Peso: 0.100 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 93000.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

1) Atmel ATmega 644P microcontroler
2) FT232RL FTDI USB chips
3) 2 thermistor inputs
4) 12-30V input voltage
5) Weight: 100g

The Azteeg 3DP is an open source controller designed to be used in RepRap 3D Printers and similar cartesian based machines including CNCs. It has all the features needed to run all current and future single extruder designs.

The Azteeg is based on Sanguino/Sanguinololu and is compatible with most Arduino based firmware(Sprinter,Marlin,Repetier, plus others.). It is pin to pin compatible with the Sanguinololu with the addition of a FAN PIN. The Azteeg features mostly SMT parts to ease production and reduce cost.



Features:

  • Atmel ATmega 644P with FT232RL FTDI USB chip
  • Compatible with Sprinter, Marlin, Repetier, others.
  • High current capacity connectors and PCB traces.
  • Mosfet control for 1 extruder and 1 hotbed
  • Extra PWM control for small fan or LEDs
  • 3 end stops and 2 thermistor inputs
  • 12-30v input high efficiency switching Power supply @ 500ma max
  • Dedicated uSD card female header [SDRAMPS compatible]
  • Low RDSon Mosfets for less heat buildup
  • Input power selector for micro controller [USB or internal regulator]
  • Secondary power input for stepper motors.
  • Optional pads for TVS spike suppression diodes for the Mosfets
  • Mosfet Heatsinks included
  • i2C, Tx1 serial, +5, GND, SPI and ADC pins on the expansion ports
  • Fast acting blade fuse
  • Both right angle and vertical connector sets included
  • Lots of LEDs, PWR, hot end and hot bed

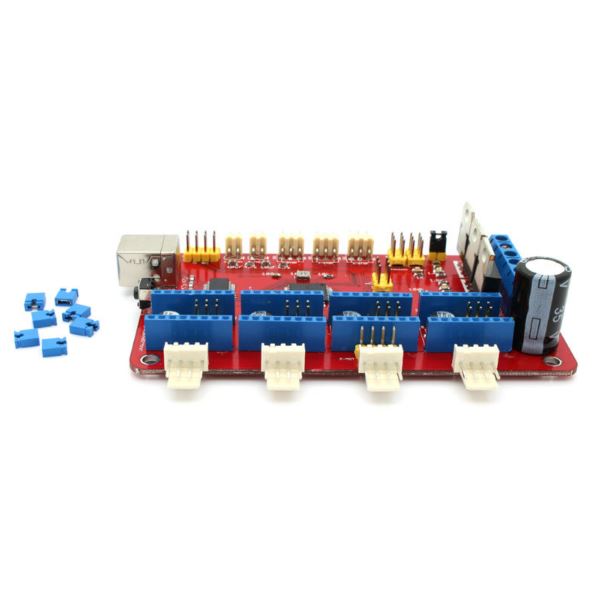

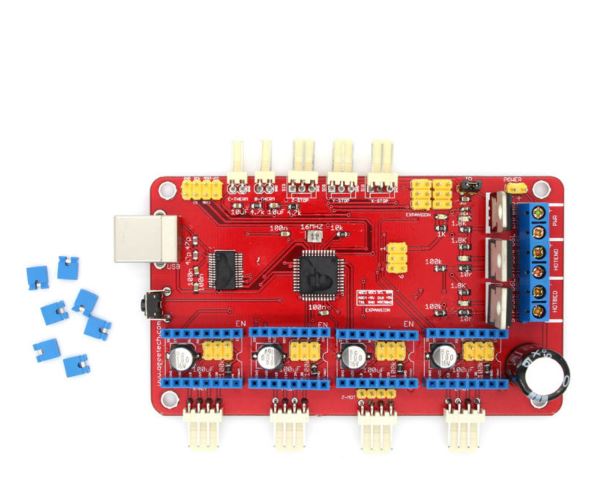

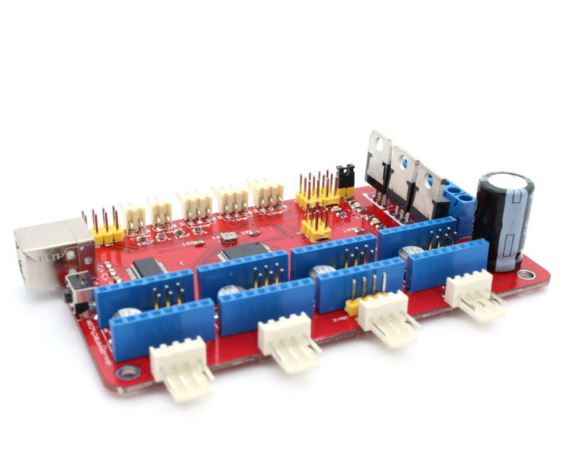

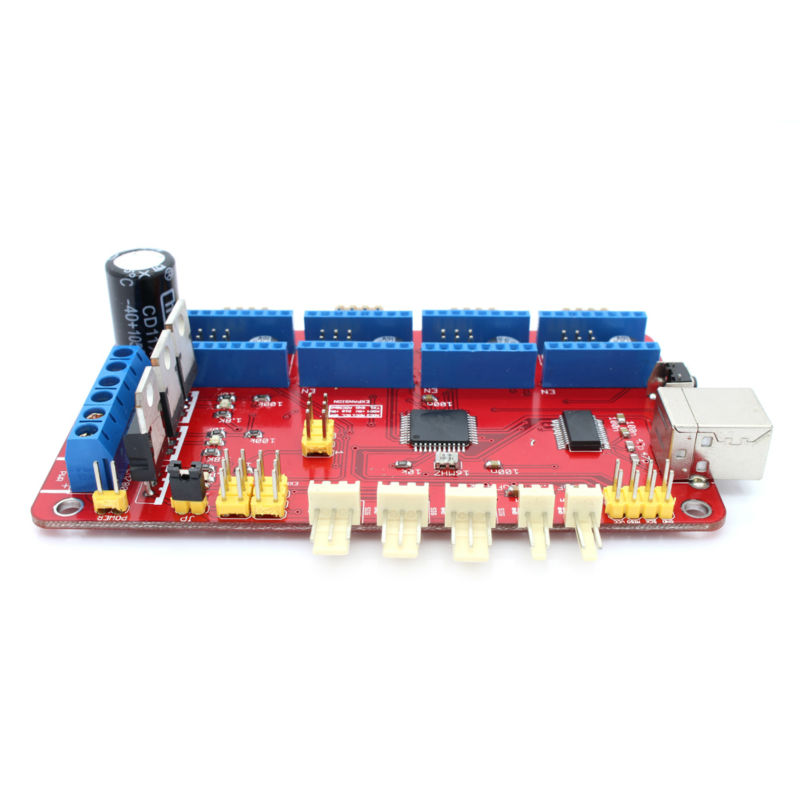

Galería de Imágenes
