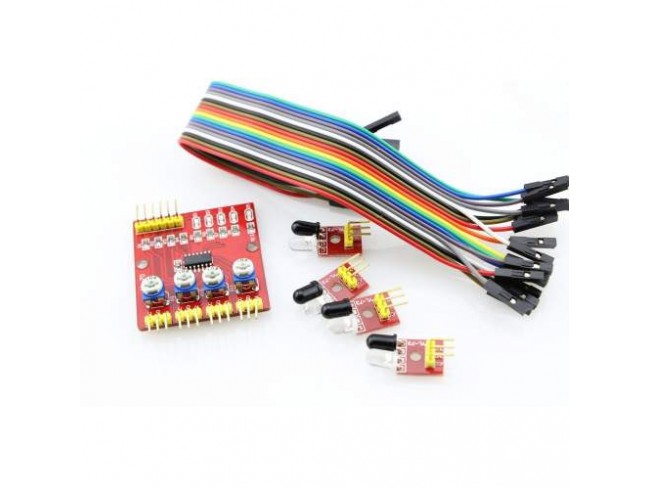

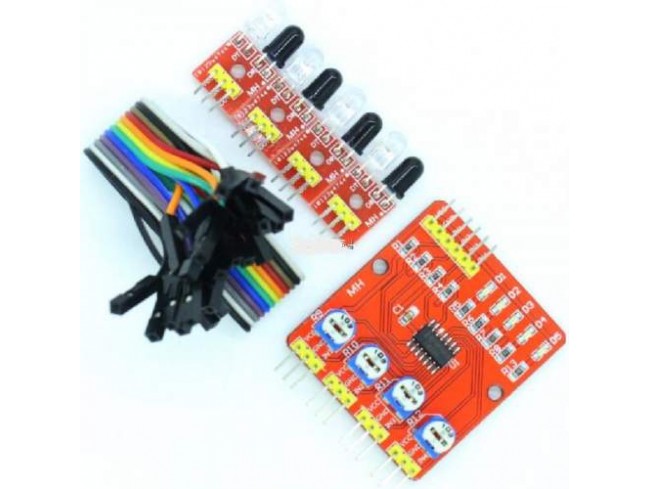

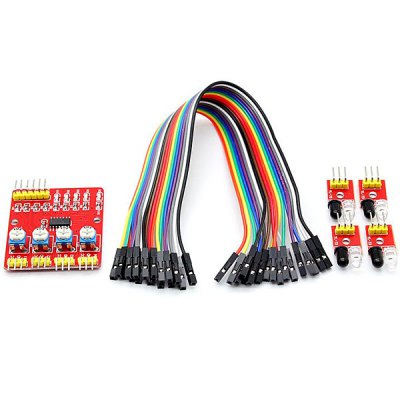

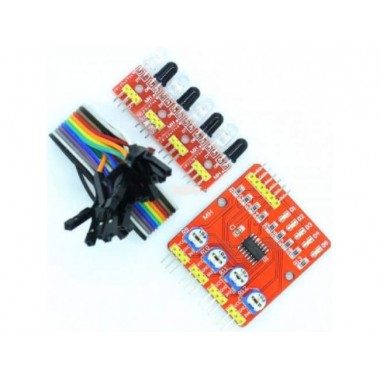

4 Channel Infrared Detection Tracing Univeral Board

4 Channel Infrared Detection Tracing Univeral Board

Módulo sensor IR de 4 canales. Útil para robots seguidores de línea o detectores de obstáculos.

COD: FUT3512

Peso: 0.007 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 5966.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

DESCRIPTION:

  • Working voltage: DC 3.3V-5V
  • Working current: try to choose more than 1A power supply
  • Working temperature: - 10oC - +50oC
  • Mounting aperture: M3 screws
  • Detection range: 1mm to 60 CM adjustable, the closer the performance more stable, white reflects the farthest distance.
  • Size: in the control panel of 42mm * 38mm * 12mm (length * width * height)
  • Small forward 25mm * 12mm * 12mm (length * width * height)
  • Output interface: 6 wire interface (1234 to 4 signal output ends, + positive power, - for the negative power is ground)
  • The output signal: TTL level (can be directly connected to I/0 microcontroller, infrared light reflected back to the sensor induction, the red indicator light, output low level; no infrared light, the indicator light does not shine, the output high.)

�??APPLICATIONS:

  • A Smart car or a robot hunt ( including the black and white lines ) , walking along the black line path , also known as tracing .
  • Smart car to avoid the cliff , anti- fall.
  • Smart car to avoid obstacles
