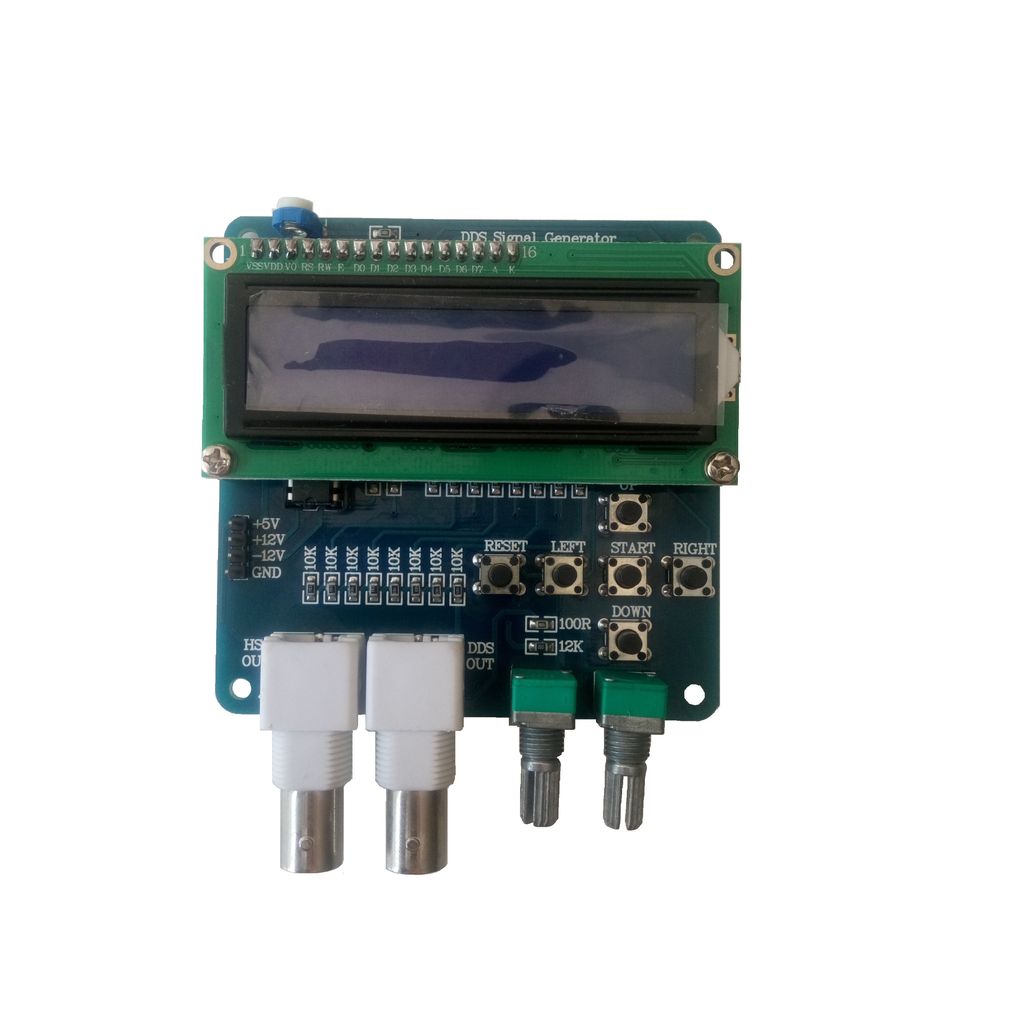

DDS signal generator (blue)
Generador de señales DDS, ondas cuadradas, senoidales, dientes de sierra entre otras!
COD: FUT3495
Peso: 0.020 Kg
Disponibilidad: Sin Stock
ARS 25984.00
El producto no está disponible para la venta en este momento
Características
The DDS signal generator, can output pulse wave, sawtooth wave, triangle wave, square wave, sine wave and noise DDS signal, can also be output 1, 2, 4, 8 MHZ four kinds of high-speed signal, can be used for single chip microcomputer to unlock, signal amplitude and offset can be adjusted.
Suite without power supply, need to make your own, one group of plus or minus 12 v for operational use, a set of 5 v for the use of microcontroller and the LCD panel.
MCU and LCD screen.
The DDS frequency range as follows: 1 hz - 65534 hz. (almost no distortion, magnified part adopts "emperor" NE5532)
High frequency (HS) square wave: 1 MHZ / 2 MHZ / 4 MHZ / 8 MHZ signal;
The DDS signal offset amplitudes quantity can be fixed by two potentiometer adjusted respectively;
DDS signal happened: sine wave, square wave, sawtooth wave, reverse sawtooth wave, triangle wave, wave ecg wave and noise.
1602 LCD screen;
5 the keyboard.
The step frequency values: 1,10,100,1000,10000 Hz;
General power supply automatic recovery after the last time use configuration.
The offset is: 0.5 pp - 5 VPP
Amplitude is: 0.5 Vpp - 14 Vpp
Output impedance: 20-200 ohms
Sell LCD1602 has a backlit LCD screen
Keys function is introduced:
The UP output waveform selection
DOWN the output waveform selection
The LEFT output frequency -
RIGHT output frequency +
The STOP/RUN for output to STOP/start
Press the UP key waveform sequence is:
ECG ECG wave (pulse) (= in the OFF state, the or so key can set the output frequency. The middle button to start, all of the following
Waveform Settings)
Rev Sawtooth = reverse Sawtooth wave
SawTooth = SawTooth wave
Triangle = Triangle wave
Square = Square wave
Going = Sine wave
High speed (High frequency output, must meet the HS OUT interface)
