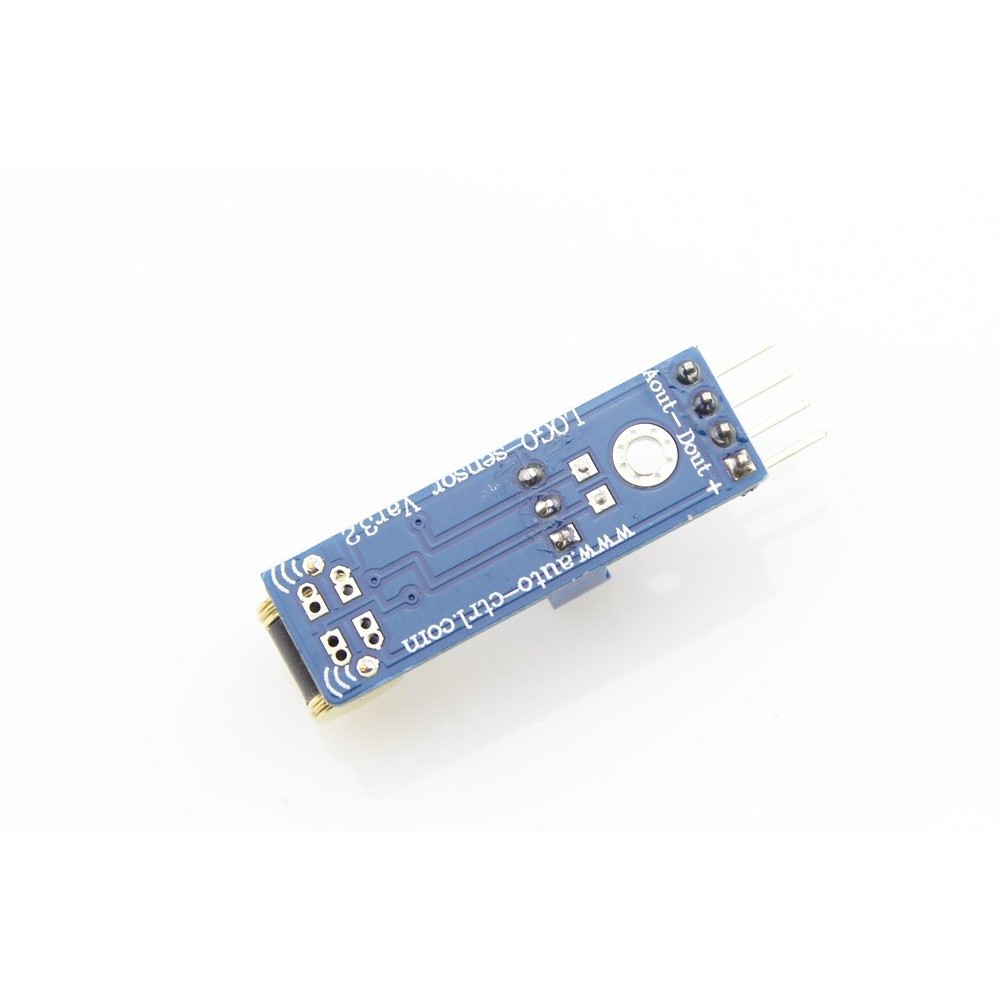

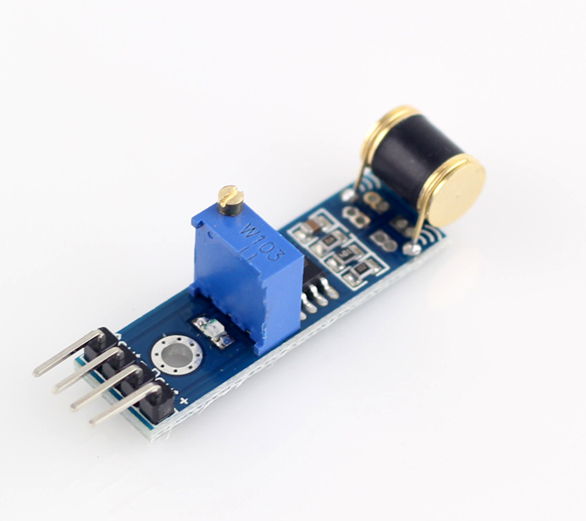

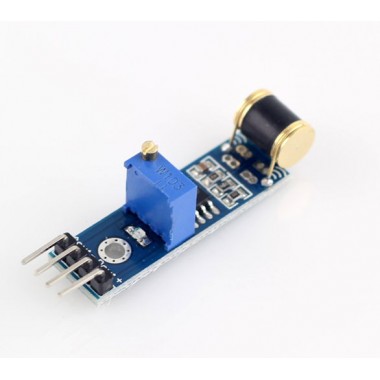

801S vibration sensor

801S vibration sensor

Sensor de vibración con salida analógica.

COD: FUT3444

Peso: 0.008 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 9214.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Specifications

Size: 41 * 15 * 12.5mm
The main chip: LM393, vibrating probe
Operating voltage: DC 3-5V

Model 801S Vibration Sensor vibration Analog Output Sensitivity Adjustable LM393

Main features:

Has a signal output instructions;

With analog and TTL-level signal output signal;

Output valid signal is high, the light goes out;

Adjustable sensitivity (fine-tuning);

Vibration detection range, non-directional;

With mounting holes, firmware installation flexible and convenient.

Applications: can be used in anti-theft devices, electronic locks, mechanical equipment vibration detection, counting shooting range bull's-eye detection of vibration testing

 Package Included:

1 X 801S Vibration sensor
