ESP8266-13 WIFI serial port

ESP8266-13 WIFI serial port

Módulo de comunicación WiFi de bajo costo con stack TCP/IP integrado.

COD: FUT3369

Peso: 0.002 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 6496.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

ESP8266 is an ultra-low power UART-WiFi module. It has excellent dimensions and ULP technology compared to other similar modules. The module is special design for mobile devices and Internet of Things . Once firmware is upgraded to the appropriate version, a compatible Android device can run the IOT.APK to do the following:control the PWM, I/O pin, or Serial communication. For example,you can use this module transmit date with it serial port.It is easy to communication with other device.

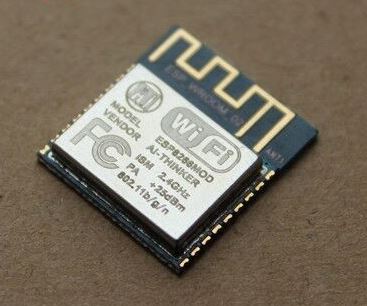

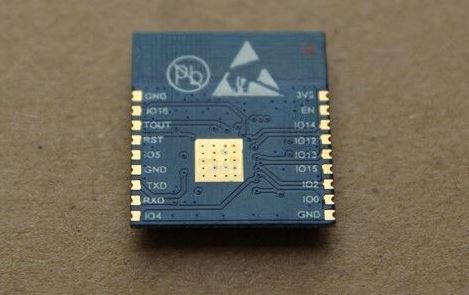

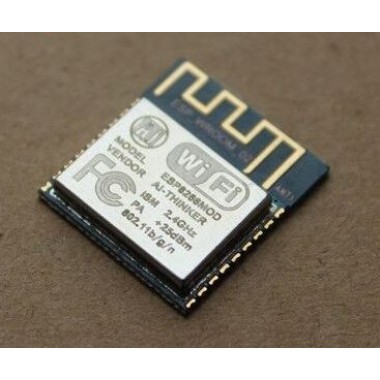

When searching for this over a WiFi network, the device name is "AI-THINKER" and the password is "ai-thinker". In the photos you can see an Android phone running a control app, the APK download is available from here

Features

  • Metal casing
  • support wireless 802.11 b/g/n standard
  • support the STA/AP/STA + AP three work modes
  • support rich Socket the AT command
  • support UART/GPIO data communication interface
  • support Smart Link intelligent networking
  • support the STA/AP/STA + AP three work modes
  • built-in 32-bit MCU and can be applied as processor
  • low power consumption, suitable for battery-powered applications
  • Single 3.3 V power supply

Specification
