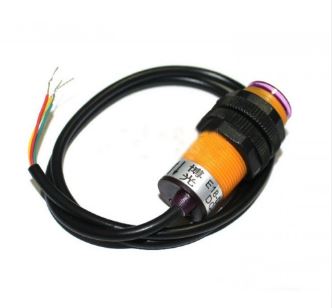

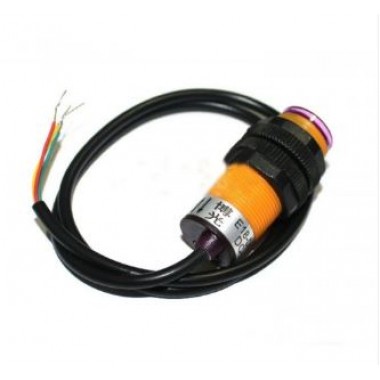

E18-D80NK Adjustable Infrared proximity switch photoelectric detect sensor

E18-D80NK  Adjustable Infrared proximity switch photoelectric detect sensor

Sensor de proximidad infrarrojo, con distancia de activación ajustable de 3 a 80 cm (cable sin conector). Muy utilizado en expendedores automáticos de alcohol en gel.

COD: FUT3277

Peso: 0.055 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 10984.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

E18-D80NK  Photoelectric Arduino Detect Sensor

Introduction:

The Adjustable Infrared Sensor Switch is a set of transmitter and receiver in one of the photoelectric switch sensor. The detection distance can be adjusted according to the demand. The sensor has a detection range of 3cm-80cm. The switching signal output differs in accordance to the obstacles. It remains high when no obstacles and remains low when there are obstacles.
It is small, easy to use/assemble, inexpensive. Useful for robot, interactive media, industrial assembly line, etc.

Specifications:

Power supply: 5V
Current:100mA
Range: 3-80cm adjustable

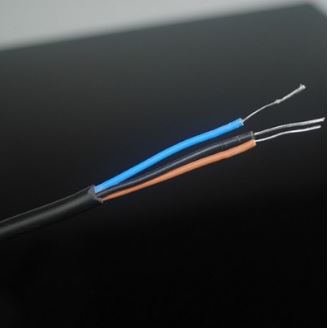

Brown: +5V
Blue:Signal
Black:GND
