4-way infrared remote control with relay

4-way infrared remote control with relay

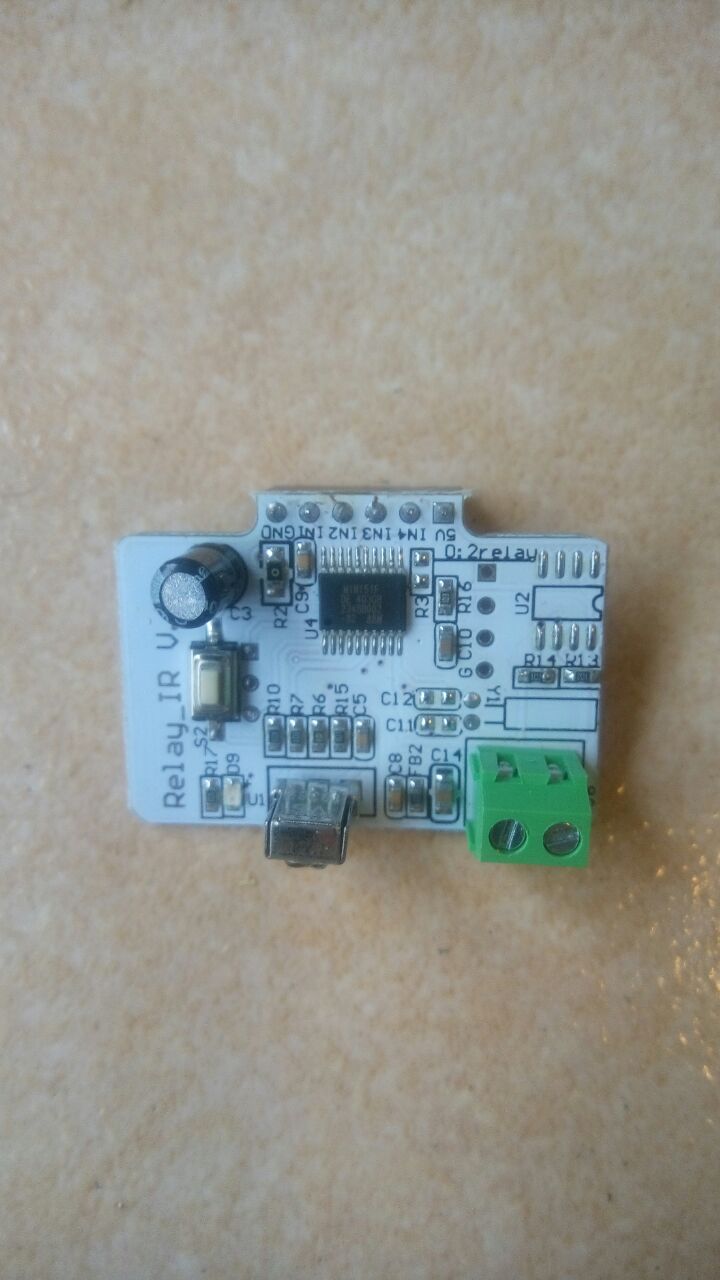

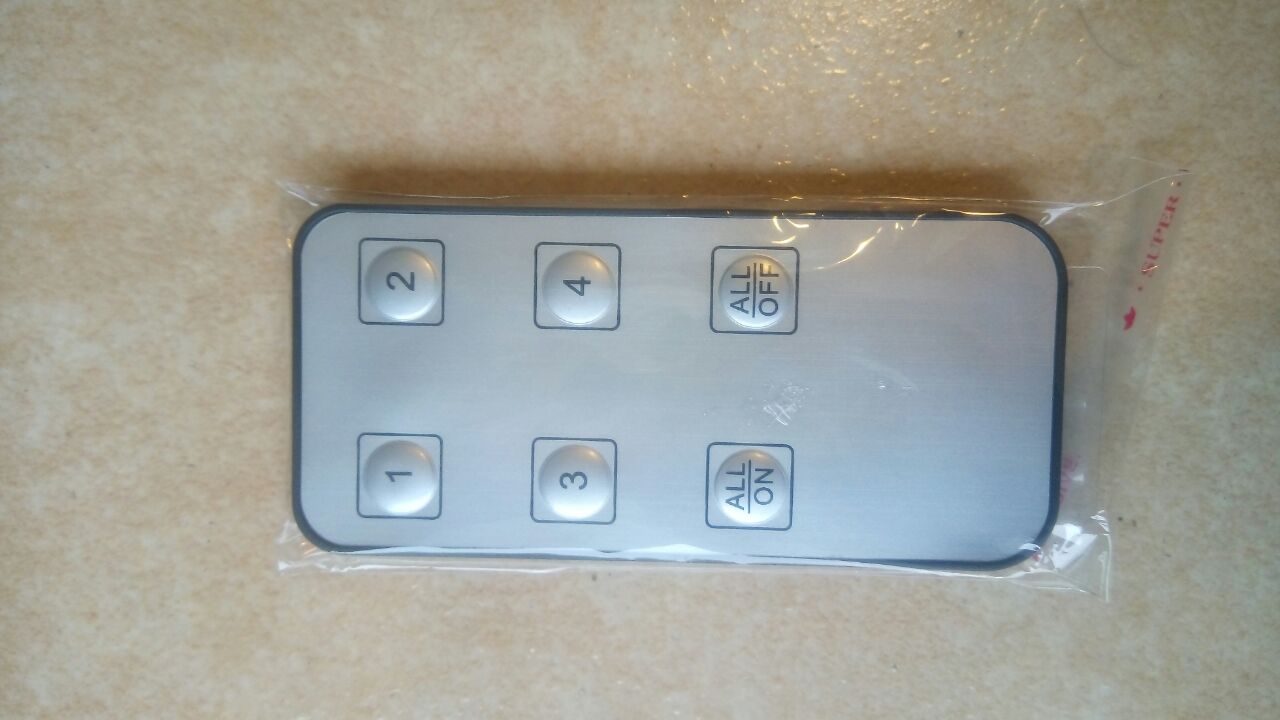

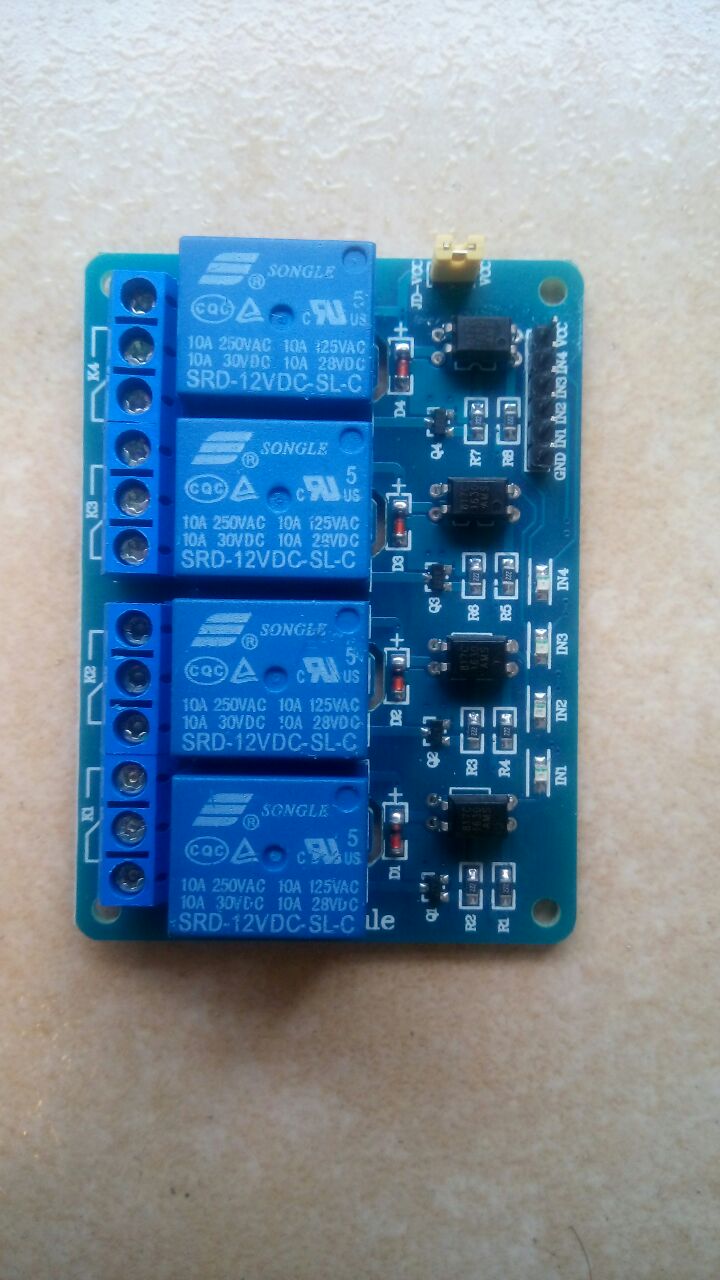

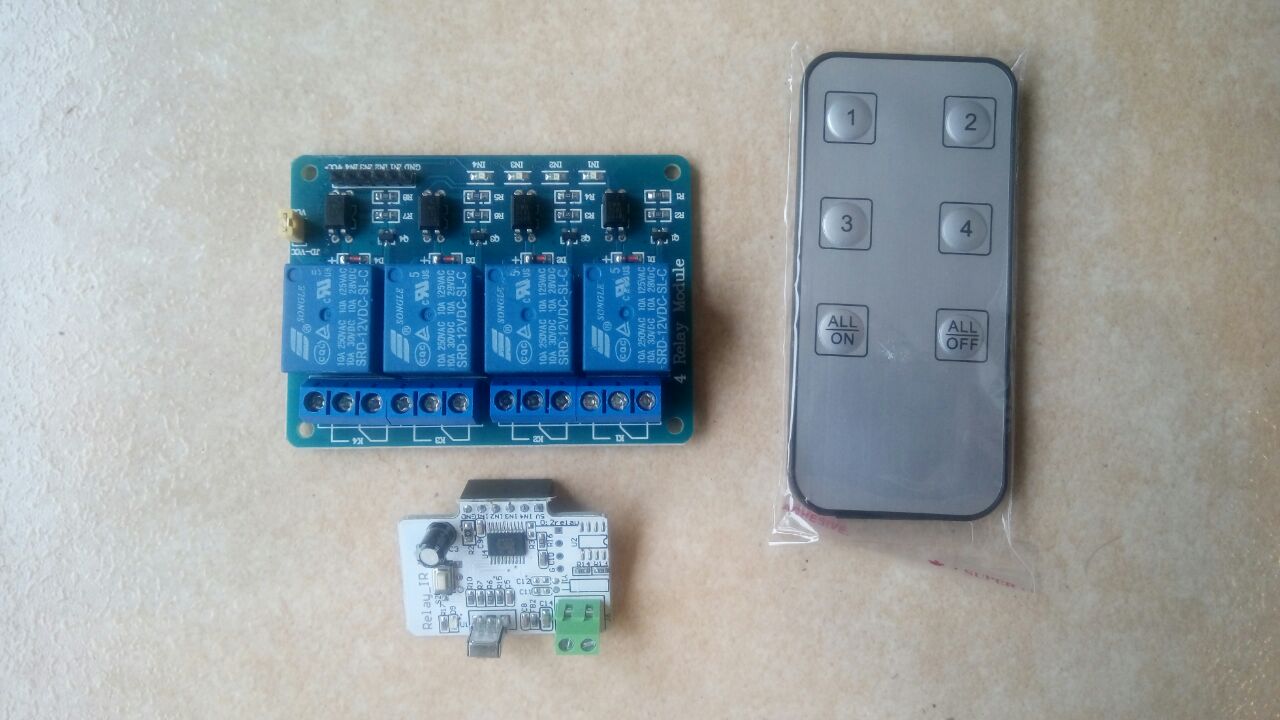

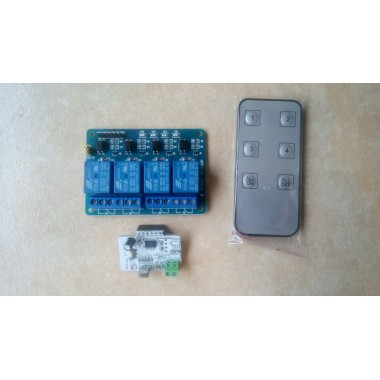

Modulo de 4 reles comandados por control remoto infrarrojo.

COD: FUT30606

Peso: 0.050 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 23267.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Technical parameters:
Receiver board power supply: 5V (5V to 5V positive, GND is negative 5V)
Board dimensions: length 38 * width 27mm * height 20mm
Static current: less than 10mA; all pull current: less than 230mA,
Remote distance: 12 meters,
Load capacity relay: 250VAC-10A, 125VAC-10A, 30VDC-10A, 28VDC-10A, can drive most household appliances or other equipment to reach the remote control.
