1024x600 7 LVDS LCD with Capacitive Touch for pcDuino3
Display Touch Capacitivo para pcDuino3.
COD: LS124201007
Peso: 0.300 Kg
Disponibilidad: En Stock
ARS 138813.00
El producto no está disponible para la venta en este momento
Características
Product Description

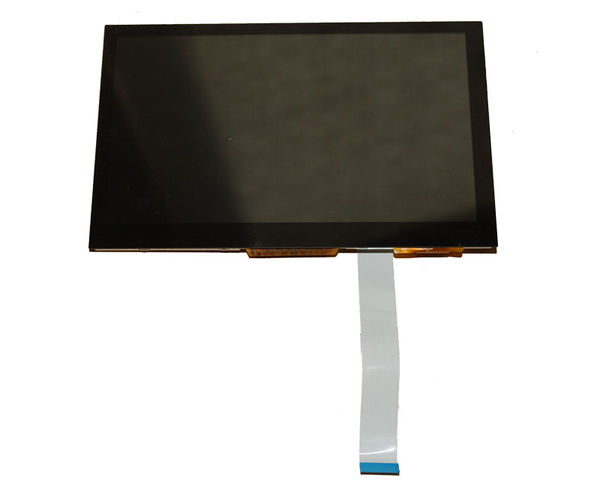

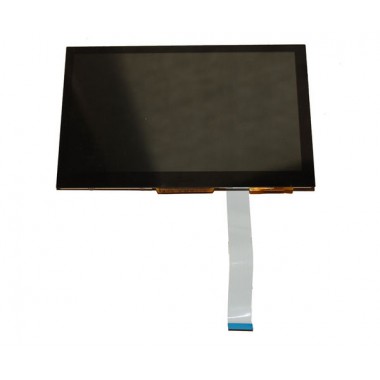

This is a custom made 7" LVDS LCD with capacitive touch for pcDuino3. It has a resolution of 1024x600.
To use the LVDS screen, please flash pcDuino3 with the kernel that support LVDS.
As the touch driver hasn't been complied into the kernel for early version, we may want to manullay load it. The touch driver can be downloaded from:https://github.com/pcduino/modules/tree/master/touch/ft5x
Copy ft5x_ts.ko on the pcDuino, and run:
$insmod ft5x_tx.ko
Items Included:

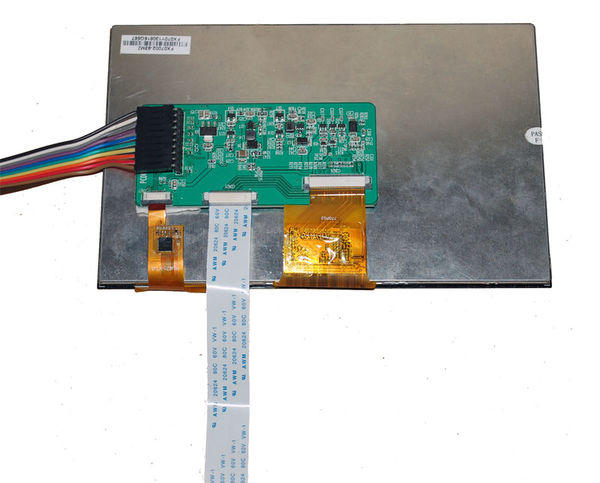

- 1 x LVDS screen with driver board
- 1 x Ribbon cable
- 10 x Male to female jumper wires
Download:
