Teensy 3.x Feather Adapter
Adaptador para que puedas usar la placa Teensy 3 con todos los accesorios Feather.
COD: D003200
Peso: 0.004 Kg
Disponibilidad: En Stock
ARS 12413.00
El producto no está disponible para la venta en este momento
Características
DESCRIPTION
Oh man, is this not the best thing ever? You can now use the awesome Teensy 3 with any and all of our FeatherWings or Feather accessories and even get built-in LiPoly charging!

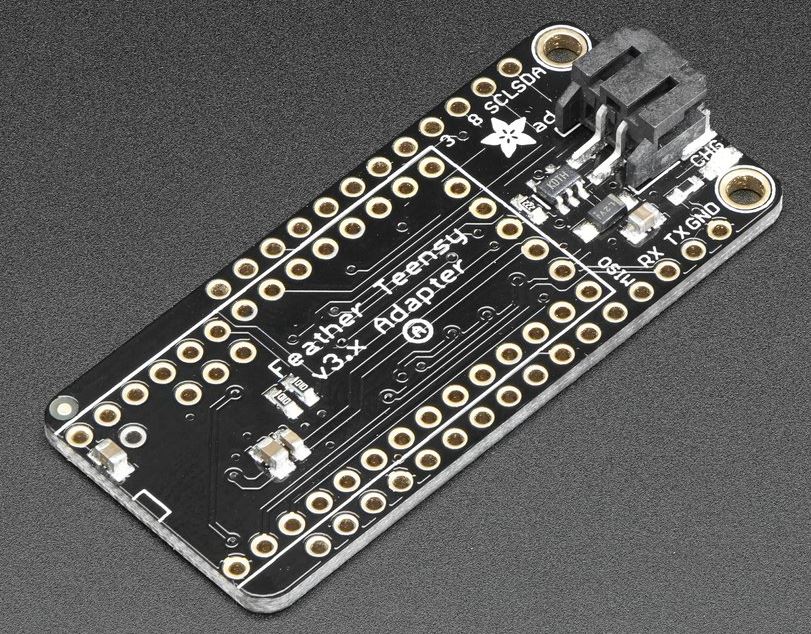

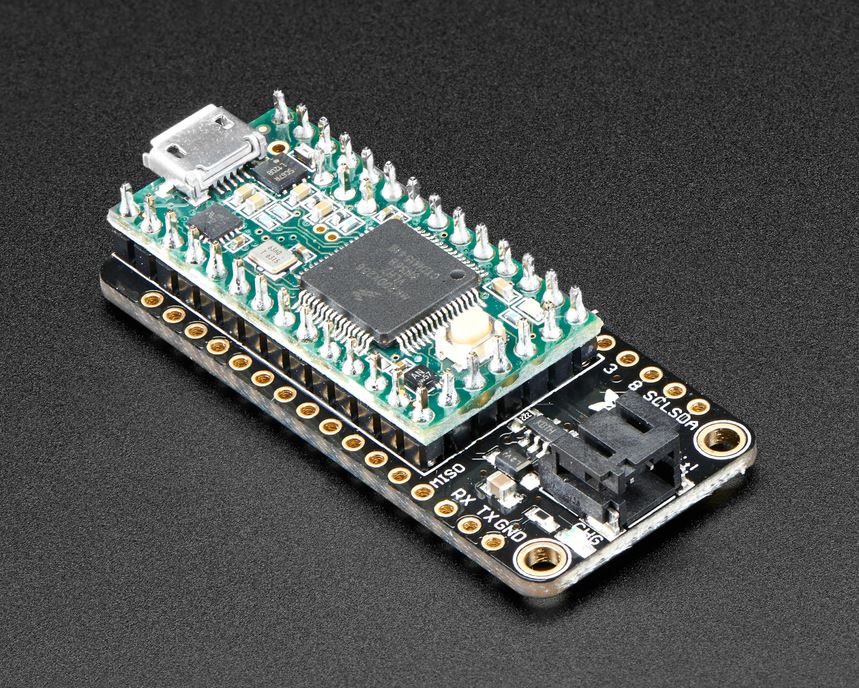

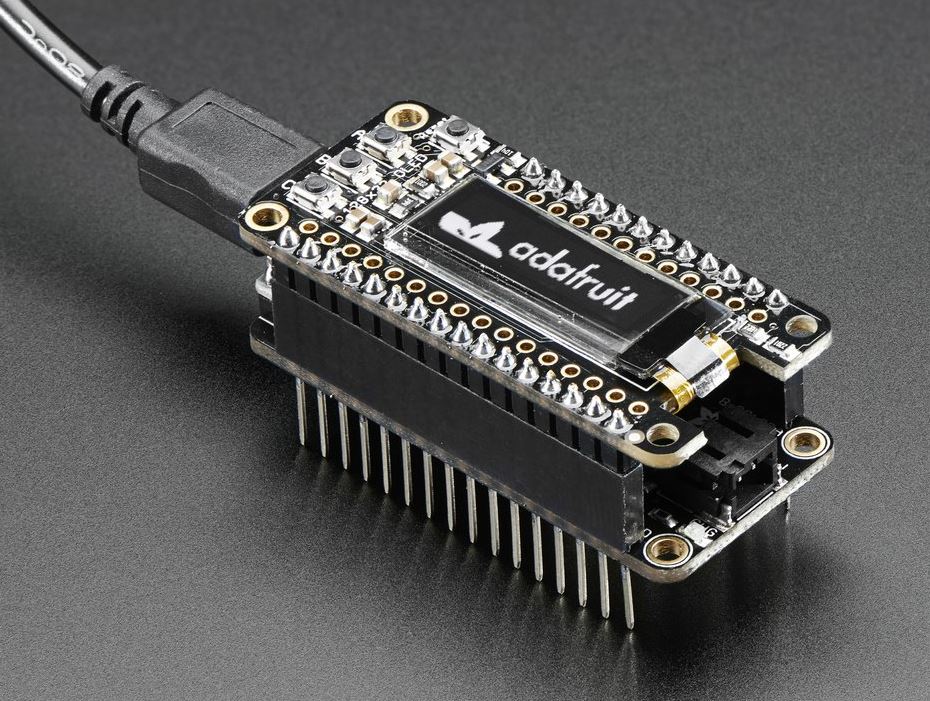

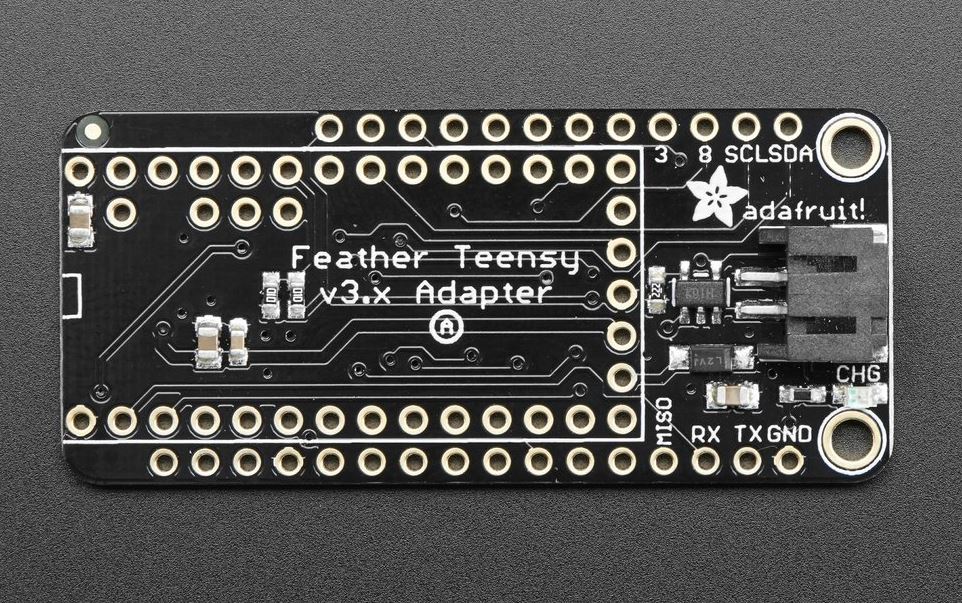

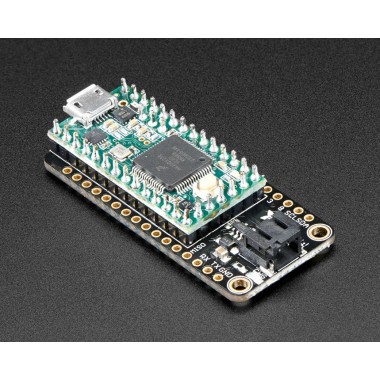

This Feather adapter rearranges the pins of a Teensy 3.x to give you the same shape and pinout for our Feathers. We've tested our FeatherWings so far and all are drop-in compatible. It's a great way to take advantage of the Feather ecosystem. Give your Teensy a stepper/DC motor driver, GPS, LED matrix or OLED add-on with ease. With the space left over, we even added in a 500mA LiPoly charger that automatically charges over USB and will switch over to the LiPo when USB is unplugged. There's also a 100K resistor divider for monitoring the battery voltage connected to A7

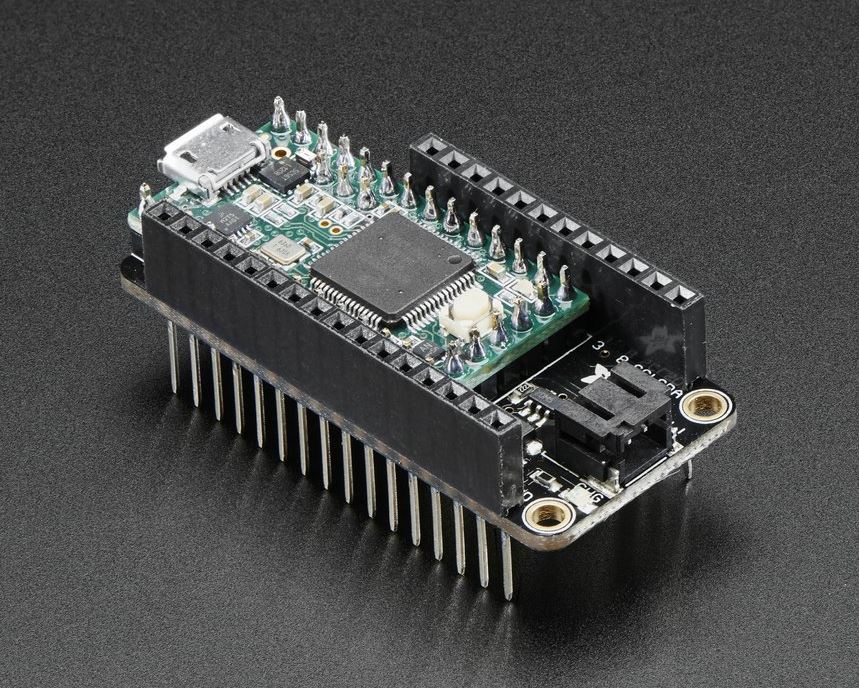

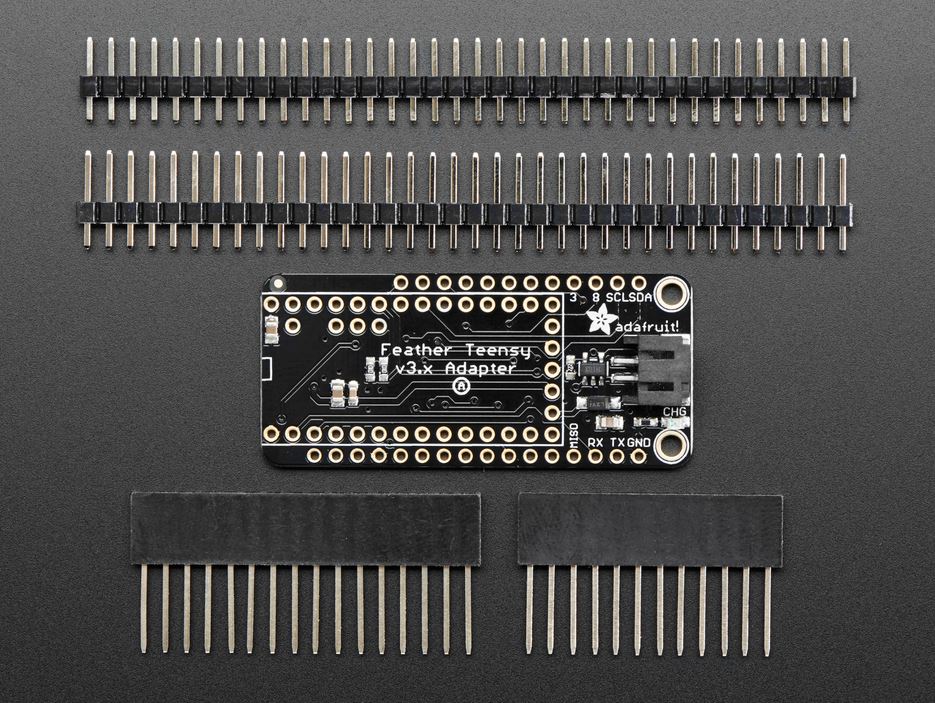

Comes with one assembled adapter, shorty headers for attaching your Teensy 3, and both standard and stacking headers so you can use your Teensy in a breadboard and even plug a shield on top. Some soldering is required!
Teensy 3.x and LiPoly battery not included! (But we do stock them in the shop for your convenience)
TECHNICAL DETAILS
Rev A accidentally connects the Teensy's RTC VBAT pin to the Lipoly Battery, which may overdrive that pin - to resolve simply do not solder in the Teensy's VBAT pin when assembling!

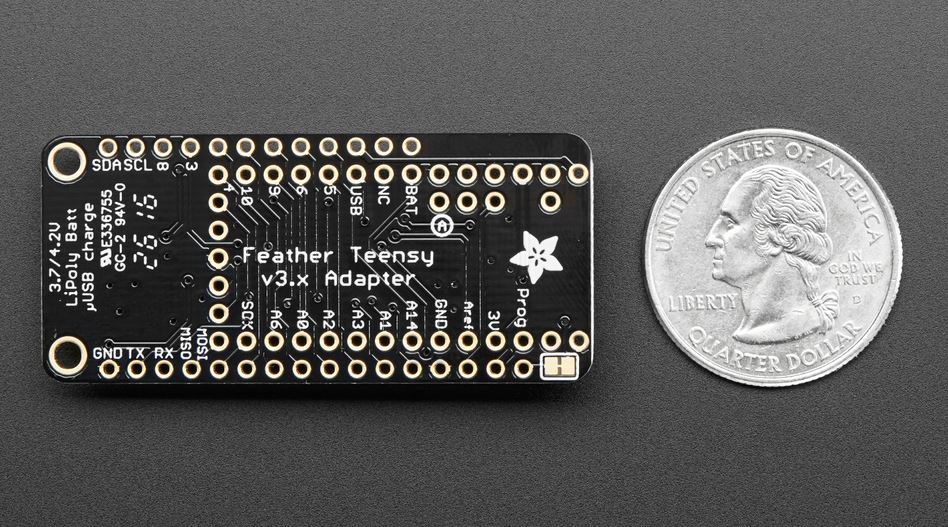

Product Dimensions: 50.8mm x 22.8mm x 7.3mm / 2.0" x 0.9" x 0.3"
Product Weight: 4.3g / 0.2oz
