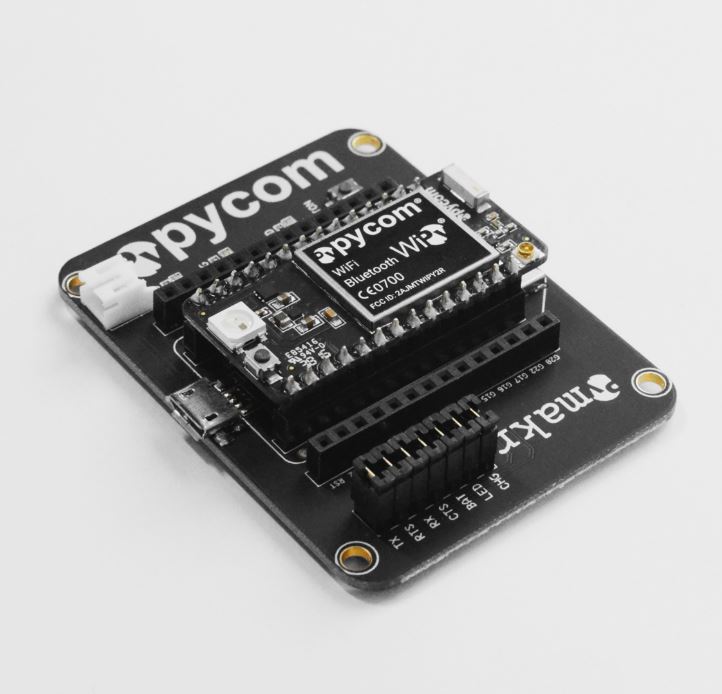

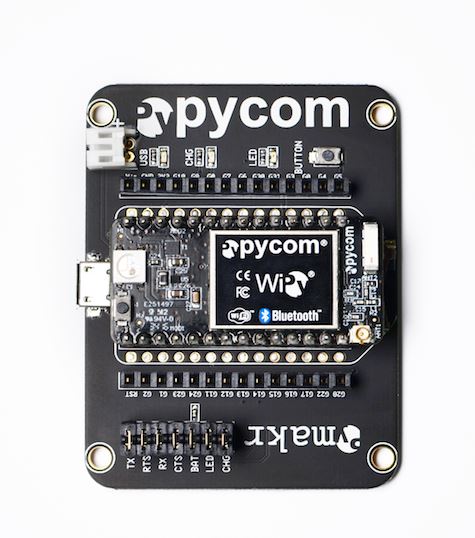

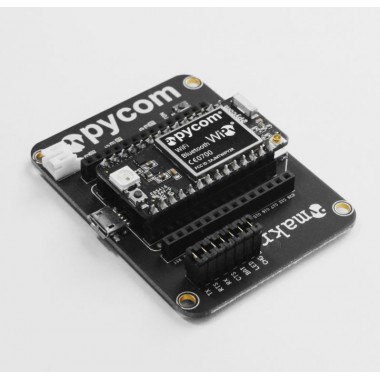

Expansion Board 1.0
Placa de expansión para WiPy 2.0, LoPy, SiPy, FiPy y GPy. Añade posibilidad de alimentar y cargar una batería, almacenar información en microSD, entre otras opciones.
COD: PY00004
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 51505.00
El producto no está disponible para la venta en este momento
Características
Product Description:
The expansion board is compatible with both the WiPy 2.0, LoPy, SiPy, FiPy and GPy.
Specifications:
- USB and LiPo battery powered.
- FT234XD USB to serial converter.
- LiPo battery charger (BQ24040 ), with options for 2 different charging currents (100mA and 450mA).
- TPS2115A with reverse voltage protection.
- MicroSD card slot.
- Three female headers to easily plug in the Wipy 2.0, LoPy, SiPy
or FiPy - JST style battery connector.
- Power LED and charge status LED.
- 1 user LED and 1 user switch.
- Battery voltage monitoring via the WiPy ADC.
- Lots of jumpers to enable/disable features.
- Dimensions: 65 x 50 x 12 mm.
user_manual_exp_board.pdf (515 Kb)
