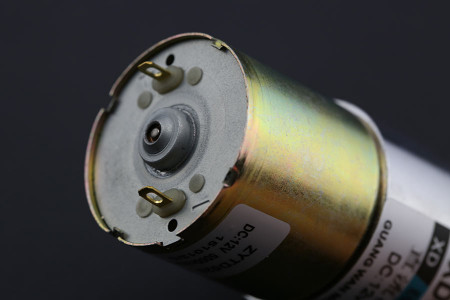

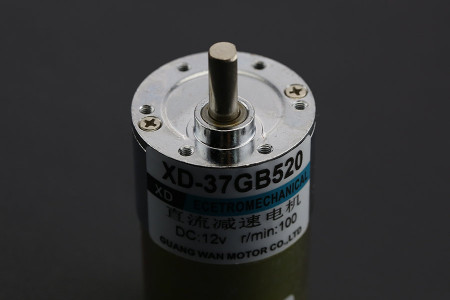

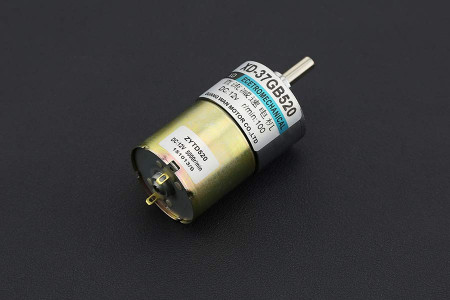

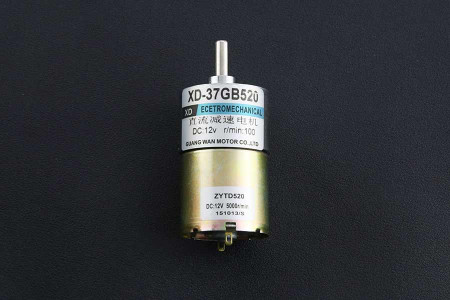

Metal DC Geared Motor - 12V 100RPM 42kg.cm
Motorreductor DC 12V - 50:1 - con engranajes de metal. Torque 42kg.cm.
COD: DFFIT0492B
Peso: 0.210 Kg
Disponibilidad: Sin Stock
ARS 46188.00
El producto no está disponible para la venta en este momento
Características
This is a metal DC geared motor, 100% pure copper coils, high-density molecular layer, 50:1 metal reducer, small size, large torque. The maximum torque could arrive 42 kg.cm, stable and durable!
SPECIFICATION
Rated voltage: 12 V
Gear reduction ratio: 50:1
D output shaft diameter: 6 mm
No-load speed: 100 RPM @ 12 v
No-load current: 0.17 A
Rated speed: 93 RPM @ 12 v
Current rating: 0.68 A
Rated torque: 7 kg.cm
Stall torque: 42 kg.cm
Stall current: 2.19 A
Power: 5W
Weight: 210 g
Gear reduction ratio: 50:1
D output shaft diameter: 6 mm
No-load speed: 100 RPM @ 12 v
No-load current: 0.17 A
Rated speed: 93 RPM @ 12 v
Current rating: 0.68 A
Rated torque: 7 kg.cm
Stall torque: 42 kg.cm
Stall current: 2.19 A
Power: 5W
Weight: 210 g
SHIPPING LIST
Metal DC Geared Motor - 12V 100RPM 42kg.cm x1
