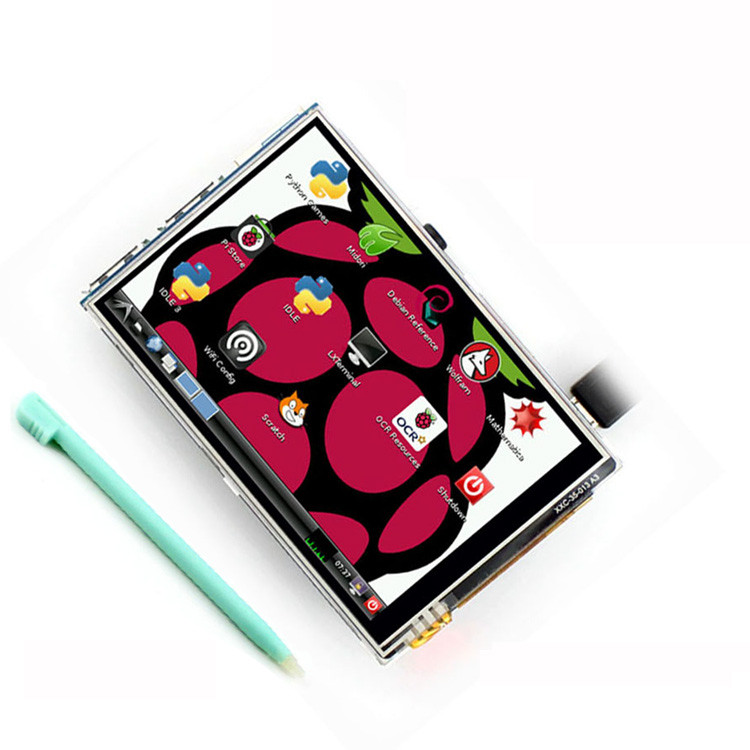

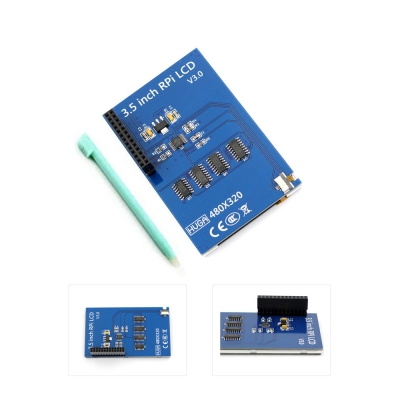

3.5 Inch 320 X 480 TFT LCD Display Touch Board For Raspberry Pi
Pantalla touch resistiva para la Raspberry Pi 2 modelos B y RPI B+
COD: HTHR0118
Peso: 0.100 Kg
Disponibilidad: En Stock
ARS 37902.00
El producto no está disponible para la venta en este momento
Características
Parameter:
| Touch Screen Controller | XPT2046 |
|---|---|
| Colors | 65536 |
| Backlight | LED |
| Resolution | 320*480 (Pixel) |
| Aspect Ratio | 8:5 |
| Power Consumption | TBD |
| Backlight Current | TBD |
| Operating Temp. (Centigrade) | TBD |
| LCD Type | TFT |
| LCD Interface | SPI |
| Touch Screen Type | Resistive |
Interface Definition:
| PIN NO. | SYMBOL | DESCRIPTION |
|---|---|---|
| 1, 17 | 3.3V | Power positive (3.3V power input) |
| 2, 4 | 5V | Power positive (5V power input) |
| 3, 5, 7, 8, 10, 12, 13, 15, 16 | NC | NC |
| 6, 9, 14, 20, 25 | GND | Ground |
| 11 | TP_IRQ | Touch Panel interrupt, low level while the Touch Panel detects touching |
| 18 | LCD_RS | Instruction/Data Register selection |
| 19 | LCD_SI / TP_SI | SPI data input of LCD/Touch Panel |
| 21 | TP_SO | SPI data output of Touch Panel |
| 22 | RST | Reset |
| 23 | LCD_SCK / TP_SCK | SPI clock of LCD/Touch Panel |
| 24 | LCD_CS | LCD chip selection, low active |
| 26 | TP_CS | Touch Panel chip selection, low active |
Package included:
1 x 3.5 Inch 320 X 480 TFT LCD Display Touch Board
