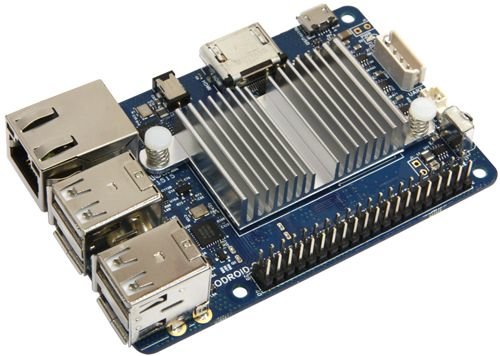

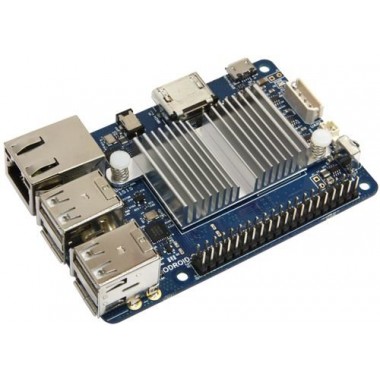

ODROID-C1-Plus
La placa-computadora Odroid C1+ es ideal para procesos de uso general en desarrollos software.
COD: OD058A
Peso: 0.040 Kg
Disponibilidad: Sin Stock
ARS 125220.00
El producto no está disponible para la venta en este momento
Características
Why settle for a lower specification single-board computer? For less money, get a quad-core CPU + dual-core GPU + 1GB DDR3 RAM + Gigabit Ethernet + 4x USB2.0 ports + infrared receiver + more!
The C1+ makes the perfect single-board computer for general purpose computing, software development and projects. The ODROID-C1+ gives loads of satisfaction and fun with incredible performance at a tiny price.
Check out the December 2014 issue of ODROID Magazine for all the details of this great board.

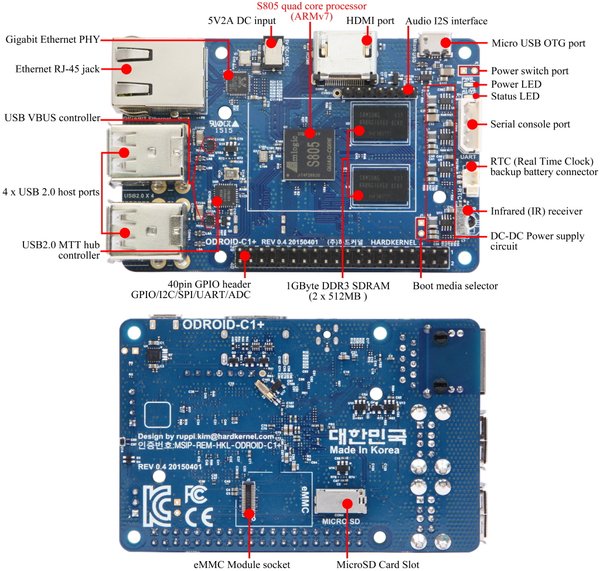

KEY FEATURES
- Powerful Linux/Android Computer
- 1.5GHz quad-core CPU, dual-core GPU, 1GB RAM
- 10/100/1000Mbps Ethernet with RJ-45 LAN jack
- 4 x high speed USB2.0 host ports
- 40 GPIO pins (quasi-Raspberry Pi compatible - pins 37, 38, and 40 are not compatible with the Pi B+ as they are dedicated for analog inputs)
- Linux or Android available
- Size: 85 x 56 x 18 mm, Weight: 40g
- Package includes main board
UPGRADED FEATURES
- Full-sized HDMI connector (Type A)
- Heat sink included (a $3.95 value)!
- Expanded microSD card compatibility - The original C1 worked optimally with a specific set of microSD cards, and using a non-compliant card would sometimes result in a slow-booting or non-booting image. The C1+ is compatible with a wider array of microSD cards.
- Improved CEC functionality - The CEC hardware has been updated to operate regardless of the presence of an RTC backup battery.
- USB OTG power path - A small hardware modification could be performed on the original C1 to allow it to be powered via the USB OTG port. This modification is now standard with the C1+ model.
- I2S signals exposed for external audio DAC - The I2S signals can be easily accessed on the C1+ in order to permit the use of an external audio Digital-to-Analog Converter (DAC).
NOT INCLUDED
- No power supply included - Consider an ODROID 5VDC/2A power supply or an ODROID Smart Power supply, both available on this site
- No microSD or eMMC card included - eMMC memory is much faster than microSD memory
- No case included
- No HDMI cable included - needed to connect to a display device
RECOMMENDED ACCESSORIES
DISCUSS
- Powered by 2.5mm barrel connector, or micro USB port.
- Android source code available now: http://odroid.com/dokuwiki/doku.php?id=en:c1_building_android
- C1 Users Guide - http://magazine.odroid.com/assets/c1/C1%20User%20Manual%2020150701.pdf
- C1 Intro Video - https://www.youtube.com/watch?feature=player_embedded&v=DvJSCzIGr1E
- C1 Performance Video - https://www.youtube.com/watch?feature=player_embedded&v=L2ZRW-AagSQ
- C1 Tinkering Kit Video - https://www.youtube.com/watch?v=zocRA1oNY60&feature=player_embedded
- 16x2 LCD+IO Shield Video - https://www.youtube.com/watch?feature=player_embedded&v=SkbZLDl5zTU
- Tekken6 emulation on ODROID-C1 Video - https://www.youtube.com/watch?v=p8yGS2SHqpA
- ODROID-C1 Wiki - http://odroid.com/dokuwiki/doku.php?id=en:odroid-c1
- ODROID-C1 Schematics - http://dn.odroid.com/homebackup/odroid-c_rev0.3_201401107.pdf
- ODROID-C1 PCB Mechanical Drawings (AutoCAD format) - http://dn.odroid.com/homebackup/C_MAIN_REV0.3_MECH_DWG.DWG
- ODROID-C1 Technical Details - http://hardkernel.com/main/products/prdt_info.php?g_code=G141578608433&tab_idx=2
- ODROID Magazine Article - http://magazine.odroid.com#201509
- Display Resolution Compatibility Chart -http://odroid.com/dokuwiki/doku.php?id=supported_resolutions
- ODROID-C1 Post-Installation Tips (Jan Holthuis) - http://homepage.ruhr-uni-bochum.de/Jan.Holthuis/misc/odroid-c1-post-installation-tips/
- Mikronauts review of C1 and comparison to Banana Pro, MIPS Create CI20 and Raspberry Pi B+ -http://www.mikronauts.com/hardkernel/odroid-c1-review/
- CNX Software Comparison between C1 and RPi2 - http://www.cnx-software.com/2015/02/02/raspberry-pi-2-odroid-c1-development-boards-comparison/
- CNX Software Article - http://www.cnx-software.com/2014/12/10/hardkernel-odroid-c1-is-a-35-development-board-powered-by-amlogic-s805-quad-core-processor/
- Liliputing Article - http://liliputing.com/2014/12/odroid-c1-35-quad-core-single-board-androidlinux-pc.html
- Linuxgizmos.com Article - http://linuxgizmos.com/35-dollar-quad-core-hacker-sbc-offers-rpi-like-expansion/
- Slashdot Article - http://hardware-beta.slashdot.org/story/14/12/10/1334251/35-quad-core-hacker-sbc-offers-raspberry-pi-like-size-and-io
- Phoronix Article - http://www.phoronix.com/scan.php?page=news_item&px=MTg1OTQ
