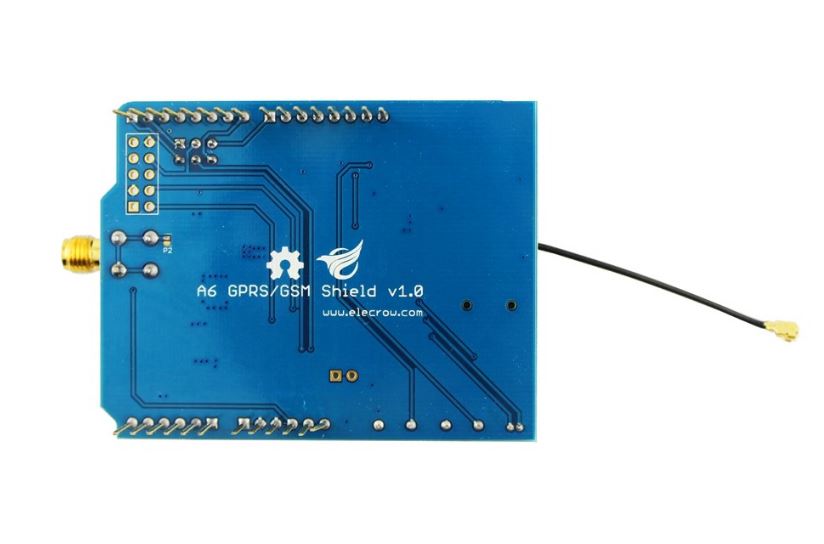

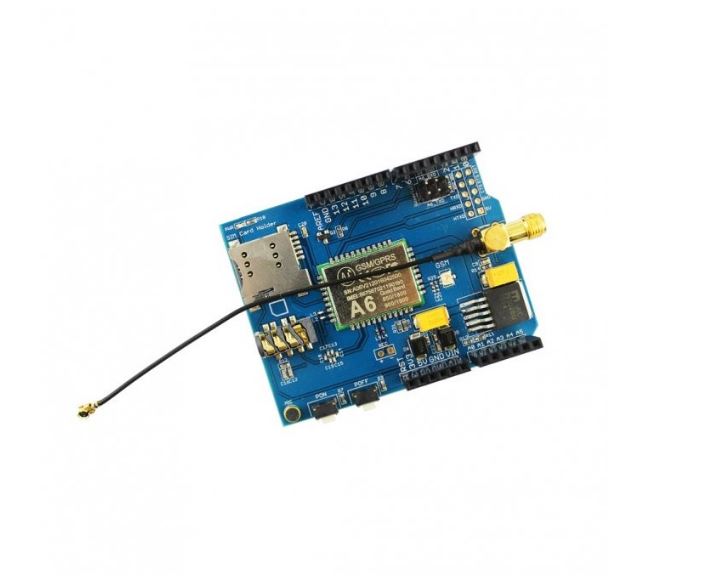

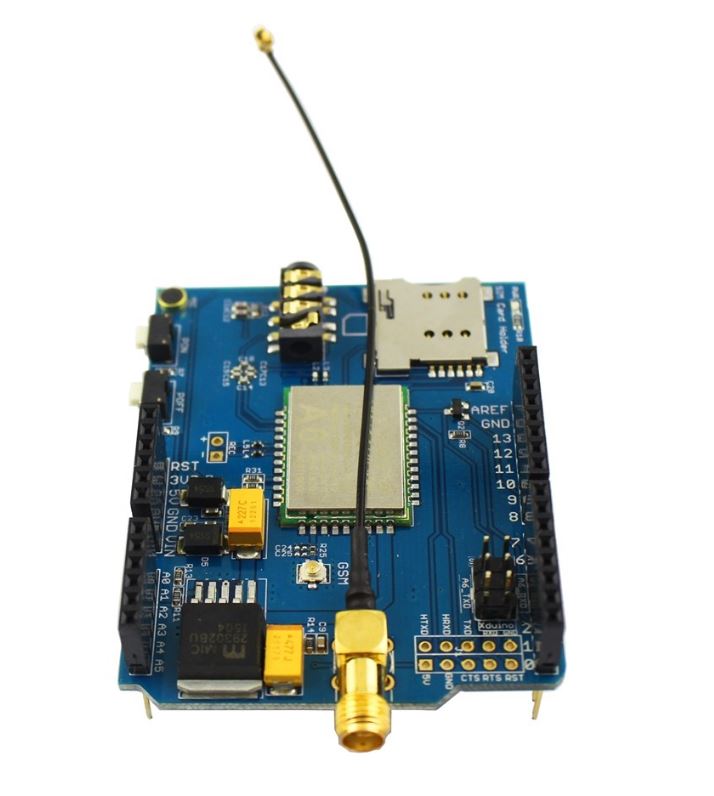

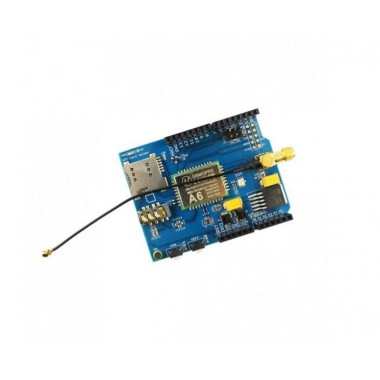

A6 GPRS/GSM Shield

Shield GPRS/GSM basado en módulo A6, de bajo consumo ideal para aplicaciones M2M.

COD: EACS20950A

Peso: 0.032 Kg

Disponibilidad: Sin Stock

ARS 36155.00

El producto no está disponible para la venta en este momento

Características

A6 GPRS/GSM Shield (ER-ACS20950A) Arduino compatible, GSM/GPRS 850,900,1800,1900MHZ

This is a A6 GPRS/GSM Shield, which is use the newest A6 gprs/gsm module, A6 is a low-cost but efficient chip. With its ultra-small size, low power consumption and wide operating temperature range, A6 is an ideal solution for M2M applications, for automotive, industrial and PDA, personal tracking, power environmental monitoring, wireless POS, smart metering, and other M2M applications , to provide comprehensive GSM / GPRS text messaging, voice and data transmission services. We design this A6 shield for making it work with Arduino/Crowduino more convenient.

Features

Arduino compatible
Work voltage: 5-12V
Operating temperature -30 �?? to + 80 �??;
1KG peak suction
Low standby current
Standby average current 3ma less;
Support the GSM / GPRS four bands, including 850,900,1800,1900MHZ;
Support 2G GSM network worldwide;
GPRS Class 10;
Sensitivity <-105;
Support voice calls;
Support SMS text messaging;
Support GPRS data traffic, the maximum data rate, download 85.6Kbps, upload 42.8Kbps;
Supports standard GSM07.07,07.05 AT commands and extended commands Ai-Thinker;
Supports two serial ports, a serial port to download an AT command port;
AT command supports the standard AT and TCP / IP command interface;
Support digital audio and analog audio support for HR, FR, EFR, AMR speech coding;
Support ROHS, FCC, CE, CTA certification;
SMT 42PIN

Specifications

Quad-band: 850/900/1800/1900 MHz
GPRS multi-slot: 12, 1 to 12 may be configured
GPRS mobile station: Class B
Compatible with GSM Phase 2/2 +: Class 4 (2W @ 850/900 MHz) Class 1 (1W @ 1800 / 1900MHz)
Current consumption: 1.3mA @ DRX = 5; 1.2mA @ DRX = 9
AT command control: Standard GSM07.07,07.05 AT commands and extended commands Ai-Thinker
SIM Application Toolkit
GPRS Class 10: Up 85.6 kbps (upstream) & 42.8Kbps (downlink)
PBCCH support
Coding scheme: CS 1, 2, 3, 4
Support CSD: Up 14.4 kbps
Support USSD
Stack: PPP / TCP / UDP / HTTP / FTP / SMTP / MUX
