Digital Oscilloscope DIY Kit

Digital Oscilloscope DIY Kit

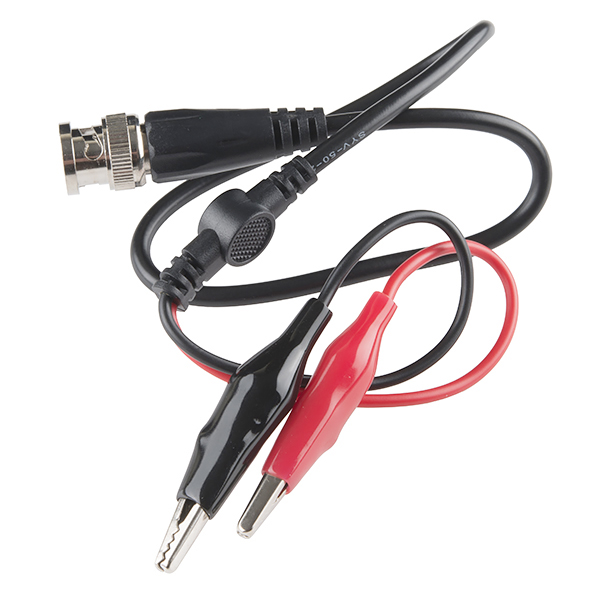

Kit para ensamblar tu propio Osciloscopio Digital!. Posee un ancho de banda de 1MHz y 8 bit de resolución. Incluye puntas de prueba y funciona con una batería de 9 voltios. Debajo de la descripción hay abundante información sobre ensamblado y manejo del mismo.

COD: SFKIT12848

Peso: 0.131 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 97680.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

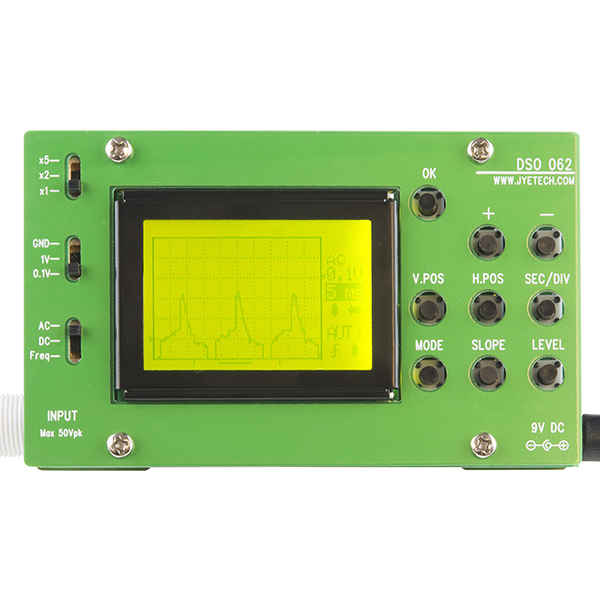

This kit includes everything you need to build your very own, fully functional, digital oscilloscope. Once you’ve got it up and running, the oscilloscope features up to 5M samples/second, 8-bit resolution, up to 50Vpp max input voltage, and more!

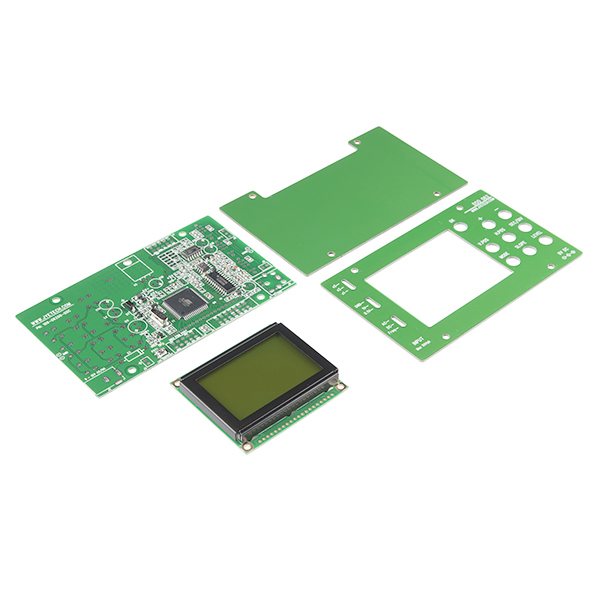

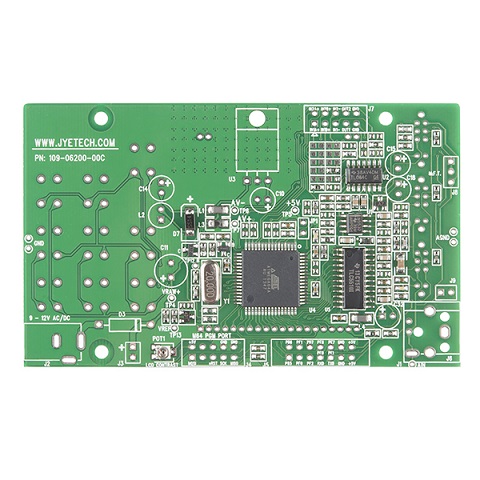

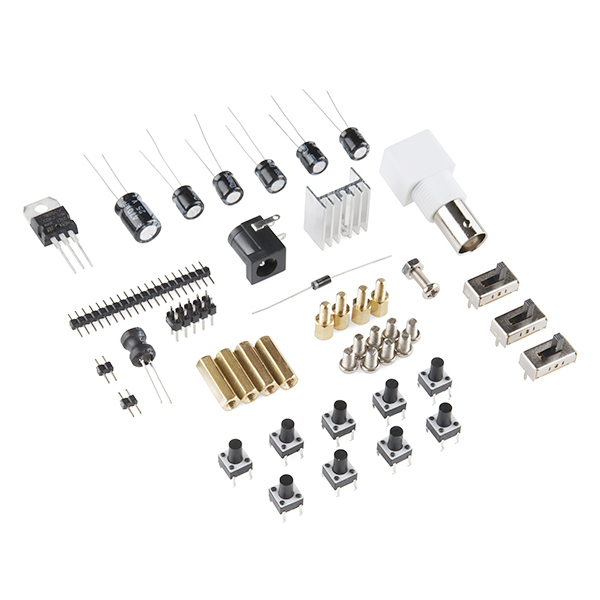

This kit includes a semi-populated PCB, with all of the surface mount components already soldered on for you. The components left for you to solder are all through-hole. This is on the higher end of difficulty as far as through-hole kits go.

 A 9V power supply is required to run the oscilloscope; supply is not included.

Features:

  • 9VDC power supply voltage
  • 5M samples/second (AUTO mode only)
  • 8 bit resolution
  • 256 sample memory depth
  • 1MHz analog bandwidth
  • 100mV/Div-5V/Div sensitivity
  • 1M? impedance
  • 50Vpeak-to-peak max input voltage
  • DC/AC coupling
  • Save and display up to 6 captures to memory
  • Transfer screen capture to PC as a bitmap file (serial adapter not included)

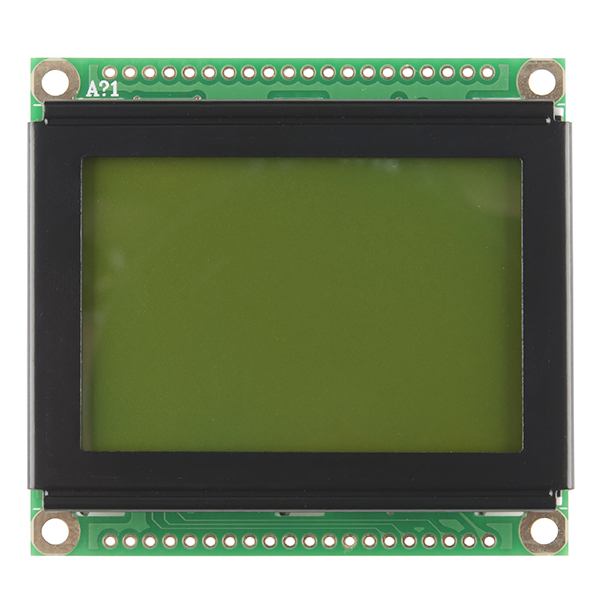

  • Backlit LCD display
  • BNC Connector

Dimensions:

  • 110x65x25mm
  • Weight: 70g
