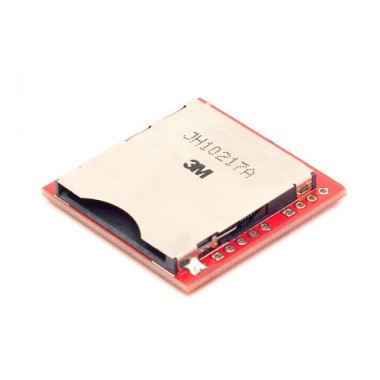

SDLogger - Open Hardware Data Logger
Data logger de alta performance para tarjetas SD, FAT16 y FAT32. Basado en ATmega644P.
COD: SE105990002
Peso: 0.007 Kg
Disponibilidad: En Stock
ARS 76467.00
El producto no está disponible para la venta en este momento
Características

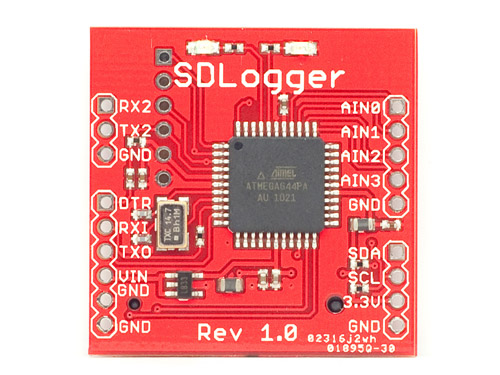

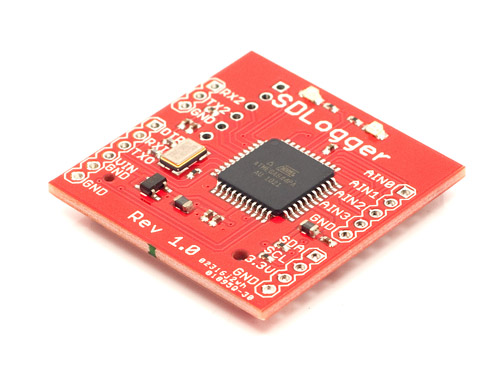

SDLogger is a simple serial logger based on SparkFun/Nathan Seidle's OpenLog. It is using an ATmega644P processor running at 14.7456MHz and logs to full-size SD cards. It supports both standard SD cards (FAT16) and SDHC cards (FAT32). SDLogger ships with OpenLog firmware 1.61 installed (compiled with SDHC/FAT32 support and large 2048 character input buffer) together with an Arduino-compatible bootloader for easy program update.
Features
- Simple to configure and use
- Automatically logs data received on the serial input port
- Can be configured using a config file on the SD card
- Supports 2400, 4800, 9600, 19200, 38400, 57600, 115200 and 230400 serial baud rates at 8-N-1.
- Supports both standard SD cards up to 2GB (FAT16) and SDHC cards up to 16GB (FAT32)
- Large input buffer (2048 characters)

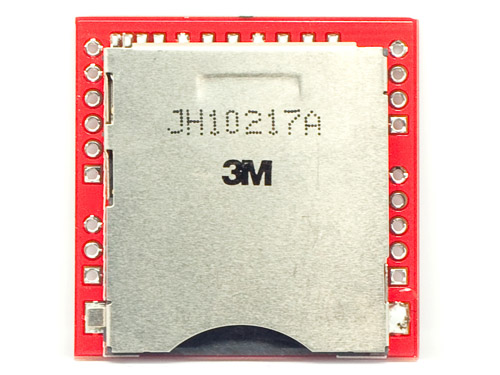

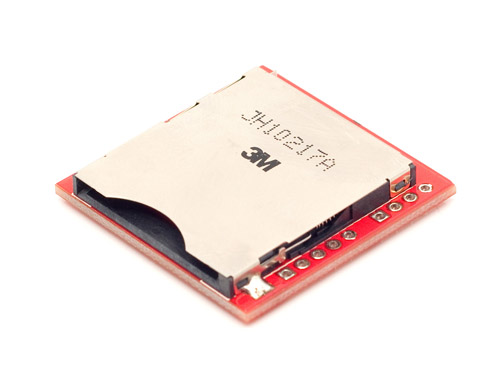

- Full-size SD card form factor
- 14.7456 MHz crystal oscillator for precise baud rate generation
- Input voltage range: 3.3 to 12V
- Arduino-compatible bootloader installed for easy program update
- Full Arduino environment support - can be used as an inexpensive Arduino board for program development
- I/O ports supported in Arduino environment (in addition to the main serial port): 4 analog inputs, second serial port, I2C port
- Simple SDLogger original firmware restore procedure using the Arduino environment
- SDLogger hardware/firmware designed by Saanlima/Magnus Karlsson and released under CC BY-SA v3 license
- Design files, Arduino code and other ported code available on GitHub
