LilyPad Arduino 328 Main Board
Placa Arduino diseñada para ser fácilmente integrada a e-textiles.
COD: SFDEV13342
Peso: 0.009 Kg
Disponibilidad: En Stock
ARS 10967.00
El producto no está disponible para la venta en este momento
Características

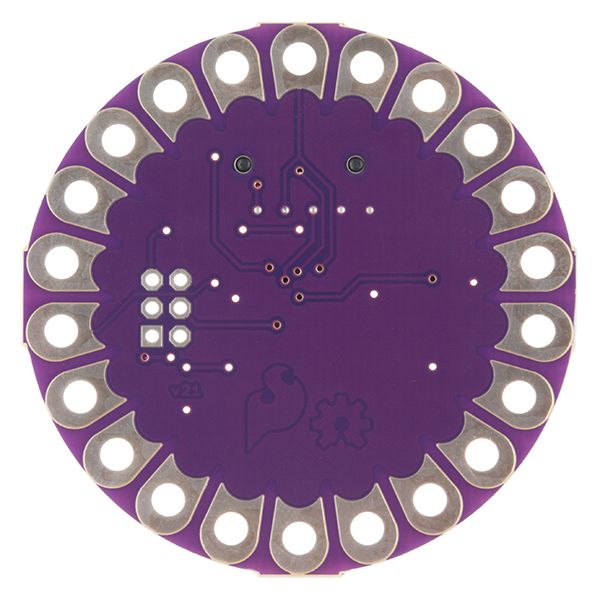

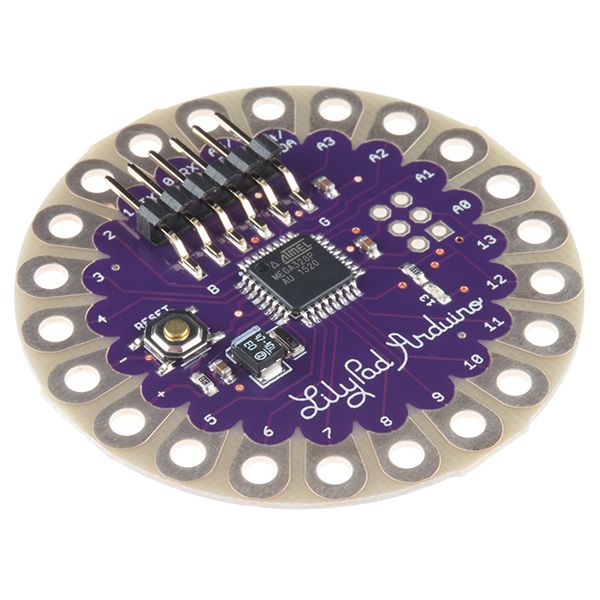

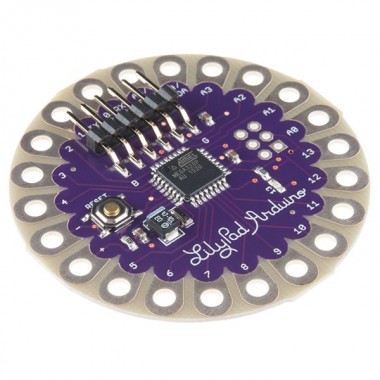

The LilyPad Arduino 328 Main Board is an Arduino-programmed microcontroller designed to be easily integrated into e-textiles and wearable projects. It offers the same functionality you find in other Arduino boards, in a lightweight, round package designed to minimize snagging and profile, with wide tabs that can be sewn down and connected with conductive thread.

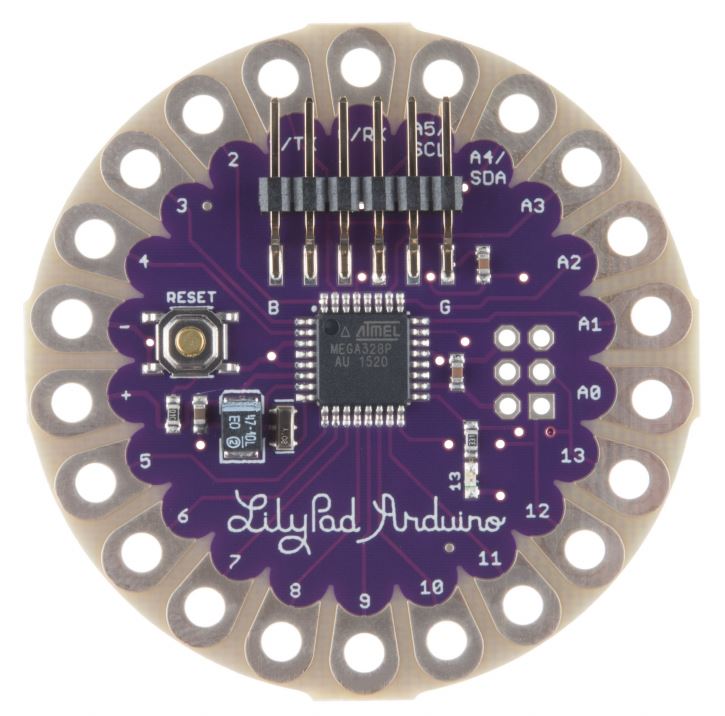

The LilyPad Arduino consists of an ATmega328 with the Arduino bootloader and a minimum number of external components to keep it as small (and as simple) as possible. This board will run from 2V to 5V and offers large pin-out holes that make it easy to sew and connect. Each of these pins, with the exception of (+) and (-), can control an attached input or output device (like a light, motor, or switch).
LilyPad is a wearable e-textile technology developed by Leah Buechley and cooperatively designed by Leah and SparkFun. Each LilyPad was creatively designed to have large connecting pads to allow them to be sewn into clothing. Various input, output, power, and sensor boards are available. They’re even washable!
Note: A portion of this sale is given back to Dr. Leah Buechley for continued development and education of e-textiles and also to Arduino LLC to help fund continued development of new tools and new IDE features.

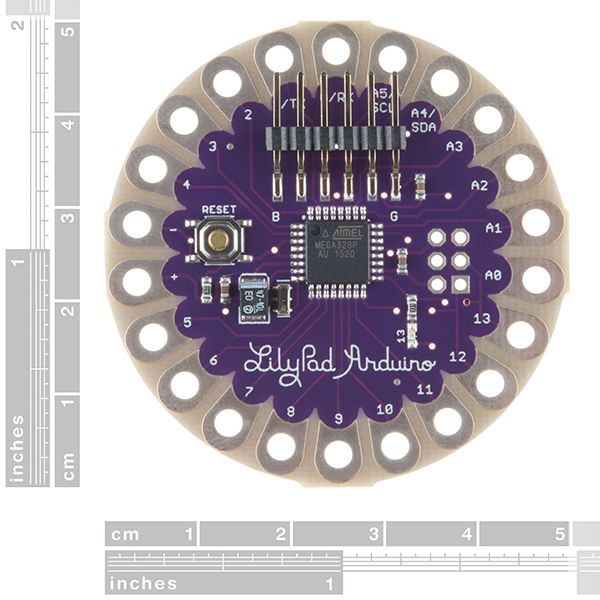

Dimensions:
- 50mm outer diameter
- Thin 0.8mm PCB
Documents:
doc8161_98.pdf (12825 Kb)
sparkfun_lilypad_main_board_v21.zip (99 Kb)
