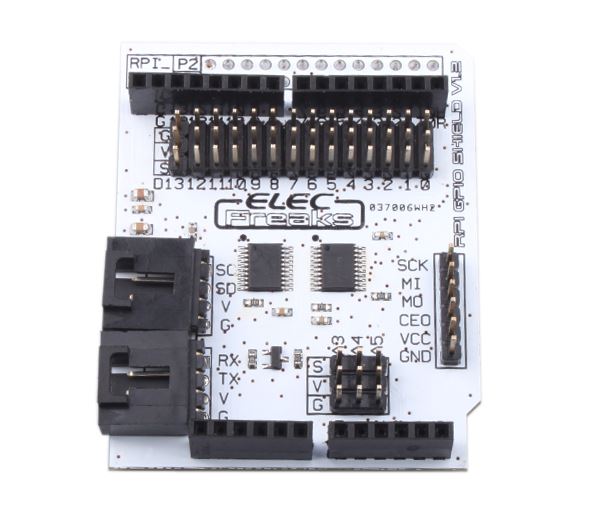

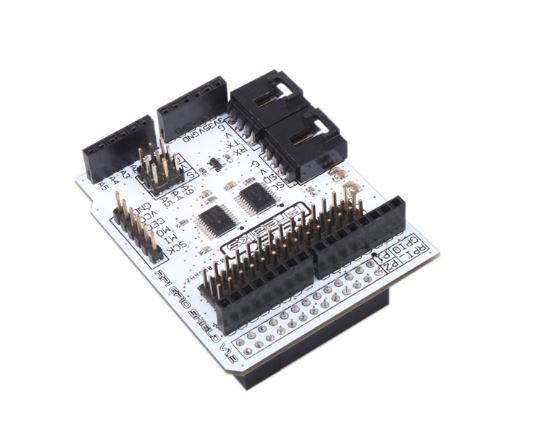

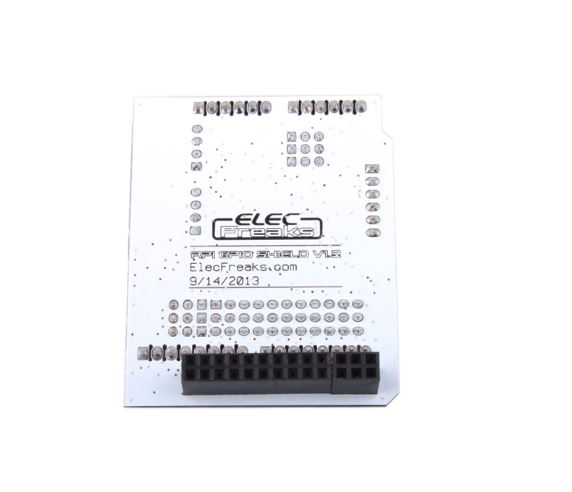

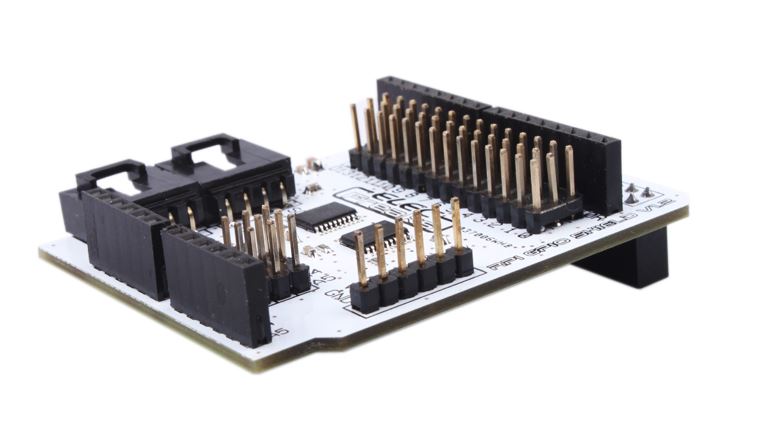

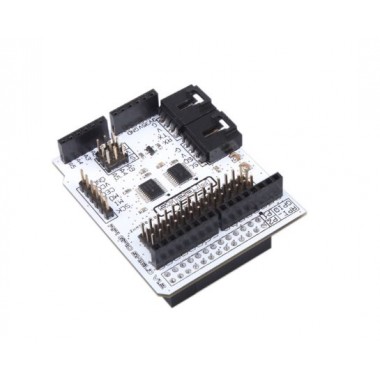

RPI GPIO Shield

RPI GPIO Shield

Convertí tu Raspberry en Arduino con este shield!

COD: EF03040

Peso: 0.022 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 17516.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description:

RPI GPIO Shield turned Raspberry Pi GPIO into the normally-used Arduino I/O interface. The shield not only maintained most of Arduino UNO I/O interface�?but also expanded IIC interface�?UART TX/RX interface, and SPI interface, electronic bricks interface. RPI GPIO Shield inherited the Arduino UNO I / O all the features, which can be used to drive LED, sensors, LCD and other electronic modules and components.

Note:

When RPI GPIO Shield connected with Raspberry Pi GPIO, please make sure their pins are corresponding with each other.



Parameter:

  • Fully compatible with Arduino, including Arduino shields
  • Plugs in to Raspberry-Pi GPIO header
  • Voltage safe Bidirectional translator automatically converts between 3.3V for Raspberry-Pi and 5V for Arduino
  • Same form factor as Raspberry-Pi
  • SIZE�?60.24mmx48.36mm

Package List:

  • 1 x RPI GPIO Shield Sample Data

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.
