Emulator and Debugger for MSP430

Emulator and Debugger for MSP430

Emulador y debug para MSP430.

COD: EDPM43149E

Peso: 0.161 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 69063.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

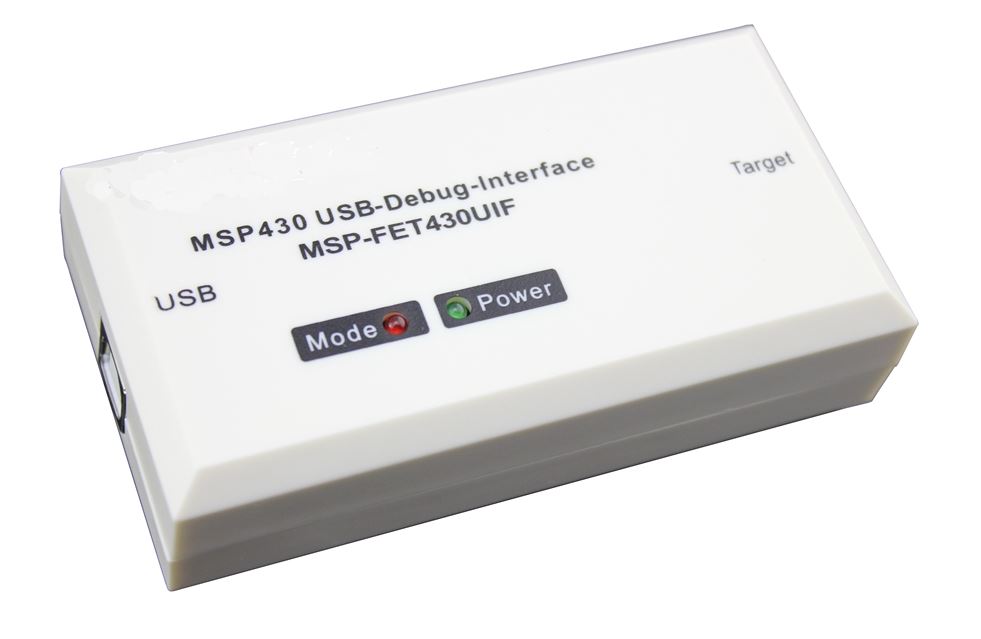

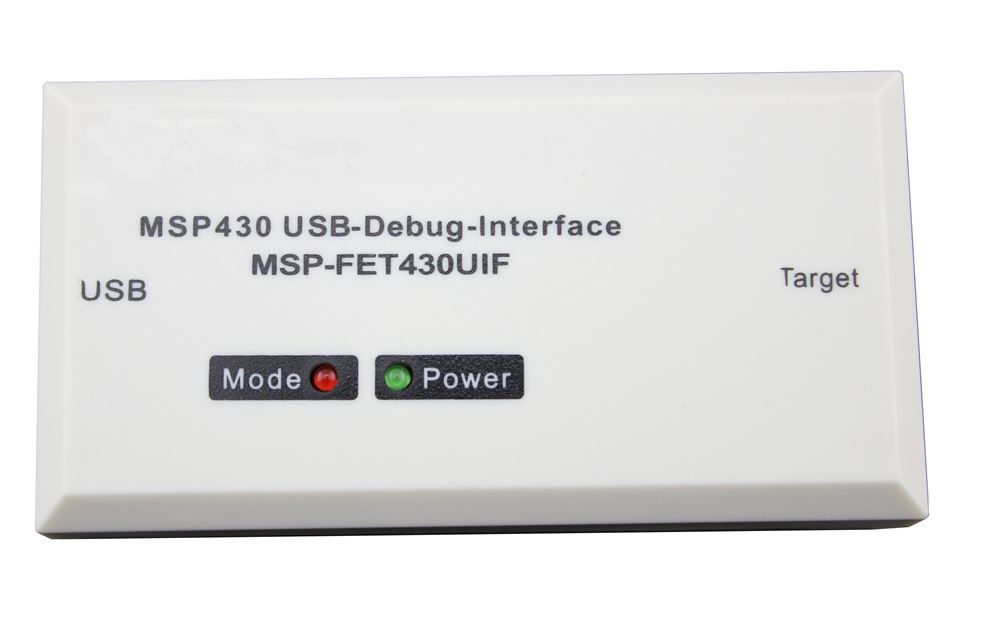

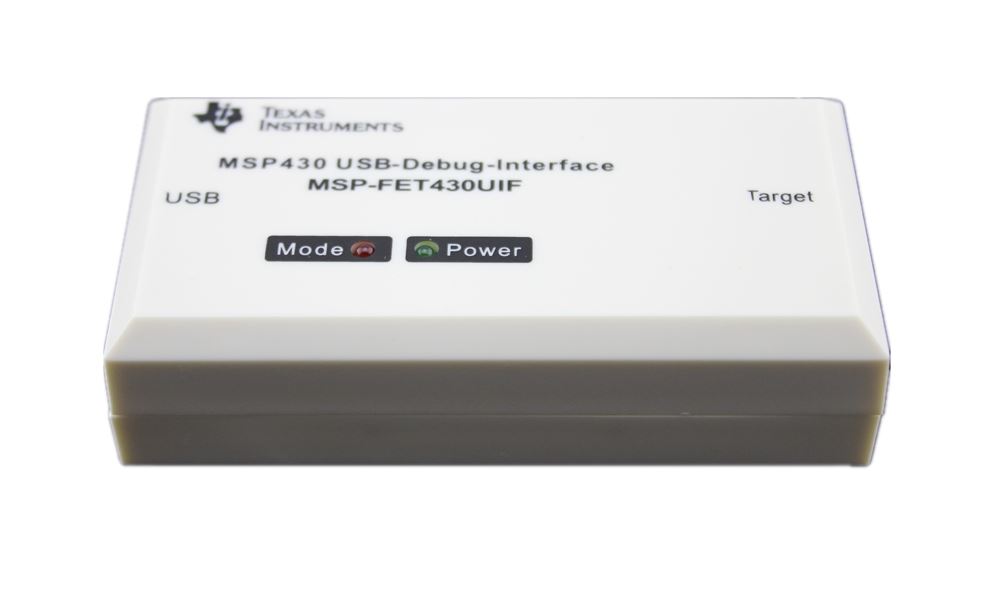

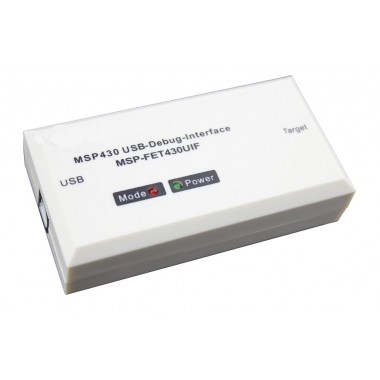

The MSP-FET430UIF is a powerful flash emulation tool to quickly begin application development on the MSP430 MCU. It includes USB debugging interface used to program and debug the MSP430 in-system through the JTAG interface or the pin saving Spy Bi-Wire (2-wire JTAG) protocol. The flash memory can be erased and programmed in seconds with only a few keystrokes, and since the MSP430 flash is ultra-low power, no external power supply is required. The debugging tool interfaces the MSP430 to the included integrated software environment and includes code to start your design immediately. The MSP-FET430UIF development tools supports development with all MSP430 flash devices.

Features

  • USB debugging interface (MSP-FET430UIF) connects a flash-based MSP430 MCU to a PC for real-time, in-system programming and debugging
  • Supports JTAG Security Fuse blow to protect code
  • Supports all MSP430 boards with JTAG header
  • Supports both JTAG and Spy-Bi-Wire (2-wire JTAG) debug protocols

Package list

  • 14-conductor cable x 1
  • MSP-FET430UIF interface module x 1
  • USB Cable x 1
