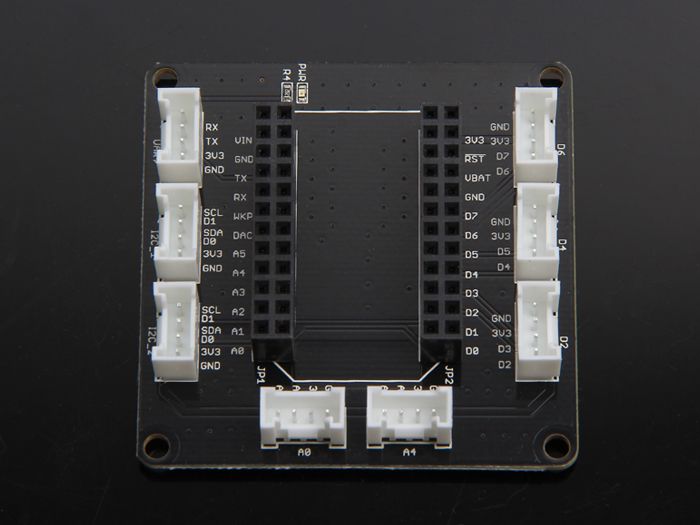

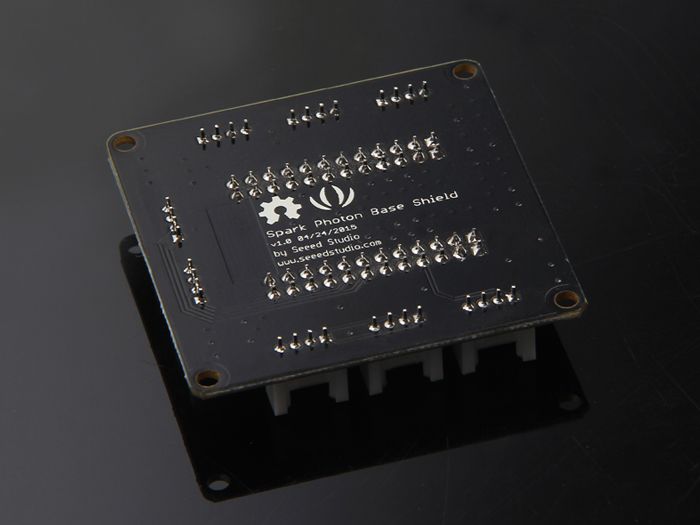

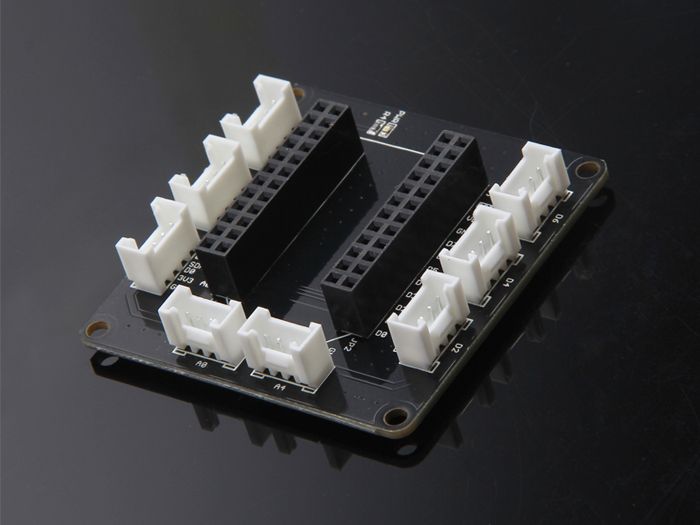

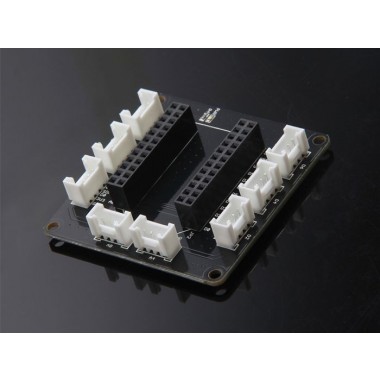

Particle Photon Base Shield

Particle Photon Base Shield

Placa expansora para Particle Photon, para construir aplicaciones mas potentes e inteligentes!

COD: SE103020031

Peso: 0.018 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 23911.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Grove Base Shield for Photon is an expansion board which incorporated the standard Grove interfaces to let you build more powerful and intelligent applications with richer and cost-effective Grove functional modules. It gets three digital ports, two analog ports, two I2C ports and one UART port. It�??s a plug-and-play shield designed to accelerate prototyping dramatically.

Features

  • Compatible with Photon
  • Standard Grove interfaces to connect to a large family of Grove sensors and actuators
  • I2C, UART ports integrated

Specification

  • Grove Ports: 3 digital ports, 2 analog ports, 2 I2C ports and 1 UART port.
  • Dimensions: 53 �? 53 mm
  • Weight: 18g

Application ideas

  • Compact IoT applications such as smart router.

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.
