Gravity:Analog Carbon Monoxide Sensor (MQ7)

Gravity:Analog Carbon Monoxide Sensor (MQ7)

Sensor de Monóxido de Carbono, desde 20 a 2000ppm (sensibilidad ajustable)

COD: DFSEN0132

Peso: 0.010 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 24327.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

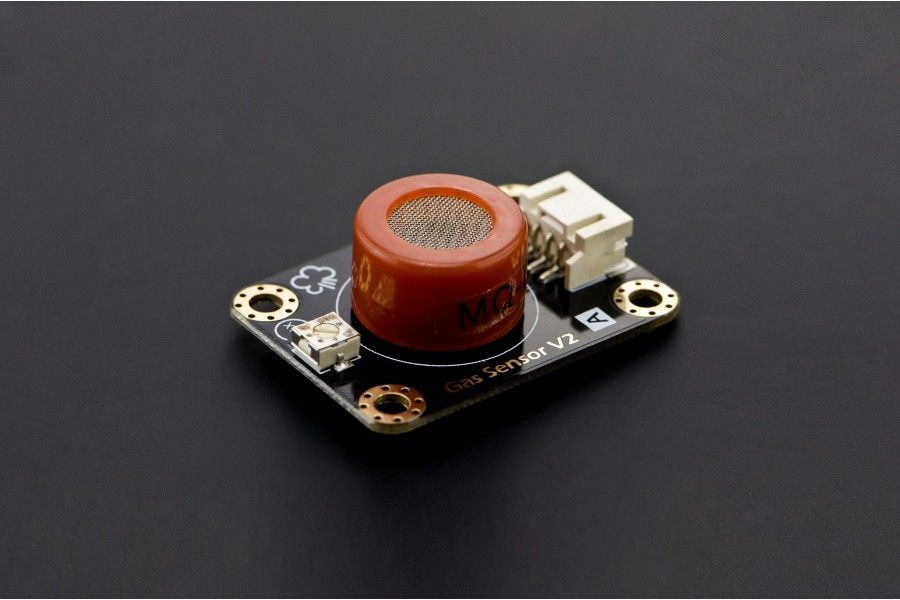

Gravity:Analog Carbon Monoxide Sensor (MQ7)

The MQ7 is a simple-to-use Carbon Monoxide (CO) sensor suitable for sensing CO concentrations in the air. It can detect CO-gas concentrations anywhere from 20 to 2000ppm. The sensitivity can be adjusted by the potentiometer.

Notice:The new version of analog sensor port pin mapping has been changed as the following two features.Please check the tips for changing sensor cable pin mapping while using the I/O Expansion shield. We will continue to update. For the inconvenience caused, please understand.



SPECIFICATION

  • Power supply needs: 5V
  • Interface type: Analog
  • Pin Definition:  1-Output  2-GND  3-VCC
  • High sensitivity to carbon monoxide
  • Fast response
  • Stable and long life

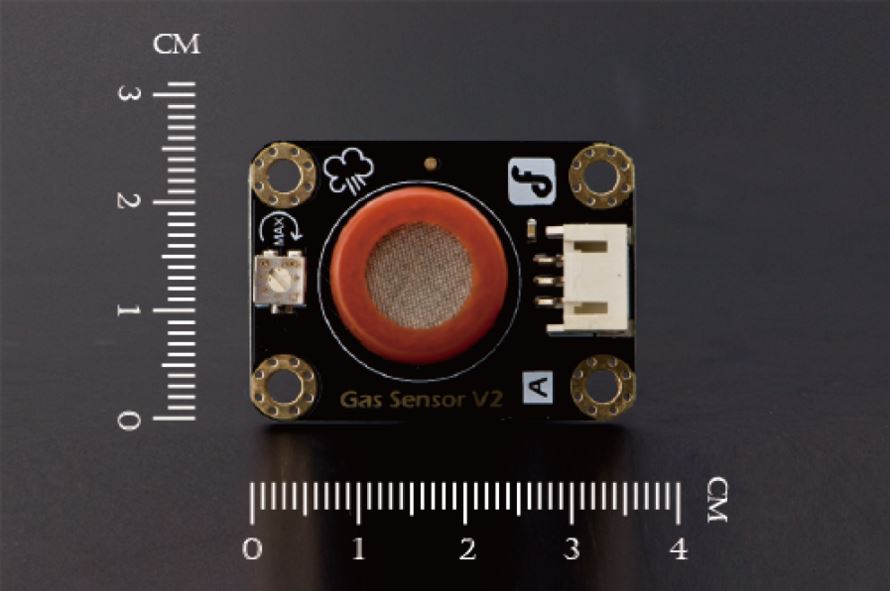

  • Size: 40x20mm

DOCUMENTS
