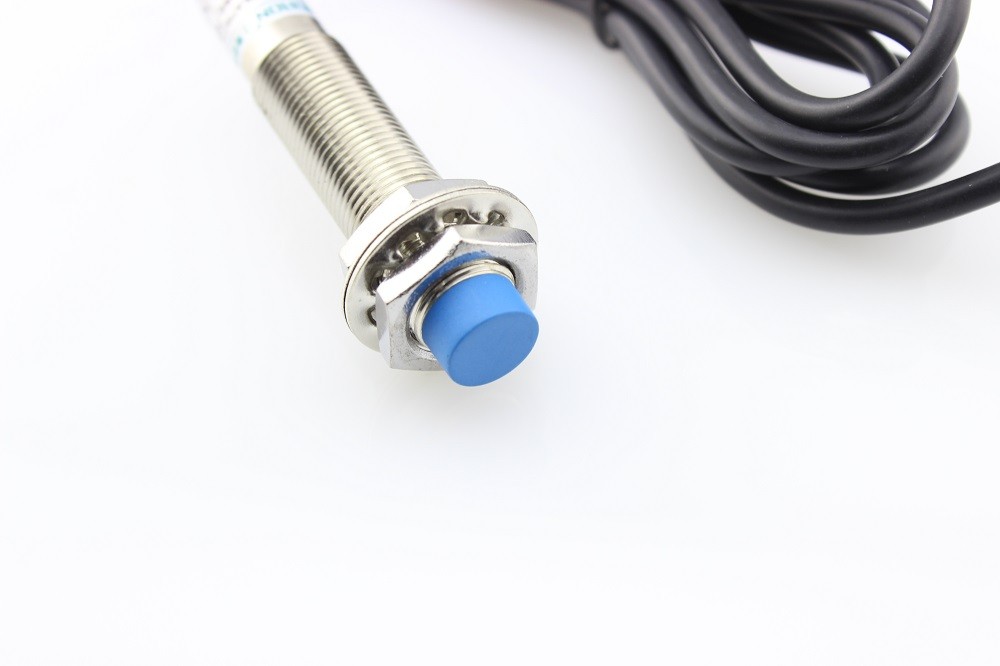

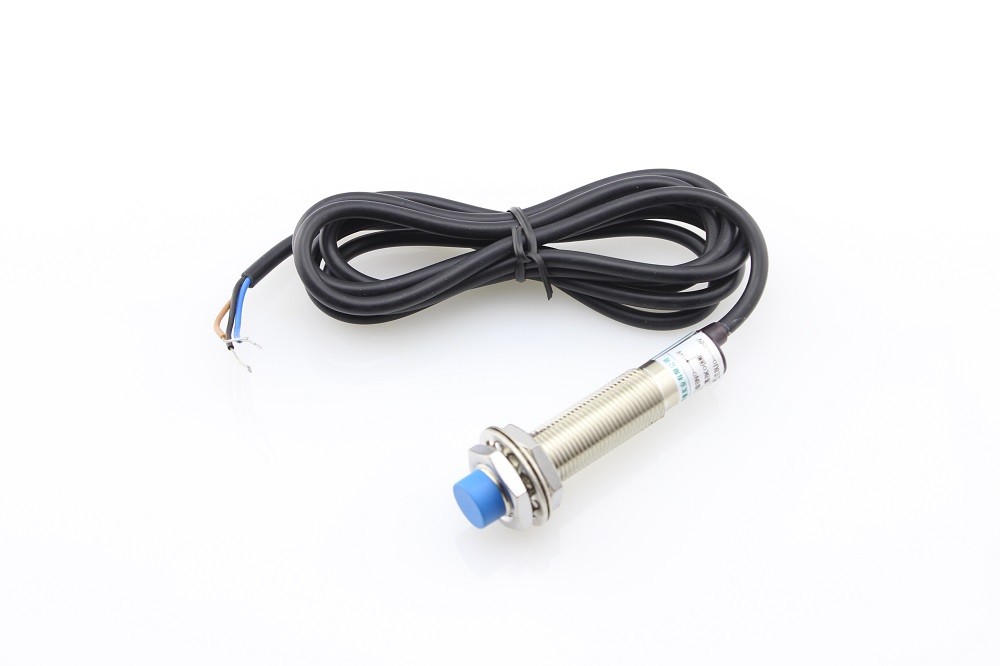

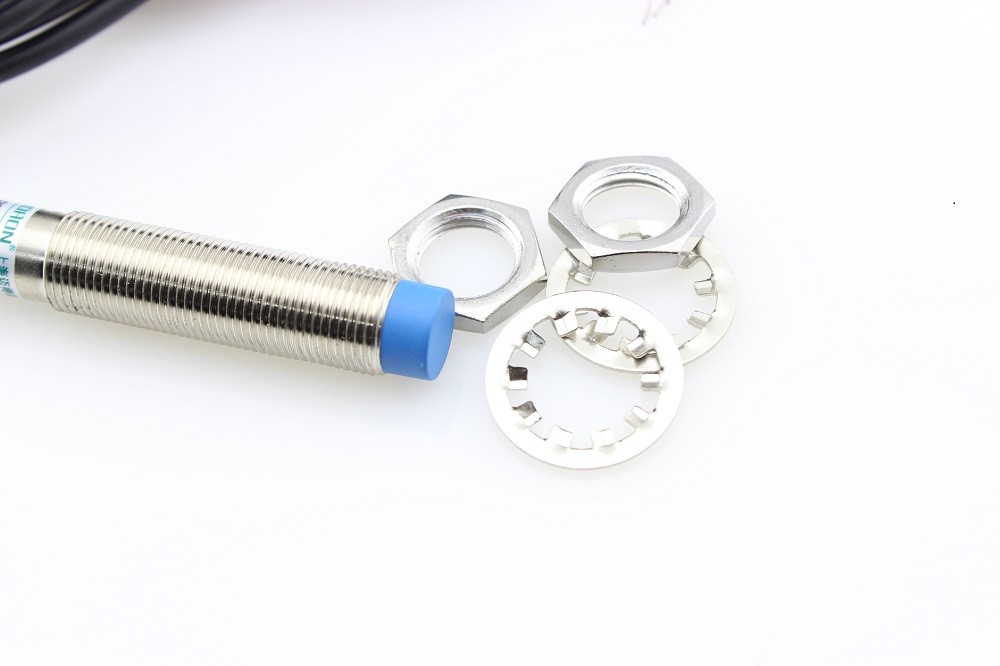

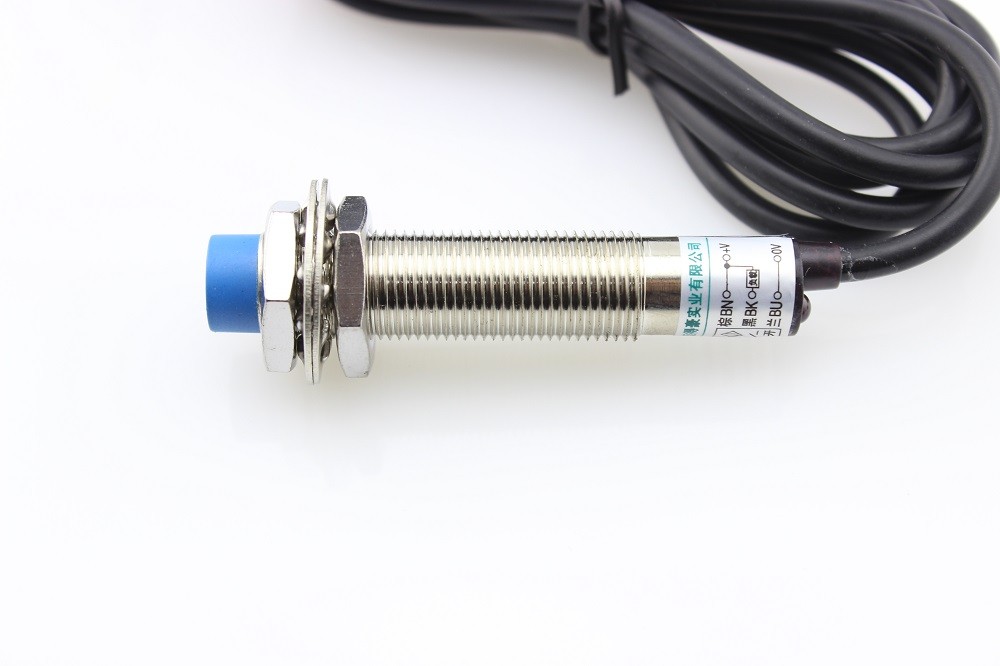

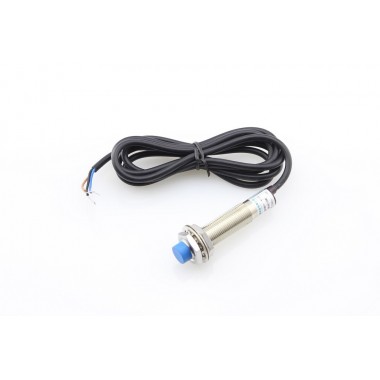

4MM Inductive Metal Proximity Sensor
Sensor de proximidad inductivo.
COD: ESPM0409IP
Peso: 0.025 Kg
Disponibilidad: Sin Stock
ARS 14847.00
El producto no está disponible para la venta en este momento
Características
Description
Metal Proximity Sensor, which is also called non-contact proximity switch, it is composed of generator and shaping amplifier oscillator vibration in the switch after induction head, and produces an alternating magnetic field when the metal body detected.
This Inductive Proximity Sensor has high sensitivity, fast frequency response, high repeat positioning accuracy and also stability and reliable, it can detects metal components in 0~4mm distance, and is widely used in modern industry, such as machinery, metallurgy, transportation, electric power, military industry and so on.
This Inductive Proximity Sensor has high sensitivity, fast frequency response, high repeat positioning accuracy and also stability and reliable, it can detects metal components in 0~4mm distance, and is widely used in modern industry, such as machinery, metallurgy, transportation, electric power, military industry and so on.
Specification
- Working Voltage:DC 5~36V;
- Probe Demension: 12mm diameter;
- Sensoring Distance: 0~4mm
- the output signal: Low
Usage
- Color Brown VCC; Color Blue GND; Color Black Output Signal;
