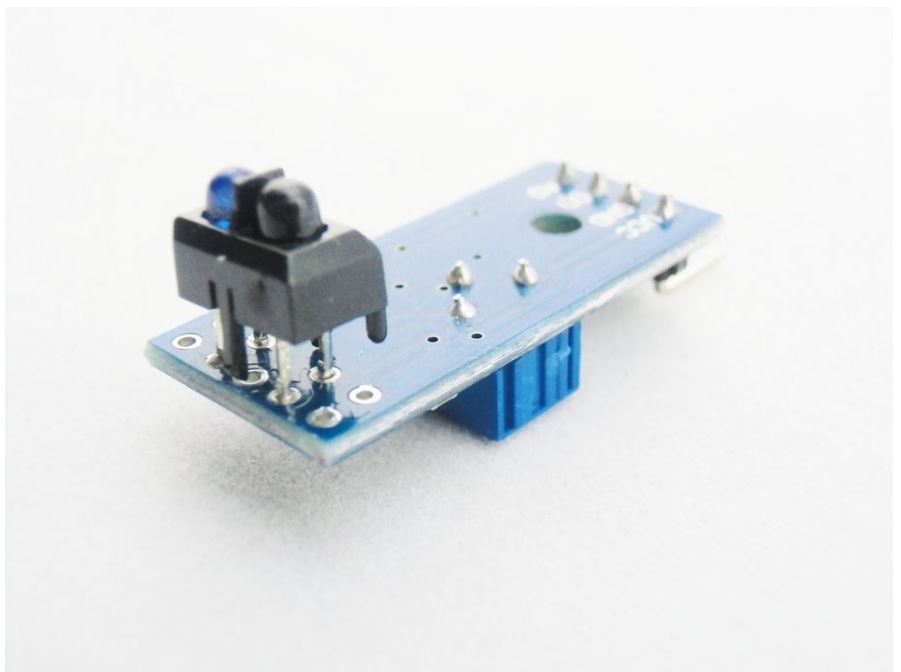

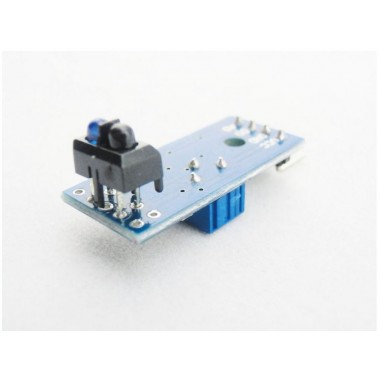

IR Reflective Sensor - TCRT5000

IR Reflective Sensor - TCRT5000

Sensor reflectivo infrarrojo.

COD: ESPS15000S

Peso: 0.005 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 2739.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

This IR reflective sensor utilizes a TCRT5000. It emits IR and then detects if it receives the echo. This sensor is often used in line following robots, auto data logging on utility meters, because this module can sense if a surface is white or black.

The measuring distance range from 1mm to 8mm, and the central point is about 2.5mm. There is also an on-board potentiometer to adjust the sensitivity.

The infrared diode will emmitting the infrared continutelly when the module connect to the power, when the emitted infrared light has not been reflected or the strength is not big enough,the triode will in the off state, at this time, D0 output logic LOW and the signal indicate LED off.

Application Idea

  • Rainfall detecting
  • Liquid leakage
  • Tank overflow detector

Features

  • Supply Voltage: 3.3V~5V
  • Detect distance: 1mm-8mm
  • Digital Outputs HIGH when objects detected
  • On-board indicator LED to show the results
  • On-board potentiometer to adjust the sensitivity
  • On-board LM393 chip
