35:1 Mini Metal Gearmotor

35:1 Mini Metal Gearmotor

Motoreductor de relación 35:1, 6V, 350 RPM.

COD: P001091

Peso: 0.023 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 31360.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

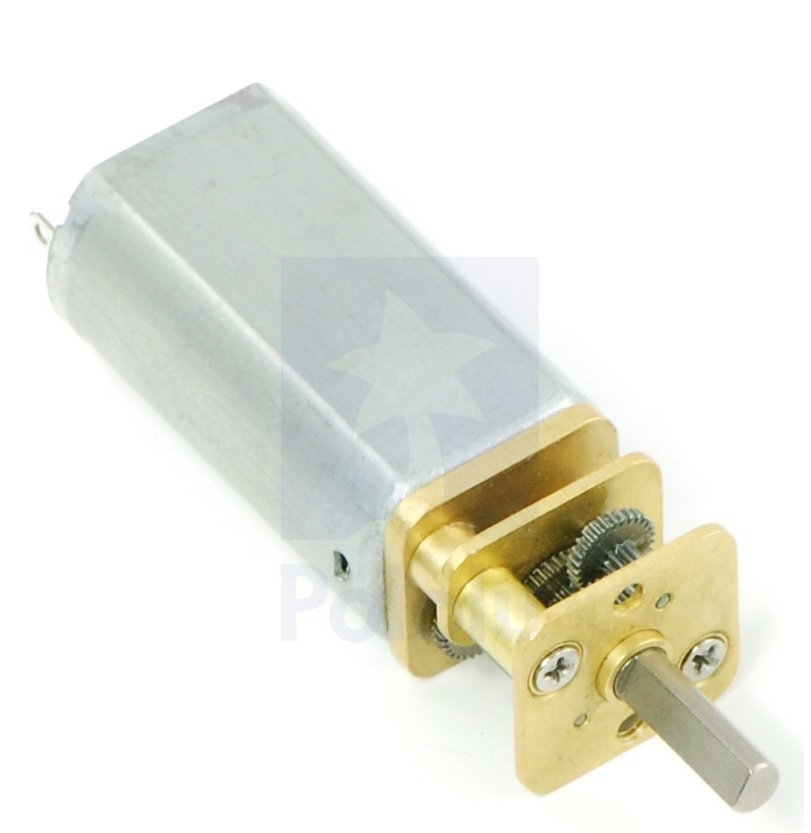

This gearmotor is a compact (1.50" x 0.59" x 0.47") brushed DC motor with 35:1 metal gearbox. These units have a 0.365"-long, 3 mm-diameter D-shaped output shaft that matches the micro metal gearmotor output shafts.

Key specs at 6 V: 350 RPM and 70 mA free-run, 20 oz-in (1.4 kg-cm) and 1.5 A stall.

Gearmotor Dimensions:

This brushed DC motor has a long (0.365" or 9.27 mm, not 8mm as shown in the drawing below), 3 mm-diameter D-shaped metal output shaft that matches our assortment of Pololu wheels and the Solarbotics RW2 rubber wheel. Alternatively, you can use the Pololu universal mounting hub to mount custom wheels and mechanism to the micro metal gearmotor’s output shaft, and you can use our 12mm hex wheel adapterto use this motor with many common hobby RC wheels.

The brass faceplate has two mounting holes threaded for M2 screws (2 mm diameter, 0.4 mm thread pitch). This gearmotor works with our 15.5D mm metal gearmotor brackets.

Note: this gearmotor is not compatible with our Sanyo-style micro gearmotor mounting brackets (products 989 and 1089).

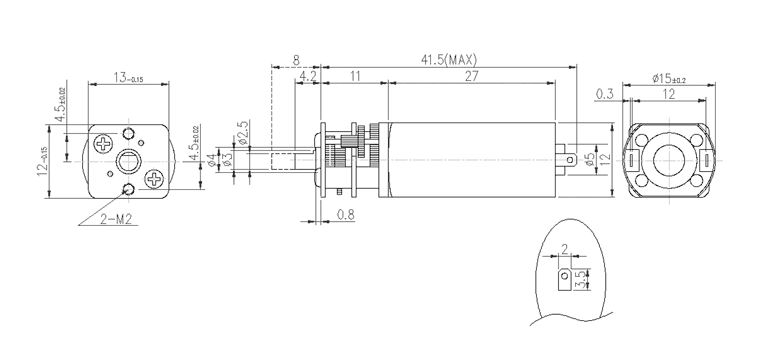

35:1 mini metal gearmotor dimensions (units in mm).
