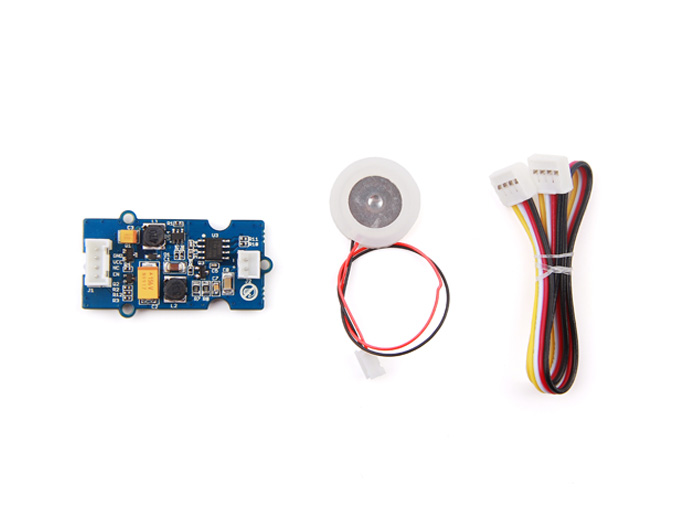

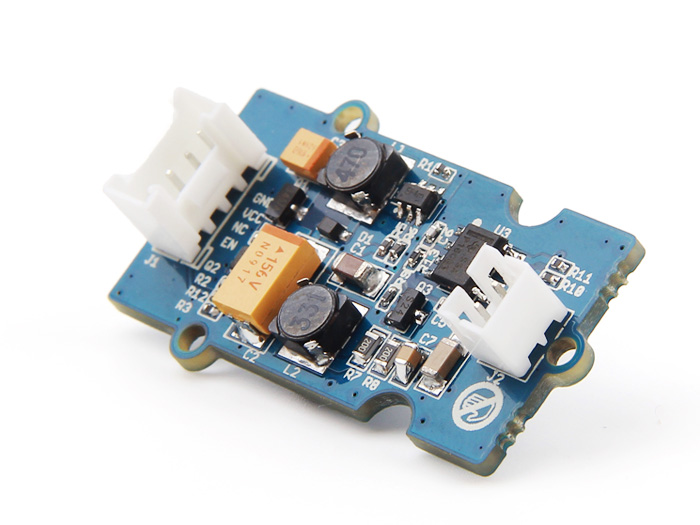

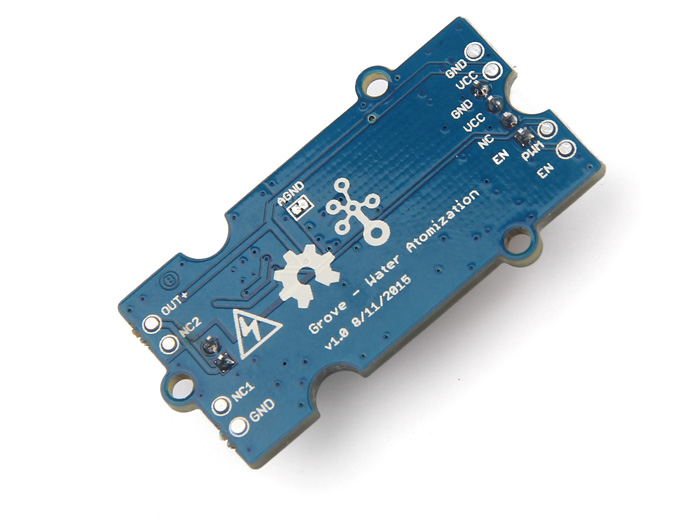

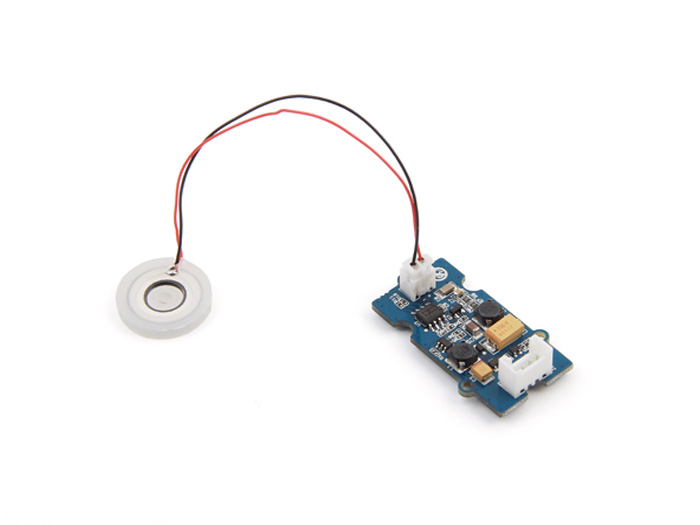

Grove - Water Atomization v1.0
Atomizador/humidificador ultrasónico!
COD: SE101020090
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 29052.00
El producto no está disponible para la venta en este momento
Características
Grove - Water Atomization is a perfect module for you to develop an atomizer or an atomizer module in your applications easily. With just a few simple steps, you can prototype an atomizer. It has Grove interface which makes it easy to be integrated into plenty of applications. A humidifier is a basic device it can be built with, you can develop more advanced and interesting projects with digital scent technology and any other situations in which atomization required.
Features:
- Heated with ultrasound.
- Easy to prototype.
- Well applied to vast projects.
- For various interesting, smart and fashionable applications.
Application ideas:

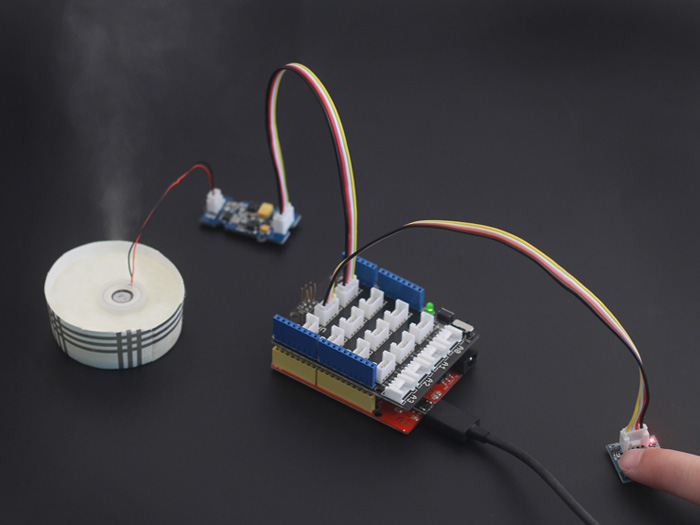

- Humidifier.
- Scent emitter in different situations.
- For smart-house applications.
Specification:
|
Operating voltage
|
5.0V(DC) |
| ripple(at Max power) | ≤100 mV |
| Max power | 2W |
| peak output voltage | 65±5V |
| Operating frequency | 105±5kHz |
| Chip | ETA1617?NE555 |
Documents:
