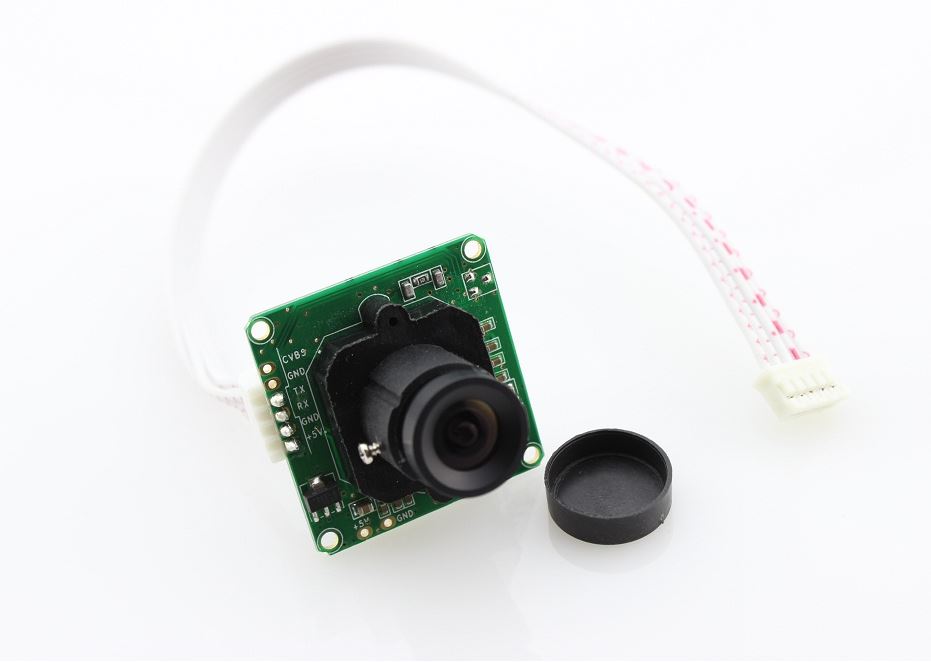

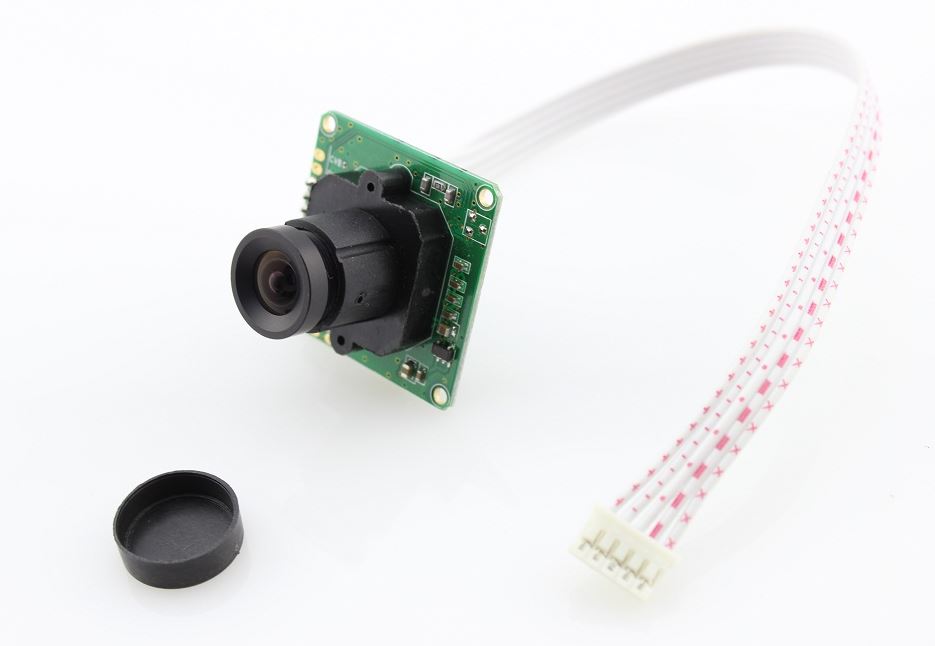

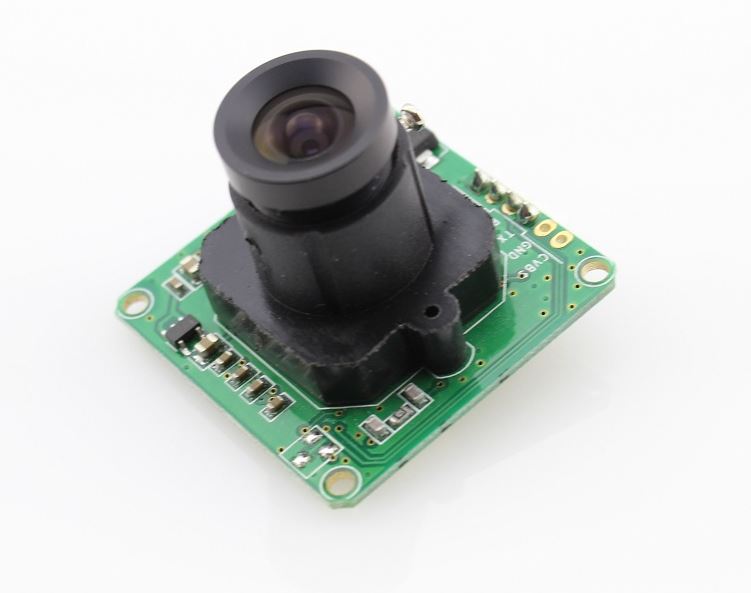

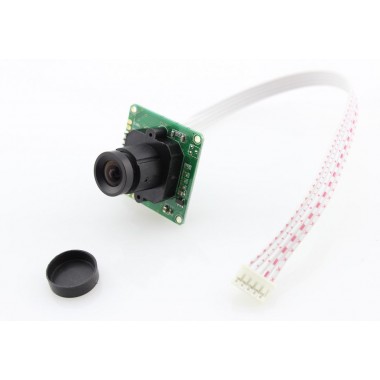

Serial JPG Camera
Camara color JPEG (640x480) para PC y MCU. Posee salida UART con niveles TTL.
COD: ESOD03010S
Peso: 0.025 Kg
Disponibilidad: Sin Stock
ARS 74106.00
El producto no está disponible para la venta en este momento
Características
Description

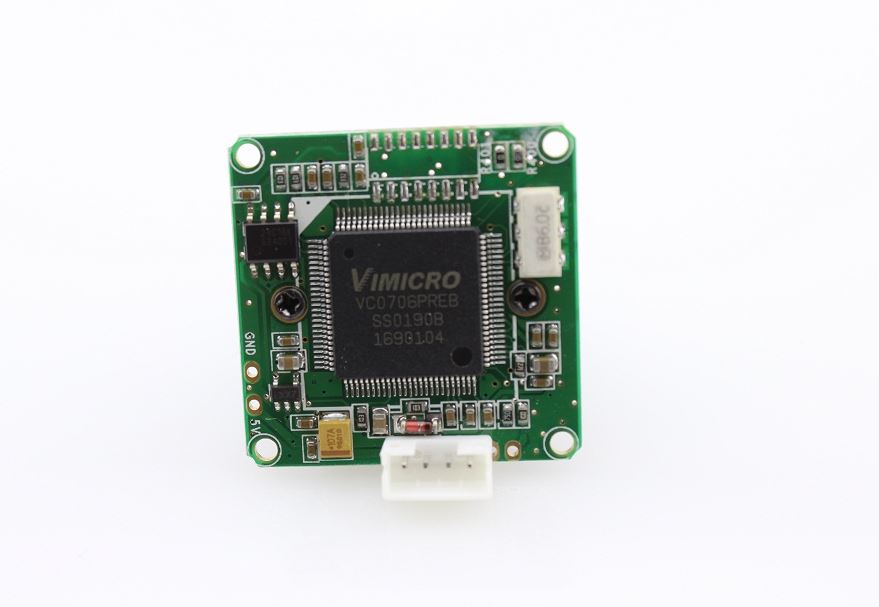

This Serial Camera is a JPEG color camera module easy for PC& MCU use.It has integrated image processing DSP to generate 320*240 or 640*480 JPEG image without thumbnail information, captured picture will be stored in internal buffer and transferred via UART port. The UART Can be configued to TTL or CMOS by hardware.
Features
- Default baud rate of serial port is 38400
- 640x480/320x240(default) resolution
- JPEG compressed image without Thumbnail Information
- 5v power supply
- Controlled by UART protocol
Package list
- Serial JPG camera x1
- cable x1
serialcameral_democode__1_.zip (5 Kb)
