ODROID-XU4
Esta potente placa cuenta con un CPU Multiproceso Octa-Core, 2GB de RAM y 2 puertos USB 3.0, entre otras características (no incluye la fuente de 5V4A )
COD: OD007A
Peso: 0.100 Kg
Disponibilidad: Sin Stock
ARS 269366.01
El producto no está disponible para la venta en este momento
Características

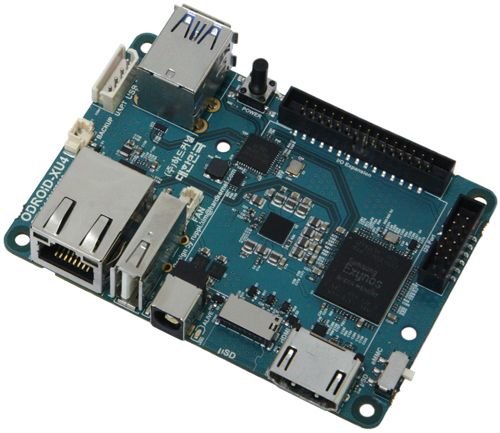

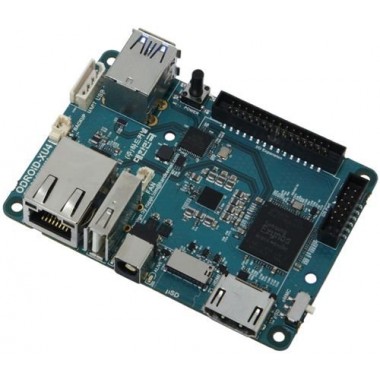

Big power in a small package! The ODROID-XU4 packs an octa-core Heterogeneous Multi-Processing ARM CPU, 2GB of high-speed RAM, 2x full-sized USB3.0 ports, Gigabit Ethernet and more into one great solution!
The ODROID-XU4 is a new generation of single board computer with hardware that's more powerful, more energy-efficient and has a smaller form factor! Built on open-source software, the XU4 supports various flavors of Linux including the latest Ubuntu 15.04 running MATE desktop and Android 4.4 KitKat and 5.0 Lollipop. With the high-performance combination of eMMC 5.0, USB3.0 and Gigabit Ethernet, the ODROID-XU4 boasts amazing data transfer speeds - speeds that are a necessity with many of today's computing tasks like intensive 3D applications, streaming, browsing and gaming.
KEY FEATURES
- Samsung Exynos5422 Cortex™-A15 2Ghz and Cortex™-A7 Octa core CPUs
- Mali-T628 MP6 (OpenGL ES 3.0/2.0/1.1 and OpenCL 1.1 Full profile)
- 2GB LPDDR3 RAM PoP stacked
- eMMC5.0 HS400 Flash Storage
- 2 x USB 3.0 Host, 1 x USB 2.0 Host
- Gigabit Ethernet port
- HDMI 1.4a for display
- Size: ~82 x 58 x 22 mm (including heat sink)
- Fully software compatible with ODROID-XU3 and XU3-Lite
- Low cost, small form factor, high performance!
INCLUDES
- ODROID-XU4 Board
- Active cooling fan (mounted)
REQUIRES
- microSD or eMMC module to contain the operating system
RECOMMENDED
- Full-sized HDMI cable (to connect to a display)
- Keyboard/mouse
- RTC battery
- Case
- 5V4A PSU (5.5mm barrel connector)
ADDITIONAL ACCESSORIES
DISCUSS
LINKS
Official
- Technical Details -http://www.hardkernel.com/main/products/prdt_info.php?g_code=G143452239825&tab_idx=2
- Wiki - http://odroid.com/dokuwiki/doku.php?id=en:odroid-xu4
- Schematics - http://dn.odroid.com/5422/ODROID-XU3/Schematics/XU4_MAIN_REV0.1.pdf
- PCB Mechanical Drawings (AutoCAD format) -http://dn.odroid.com/homebackup/XU4_MAIN_REV0.1_DXF.DXF
- XU4 3D Model generated with caliper measurements (Solidworks format) - https://grabcad.com/library/odroid-xu4-mockup-1
- Official Case Design File -http://www.hardkernel.com/main/products/prdt_info.php?g_code=G143522987777
- Mikronauts Preview - http://www.mikronauts.com/hardkernel/hardkernel-odroid-xu4-preview/
- Mikronauts Review - http://www.mikronauts.com/hardkernel/hardkernel-odroid-xu4-review/
- CNX Software Review - http://www.cnx-software.com/2015/07/14/odroid-xu4-board-is-a-smaller-and-cheaper-version-of-odroid-xu3/
- Unlockpwd.com Review - http://www.unlockpwd.com/odroid-xu4-dev-board-official-to-74-but-it-is-very-similar-to-odroid-xu3/
