ODROID-Show 2

ODROID-Show 2

Display compatible con Arduino, pudiéndose controlar a través de una PC mediante USB.

COD: OD0086

Peso: 0.100 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 134446.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

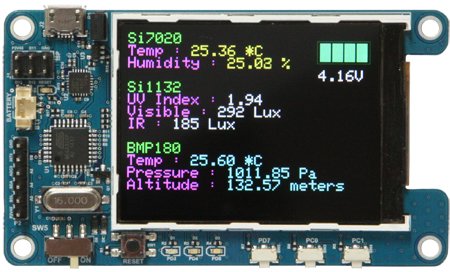

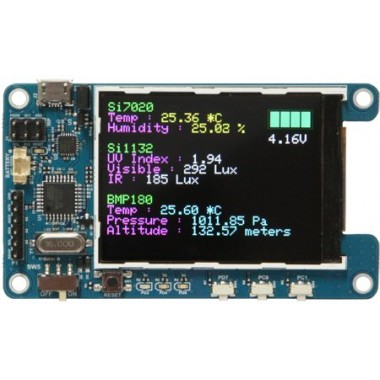

Despite being designed with the form-factor of the U3 in mind, the ODROID-Show 2 is an Arduino-compatible display that can be connected to and controlled by any computer with a USB port.

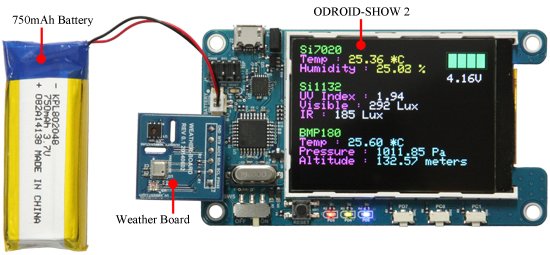

Use it as a portable weather station by adding the 750mAh Battery and Weather Board.

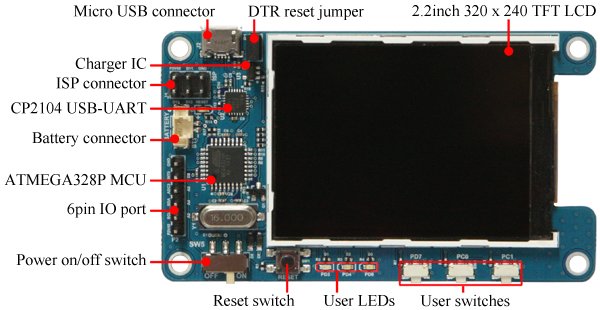

KEY FEATURES

  • 2.2" TFT LCD 320x240 (64K colors)
  • ATmega328P microcontroller on board
  • 3 user-programmable LEDs
  • 3 user-programmable switches
  • USB control interface (Micro-USB plug)
  • Control display with VT100/ANSI-style commands
  • Works with Mac, Linux, Windows, servers and more
  • Identical footprint as the U3

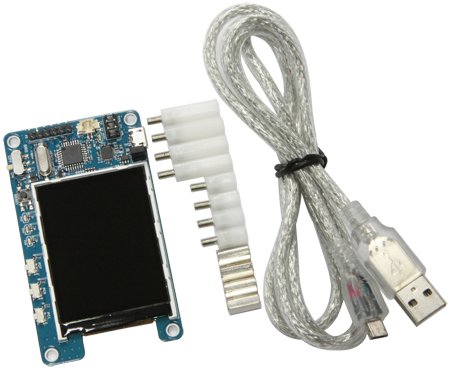

  • Comes with spacers for stacking on top of the U3
  • I2C/ADC/GPIO pins for further expansion
  • Compatible with the ODROID Weather Board
  • Can be powered by batteries, including standard alkaline - has a connector for ODROID's 750mAh battery built-in
  • Low power consumption
