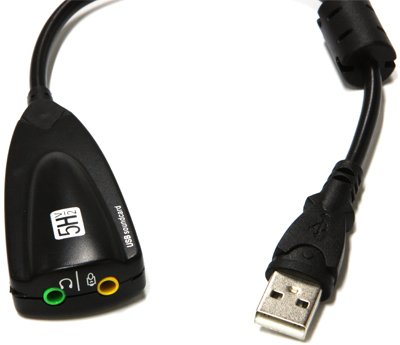

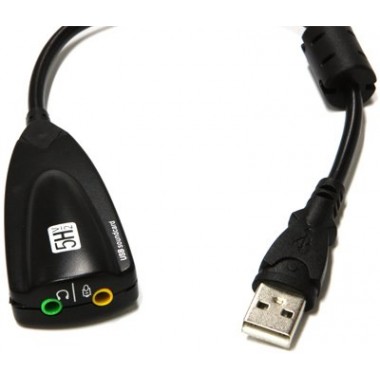

USB Audio Adapter
Adaptador de audio USB
COD: OD0069
Peso: 0.050 Kg
Disponibilidad: En Stock
ARS 26998.00
El producto no está disponible para la venta en este momento
Características
This USB Audio Adapter should work with any system, but requires configuration through ALSA or other sound drivers.

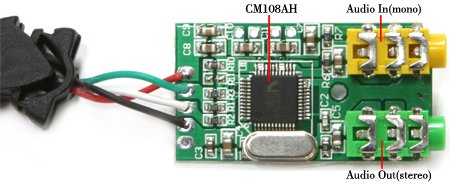

The CM108AH is a highly integrated single chip USB audio solution. All essential analog modules are embedded in the CM108AH, including dual DAC and headphone amplifier, ADC, microphone booster, PLL, regulator and USB tranceiver.
KEY FEATURES
- USB 2.0 full-speed (12Mbps) specification
- USB audio device class specification 1.0
- USB bus-powered mode
- USB-Type A connector
- Stereo output jack (3.5mm)
- Mono microphone input jack (3.5mm)
- 60 x 30 x 15mm approximate dimensions
- 130mm cable length
- 33g weight
NOTES
- Configuring ALSA on Ubuntu to use the USB Audio Adapter can be found on ODROID Magazine June 2015 issue, page 37. (Should be similar for Debian, Raspbian, Bananian, etc.)
COMPATIBILITY
- ODROID-C1, XU4 and other SBCs and legacy systems. Will require configuration in the host OS.
