Banana Pro

Versión mejorada de Banana Pi! Cuenta con Ethernet, WiFi, micrófono, IR y mucho mas!

COD: OD0110L

Peso: 0.100 Kg

Disponibilidad: Sin Stock

ARS 177248.01

El producto no está disponible para la venta en este momento

Características

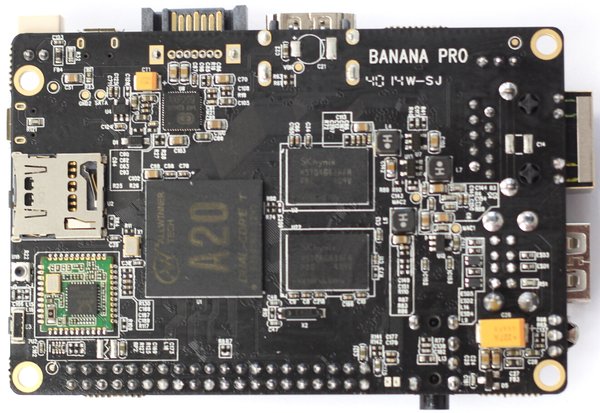

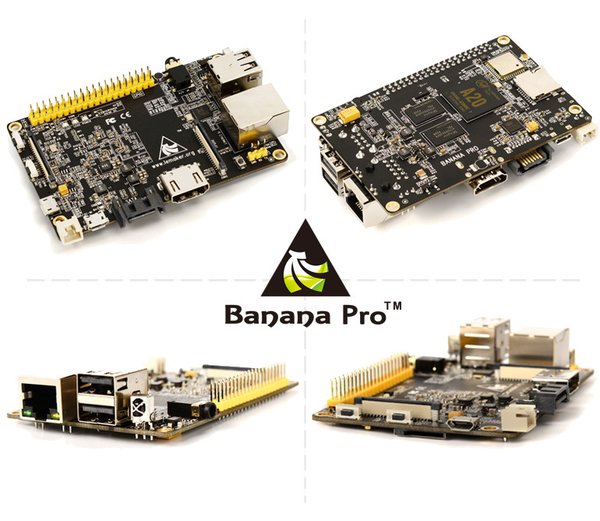

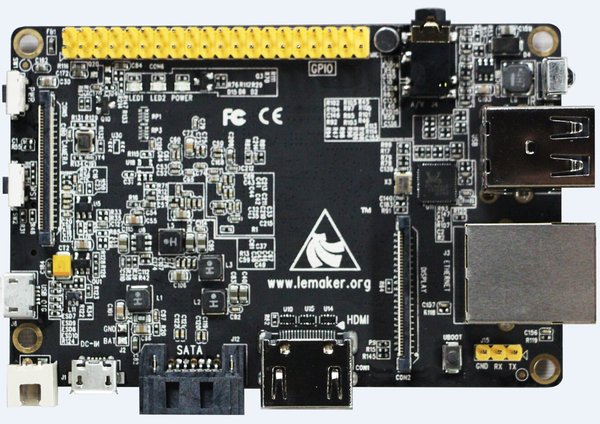

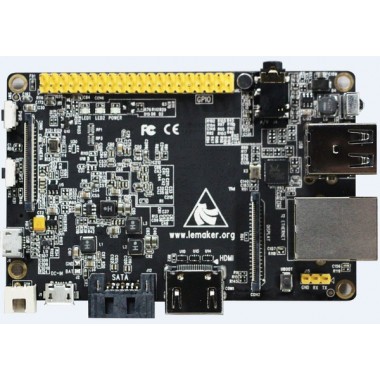

The Banana Pro is an upgraded version of the Banana Pi. It's an inexpensive, versatile board for those looking to get great value for their money, or just looking for a board with as many features as possible. With features such as IR capability, a built-in mic and SATA port, you're sure to find the Banana Pro a useful SBC for all of your computing needs!

The Banana Pro is great for things such as a file-server, a set-top TV box, web browsing and email, as well as more complex activities such as development.

Banana Pro is compatible with many Linux-based operating system and has many distributions specially developed for Banana Pi Hardware. Some of these distributions include Lubuntu, Android, Debian, Bananian, Berryboot, OpenSuse, Scratch, Fedora, Gentoo, Open MediaVault, OpenWRT. Banana Pro also supports BSD. Checkhttp://www.lemaker.org/resources/9-38/image_files.html for some of the available OS images.

Banana Pro has a wide set of applications including building a low-cost computer, server functionality (multimedia, Minecraft, etc.), video game emulators, home security camera systems and more.

Banana Pro is an excellent educational learning tool that can be used for many projects including building multimedia projects, robots, Arduino applications and computer programming with many popular programming languages available including Scratch (a drag and drop programming language for people beginning to learn how to code).

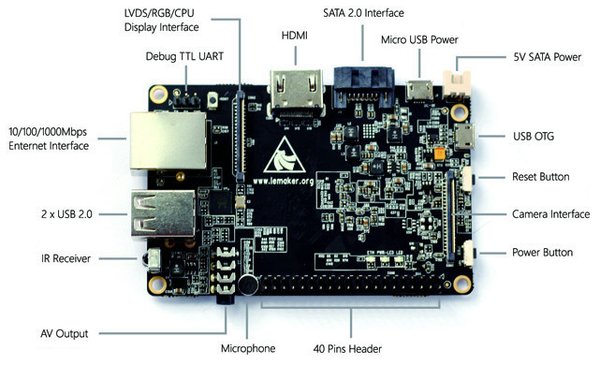

KEY FEATURES

SoC: Allwinner A20 (ARM Cortex-A7 dual-core, 1GHz, Maili400MP2 GPU)
Memory: 1GB DDR3 DRAM
Storage:
Boots from micro SD card slot
Expandable storage via SATA 2.0
Video Output:
HDMI 1.4 (Type A - full)
Composite (PAL and NTSC via 3.5mm TRRS jack shared with audio out)
LVDS/RGB/CPU display interface (DSI) for raw LCD panels
11 HDMI resolutions from 640x480 to 1920x1080
Audio I/O:
Onboard microphone
3.5mm stereo out
HDMI out
Connectivity:
Gigabit Ethernet (10/100/1000Mbps)
On-board WiFi 802.11 b/g/n
USB Ports:
2x USB 2.0
1x micro-USB (OTG Capable)
1x micro-USB (for power)
Misc.:
40-pin headers
28-pin GPIO (UART, I2C, SPI, PWM, CAN, I2S, SPDIF, LRADC, ADC, LINE-IN, FM-IN, HP-IN)
camera connector
3x buttons (Power, Reset, Uboot)
Power status LED
User defined LED1 (green)
User defined LED2 (blue)
IR receiver
Dimensions + Weight: 92mm x 60mm, 45g
OS: Lubuntu, Android, Debian, Bananian, Berryboot, OpenSuse, Scratch, Fedora, Gentoo, Open MediaVault, OpenWRT, and more. See http://www.lemaker.org/resources/9-38/image_files.html for some OS image downloads.

NOT INCLUDED

SD Card (required to boot)
micro-USB power supply (required to boot)
HDMI/Composite Video Cable (required for video output, not required if run headless)
Case (optional)
